【Technical Column】Gray vs. Rainbow Flat Cables: Key Q&A for Engineers

In the professional fields of electronic connectors and Wire Harness Assembly, Flat Cables (also known as Ribbon Cables) are widely utilized in industrial control systems, medical instruments, and consumer electronics. Their popularity stems from their excellent space-saving capabilities, compatibility with mass IDC (Insulation Displacement Connector) termination, and structural stability.

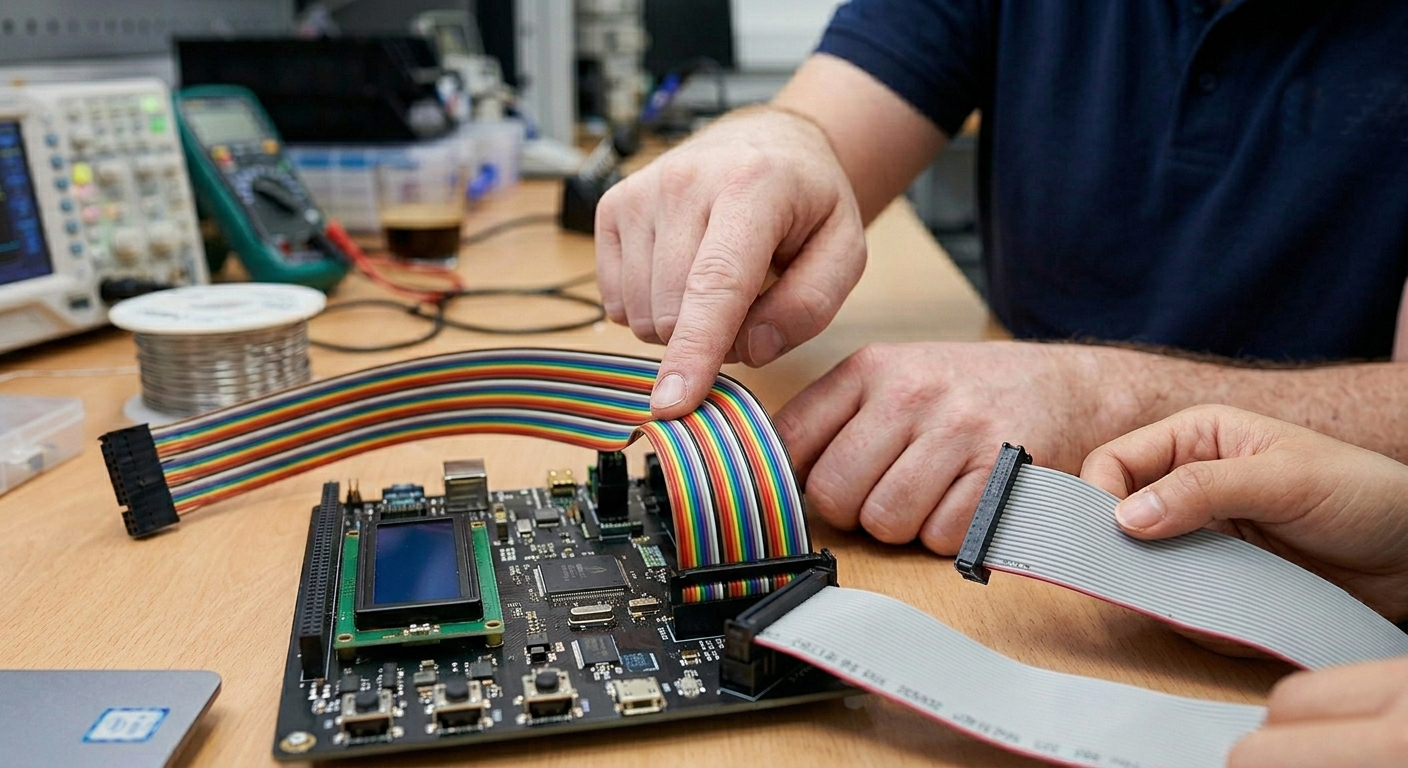

However, during the early stages of hardware design, engineers often face a seemingly simple yet critical choice: Should I use Gray or Rainbow Flat Cables? This decision impacts not only aesthetics but also production efficiency and maintenance convenience. This article provides an in-depth analysis of the differences between the two from the perspective of processing characteristics and application scenarios.

I. Structure and Visual Identification

Q: Is there a fundamental difference in the physical structure or electrical properties between these two cables?

A: The basic construction—including conductors and insulation materials—is typically identical. Both usually employ Tinned Copper as the conductor to ensure excellent solderability and oxidation resistance, encased in UL-certified PVC insulation. The primary difference lies solely in the visual identification system:

￭ Gray Flat Cable: The entire cable is the industry-standard gray, with a distinct Red Stripe on Pin 1 to guide the orientation during IDC pressing.

￭ Rainbow Flat Cable: Follows international color coding standards (e.g., Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White, Black) in a repeating cycle. Each conductor is a different color, making it easy to track individual signals.

II. Maintenance Efficiency vs. Error-Proofing

Q: Why do experts prefer Rainbow Flat Cables for precision equipment maintenance or complex wiring?

A: The key lies in Poka-yoke (Error-proofing) and maintenance efficiency. For simple point-to-point connections, gray cables are sufficient. However, if the application involves point-to-multipoint connections or requires "zipping" (tearing) the cable to connect individual wires to different sensors, switches, or PCB contact points, rainbow cables allow technicians to identify signal definitions instantly by color (e.g., Red for VCC, Black for GND, Green for Data). This significantly reduces the risk of circuit damage caused by cross-wiring.

III. Industrial Mainstream and Automated Production

Q: Why does the Gray Flat Cable remain the mainstream choice in industrial-grade applications?

A: This is primarily due to cost-efficiency, visual tidiness, and compatibility with automation:

  1. Economy and Supply Stability: In mass production, the extrusion cost and scrap rate for single-color PVC are slightly lower than multi-color processes. For companies with high-frequency procurement, this optimizes the BOM (Bill of Materials) cost.
  2. Professionalism and Standardized Aesthetics: Inside large industrial cabinets or servers, excessive colored wiring can create visual clutter. Gray cables provide a cleaner, more standardized appearance that aligns with the professional aesthetic of industrial equipment.
  3. Automated Termination Precision: High-end fully automatic IDC machines use optical sensors to locate the "Red Edge" of Pin 1. The high contrast of gray cables ensures stable identification and maintains high production yields.



IV. Technical Constraints: Extreme Environments and High-Frequency Transmission

Q: What should be considered when choosing flat cables for special environments (e.g., high-frequency or frequent bending)?

A: In these cases, the focus shifts from color to physical specifications and environmental durability:

￭ Signal Integrity: For high-frequency data transmission, pay close attention to Impedance Control. It may be necessary to select Shielded Flat Cables with aluminum foil layers to meet EMC (Electromagnetic Compatibility) standards.

￭ Dynamic Flexing Requirements: If the cable is used in dynamic mechanisms like printer heads or robotic arms, choose high-flex specifications with a higher strand count and more flexible jackets (such as Teflon/PTFE), rather than standard PVC, to prevent metal fatigue and wire breakage.

V. Pre-Ordering Checklist: Flat Cable Specifications

Q: How do I choose the most suitable flat cable specifications for my project?

A: Before placing an order with a processing plant, engineers should verify the following core parameters:

  1. Pitch: Common sizes include 1.27mm (matching 2.54mm connectors), 1.0mm, or ultra-fine 0.635mm.

  2. Conductor Gauge (AWG): Usually 28AWG or 30AWG; ensure the current-carrying capacity meets your design requirements.

  3. Certifications: Confirm compliance with RoHS 2.0 / REACH standards and specific voltage ratings (e.g., 300V).

  4. Length and Connector Type: Confirm the number of pins (e.g., 10P, 40P) and whether the IDC headers require strain relief or metal clips for reinforcement.

Integrity and expertise determine the stability of every connection.

Whether you choose the minimalist Gray Flat Cable or the easy-to-identify Rainbow Flat Cable, stable and high-quality processing remains the core of long-term equipment reliability.
