The Dilemma of Electronic Design: A Comprehensive Guide to FFC vs. FPC Technical Boundaries

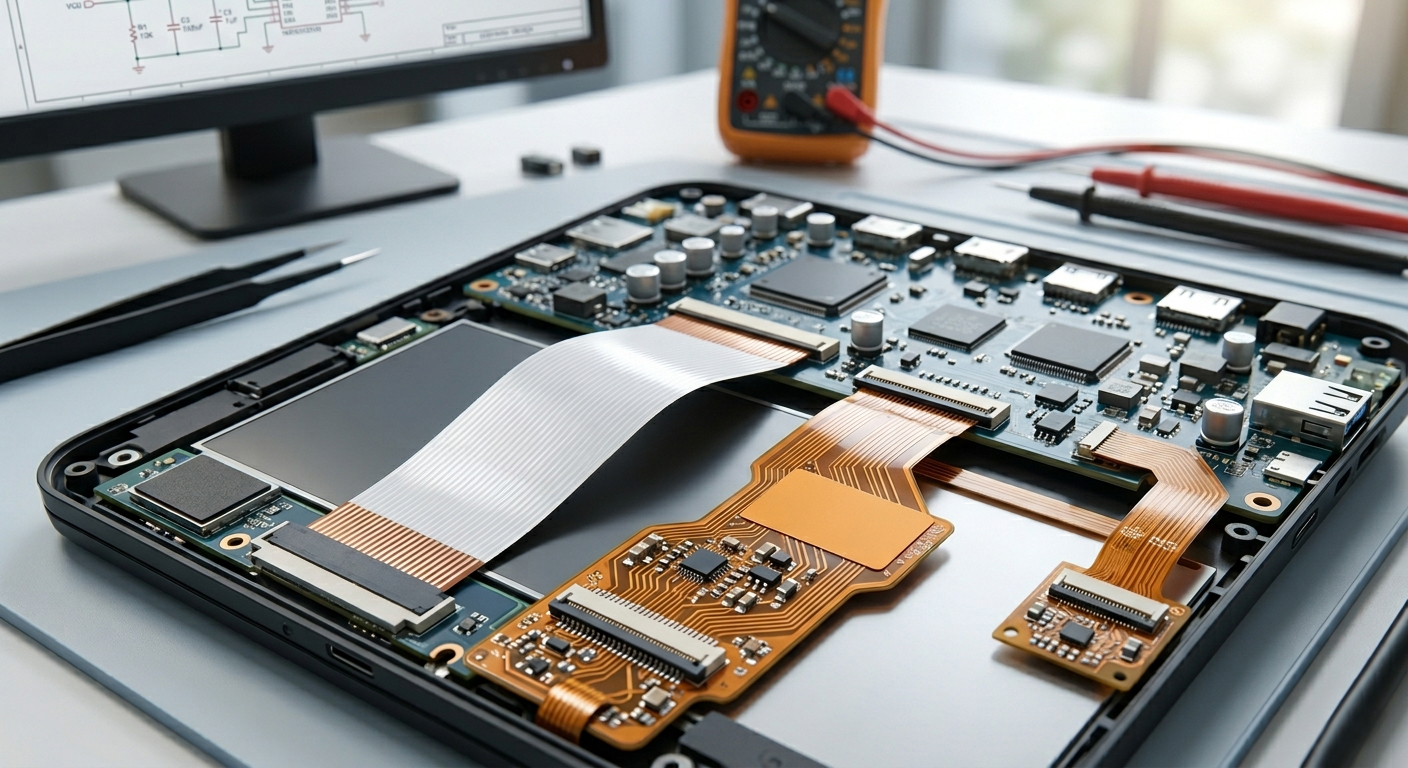

In the internal architecture of modern precision electronics, FFC (Flexible Flat Cable) and FPC (Flexible Printed Circuit) may look similar—both appearing as thin, flat ribbons—but their "souls"—namely their manufacturing logic and design philosophy—are worlds apart. This article provides a deep dive into the core differences to help you make precise decisions regarding component selection and cost control during hardware development.

I. The Essence of Manufacturing: Lamination vs. Precision Etching

This is the most fundamental technical distinction, determining the physical limits and application range of each:

1. FFC (Flexible Flat Cable): A "Sandwich" Process

   FFC production is like making a precision sandwich. It consists of flat copper foil conductors (usually tin-plated or gold-plated) sandwiched between two layers of insulating film (typically PET), bonded together using high temperature and pressure. Because it is a continuous roll-to-roll process, the wiring must be parallel and straight; it cannot accommodate non-linear routing during production.

2. FPC (Flexible Printed Circuit): A Flexible Circuit Carrier

   FPC is essentially a precision circuit board that can bend. It is made by laminating copper foil onto a Polyimide (PI) substrate and creating circuits through chemical etching. Think of it as a traditional rigid PCB that has been thinned to the extreme and made flexible.

II. Key Technical Indicators in Design

In practical engineering, these two differ significantly in spatial efficiency and signal performance:

A. Routing Complexity and Layout Flexibility

FFC: Restricted to parallel tracks. To turn corners or navigate 3D spaces, FFC must be physically folded manually. While simple, these folds can cause impedance mismatches in high-speed signals.

FPC: Offers high design freedom. Engineers can design arcs, serpentine traces, or right-angle routing. Crucially, SMT (Surface Mount Technology) can be performed directly on an FPC to mount resistors, capacitors, sensors, or ICs.

B. Spatial Utilization and Multilayer Stacking

FFC: Mostly single-layer. While it excels at long-distance transmission at a low cost, it cannot handle complex signal logic.

FPC: Can be designed as single-layer, double-layer, or even multilayer boards. In ultra-compact devices like smartphones or smartwatches, FPC enables complex signal cross-linking within extremely tight vertical spaces.

C. Mechanical Strength and Dynamic Durability

FFC: Though flexible, the bond between copper foil and film is relatively fragile. It has limited folding endurance and is generally recommended for static or low-frequency movement.

FPC: When using Rolled Annealed (RA) Copper, FPC offers exceptional dynamic flexibility. In foldable phone hinges, specialized FPC is mandatory to withstand hundreds of thousands of folds without signal degradation.

III. Cost-Benefit and Development Thresholds

Understanding the BOM (Bill of Materials) Cost structure is essential for Product Managers and Procurement Leads:

IV. Practical Application: How to Choose?

￭ Choose FFC when:

1. Budget-sensitive: E.g., home appliances, large TV internal wiring.

2. Point-to-point transmission: Connecting a motherboard to a hard drive, button board, or display driver.

3. Ample internal space: Allowing for cable width and physical folding.

￭ Choose FPC when:

1. Extreme space constraints: E.g., wearable heart rate sensors or micro-camera modules.

2. Functional integration: Needing to mount components directly onto the cable to combine transmission with circuitry.

3. High dynamic environments: Equipment with frequent bending or vibration (e.g., robotic arms or camera lens autofocus mechanisms).

Professional Q&A

Q1: Is FFC heat-resistant enough for automotive or industrial environments?

A: Traditional FFC uses PET, which resists ~85°C–105°C. For automotive or high-heat industrial use, you must specify high-heat resistant films or switch to FPC (PI substrate), which can withstand over 150°C.

Q2: Why is FPC better at solving EMI (Electromagnetic Interference) issues?

A: FPC allows for the easy integration of Ground Planes in multilayer designs or the application of conductive silver paste/aluminum foil shielding. While FFC can be shielded, its structural flexibility is lower, and its protection under high-frequency signals is less stable than FPC.

Q3: Which should I use for initial Prototyping?

A: If the circuit is not finalized, use FFC or jumper wires for functional verification. FPC requires high NRE costs, and any layout change requires a new production run. Transition to FPC once the spatial layout and circuit logic are frozen for miniaturization.

Summary: Finding the Golden Ratio of Performance and Cost

In short, FFC is a high-efficiency connector designed to solve long-distance, low-cost signal transmission. FPC is a flexible circuit carrier designed for extreme spatial layouts and electrical integration. For early-stage design, if the path is simple and the budget tight, FFC is your best bet. If your product involves dynamic movement, high-speed signals, or complex routing, FPC is the only way to drive your product toward the high-end market.
