Pluggable Terminal Blocks Connector

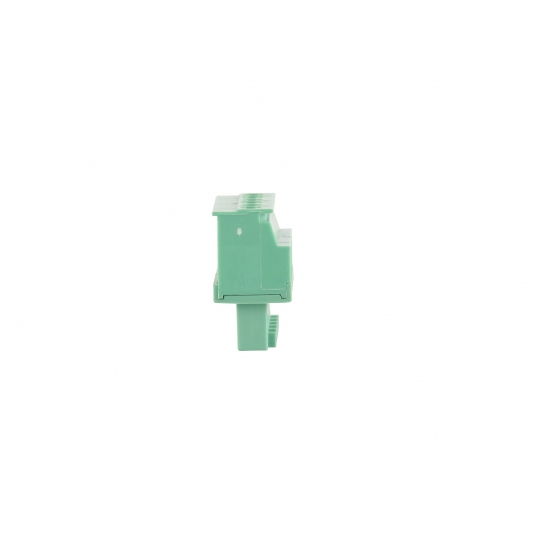

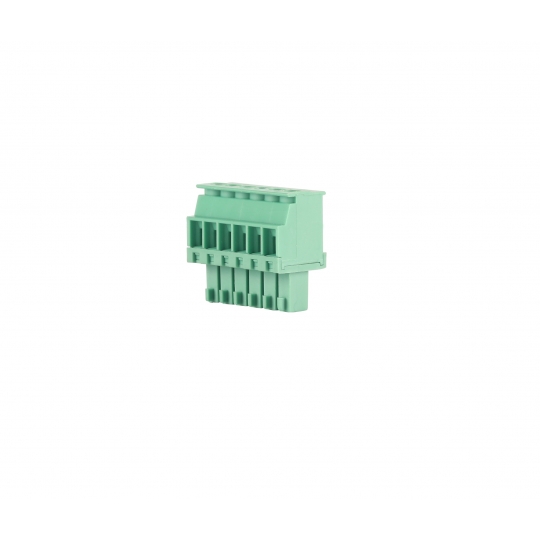

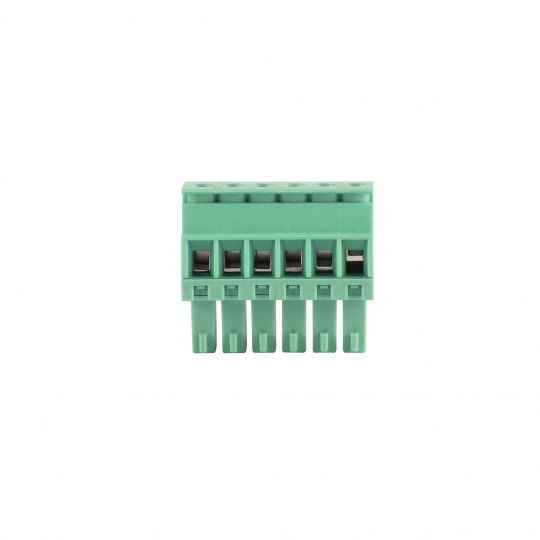

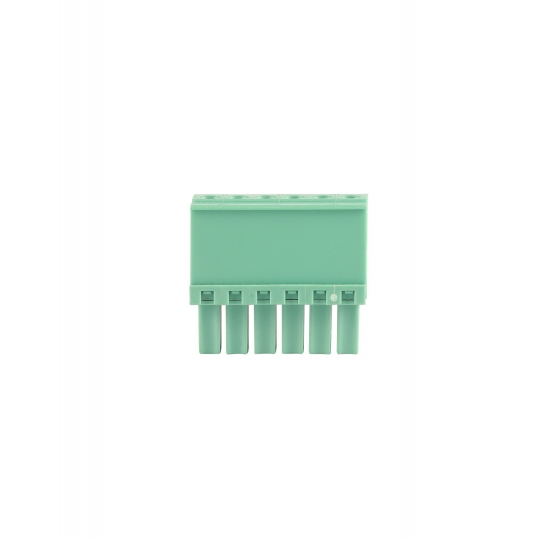

PH3.81mm/2P-24P Pluggable Terminal Blocks connector female
Detail
Rated:300V,8A
Dielectric strength:AC1500V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.2Nm(1.7Lb.in)
Wire Range:16~28AWG
Strip length:6~7mm
Temp.range:-40°C~+105°C
MAX Soldering:+260°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Phosphor Bronze,Tin plating
Clamp:Brass,Ni plating
Screw:M2.0,Steel,Zinc plating
