Pluggable Terminal Blocks Connector

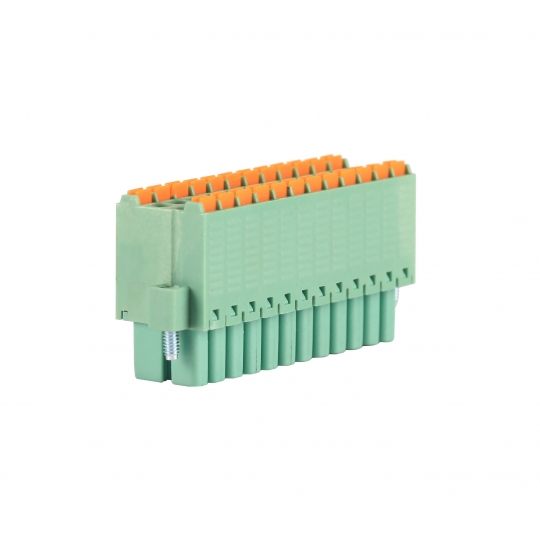

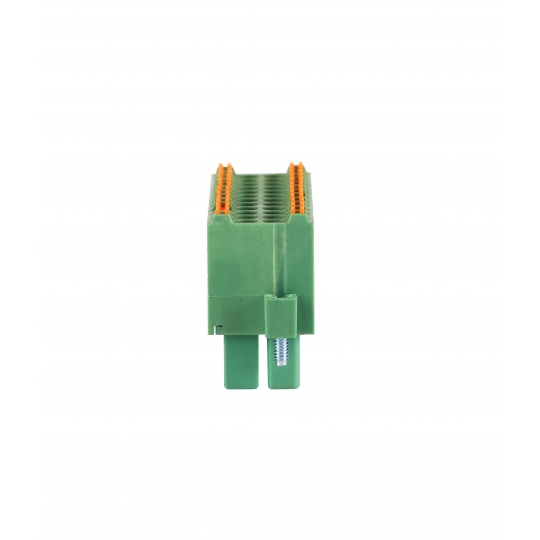

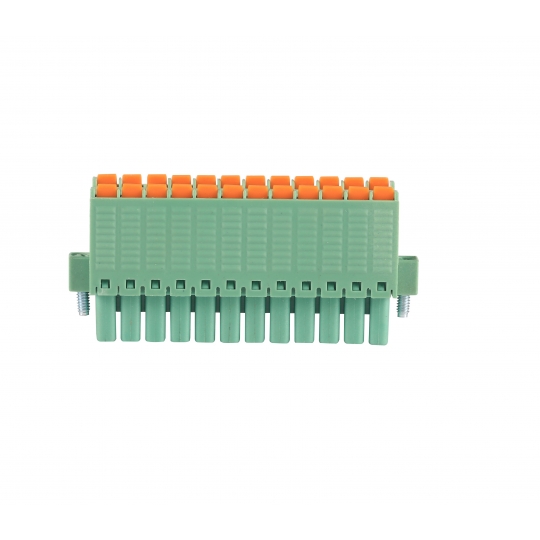

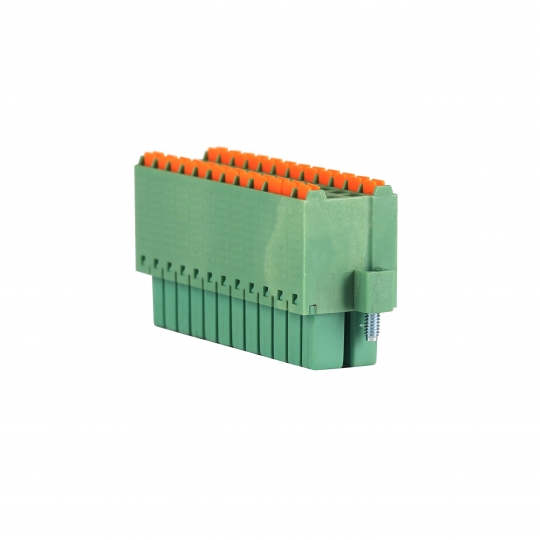

PH3.5mm/4P-48P Pluggable Terminal Blocks connector female
Detail
Rated:150V,8A
Dielectric strength:AC1500V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Wire Range:16~26AWG
Strip length:10mm
Temp.range:-40°C~+105°C
MAX Solderin:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Phosphor Bronze,Tin plating
Reed:Stainless seel
Button:POM,Color:Orange
Screw:M2.0,Steel,Zinc plating
