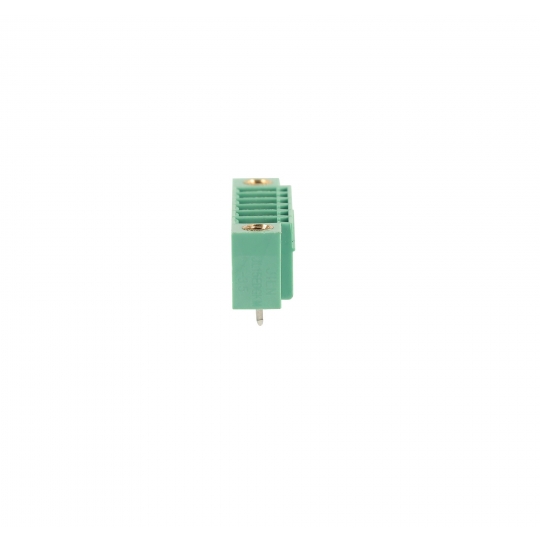

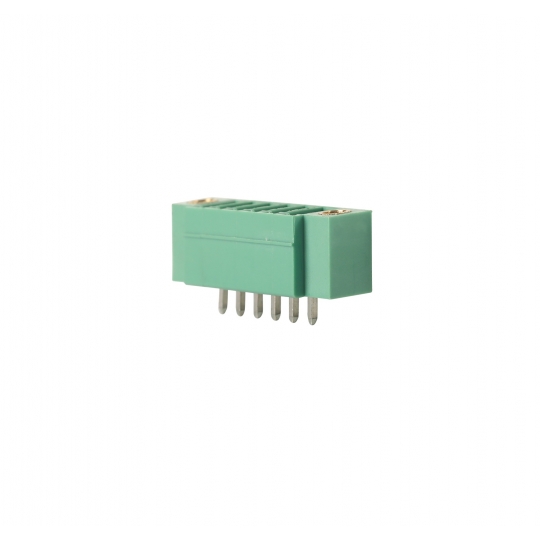

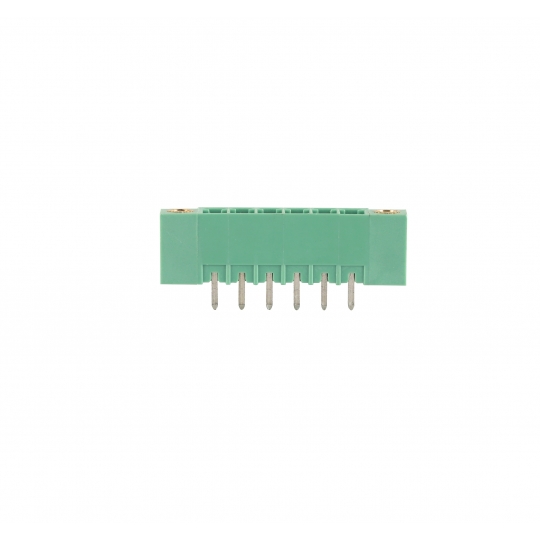

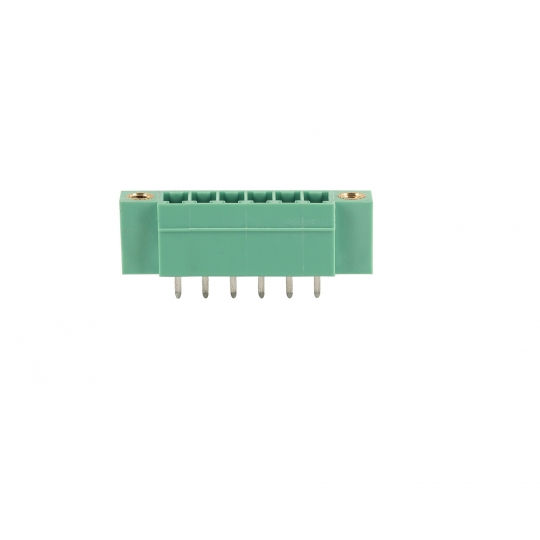

Pluggable Terminal Blocks Connector
PH3.5mm/2P-24P Pluggable Terminal Blocks connector male
Detail
Rated:300V,8A
Dielectric strength:AC1500V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Nut:Brass
Contact:Brass,Tin plating
