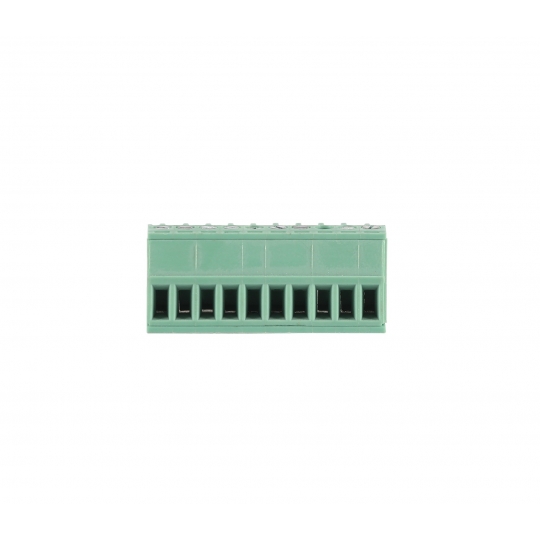

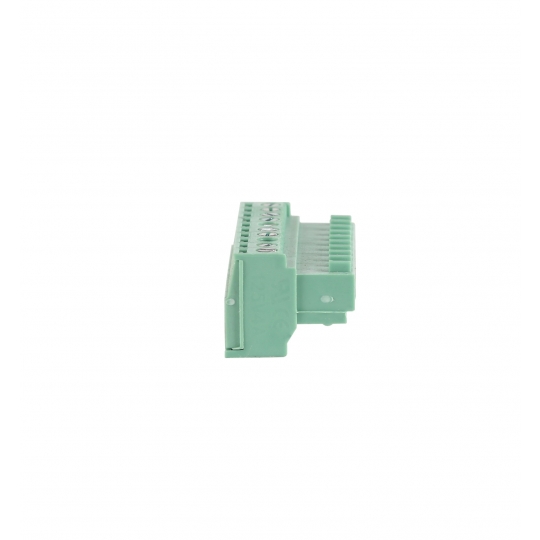

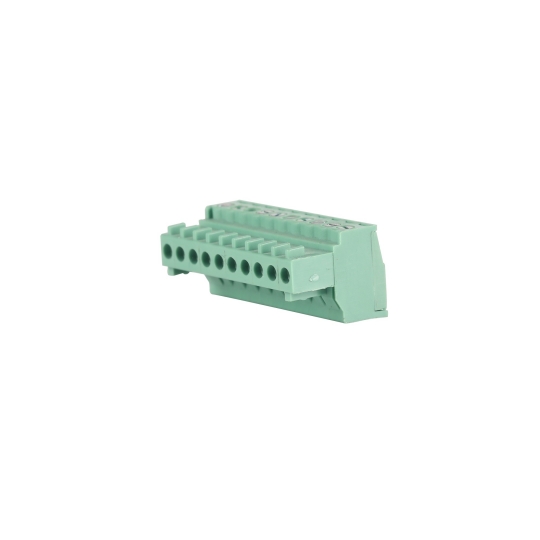

Pluggable Terminal Blocks Connector
PH2.54mm/2P-24P Pluggable Terminal Blocks connector female
Detail
Rated:125V,4A
Dielectric strength:AC1500V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.1Nm(0.9Lb.in)
Wire Range:20~28AWG
Strip length:5~6mm
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Brass,Tin plating
Clamp:Brass/Steel,Ni plating
Screw:M2.0,Steel,Zinc plating
