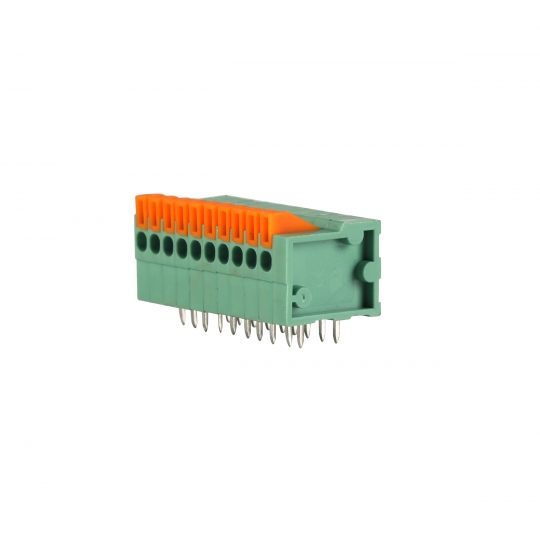

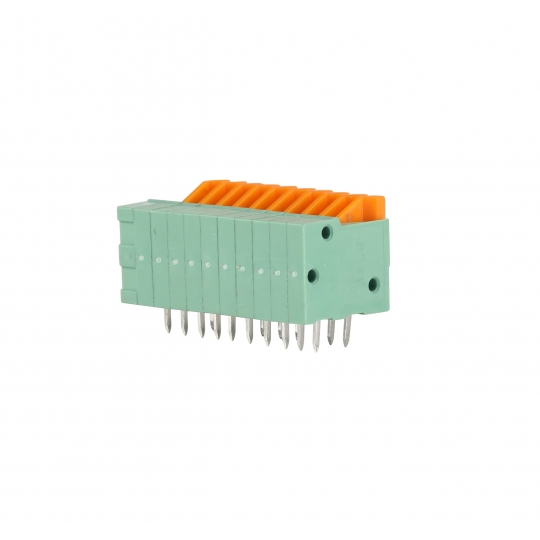

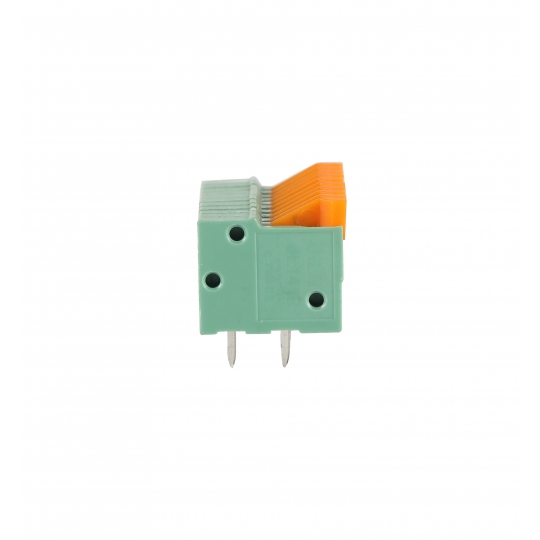

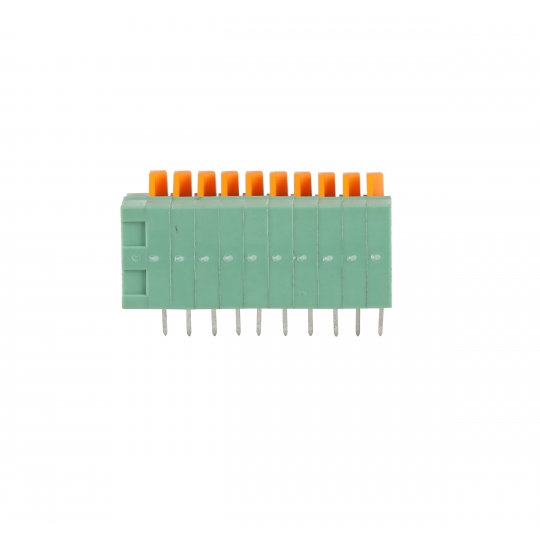

PCB Spring Terminal Blocks Connector
PH2.54mm PCB Spring Terminal Blocks Connector
Detail
Rated:150V,5A
Dielectric strength:AC2000V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Wire Range:20~26AWG
Strip length:11mm
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Brass,Tin plating
Reed:Stainless seel
