Feed Through Terminal Blocks Connector

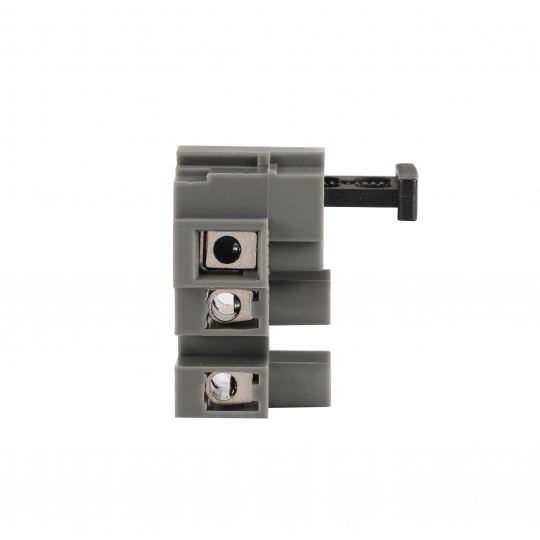

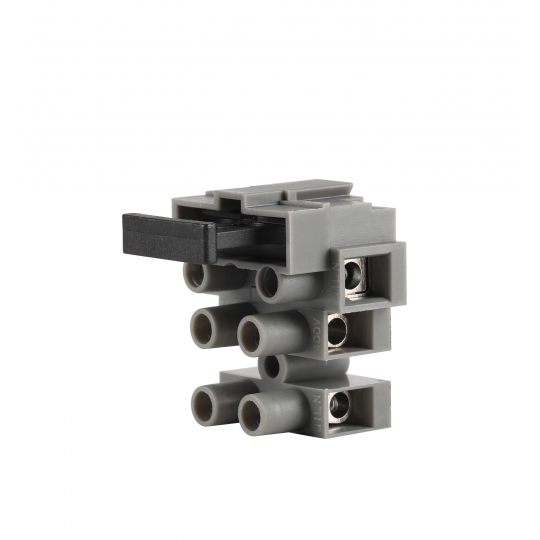

PH10.0mm Feed Through Terminal Blocks Connector
Detail
Rated:400V,15A
Dielectric strength:AC2000V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.5Nm(4.5Lb.in)
Wire Range:14~22AWG
Strip length:6~7mm
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Brass,Tin plating
Screw:M3.0,Steel,Zinc plating
