Female Header Connector Pitch 2.0mm

FEMALE HEADER CONNECTOR

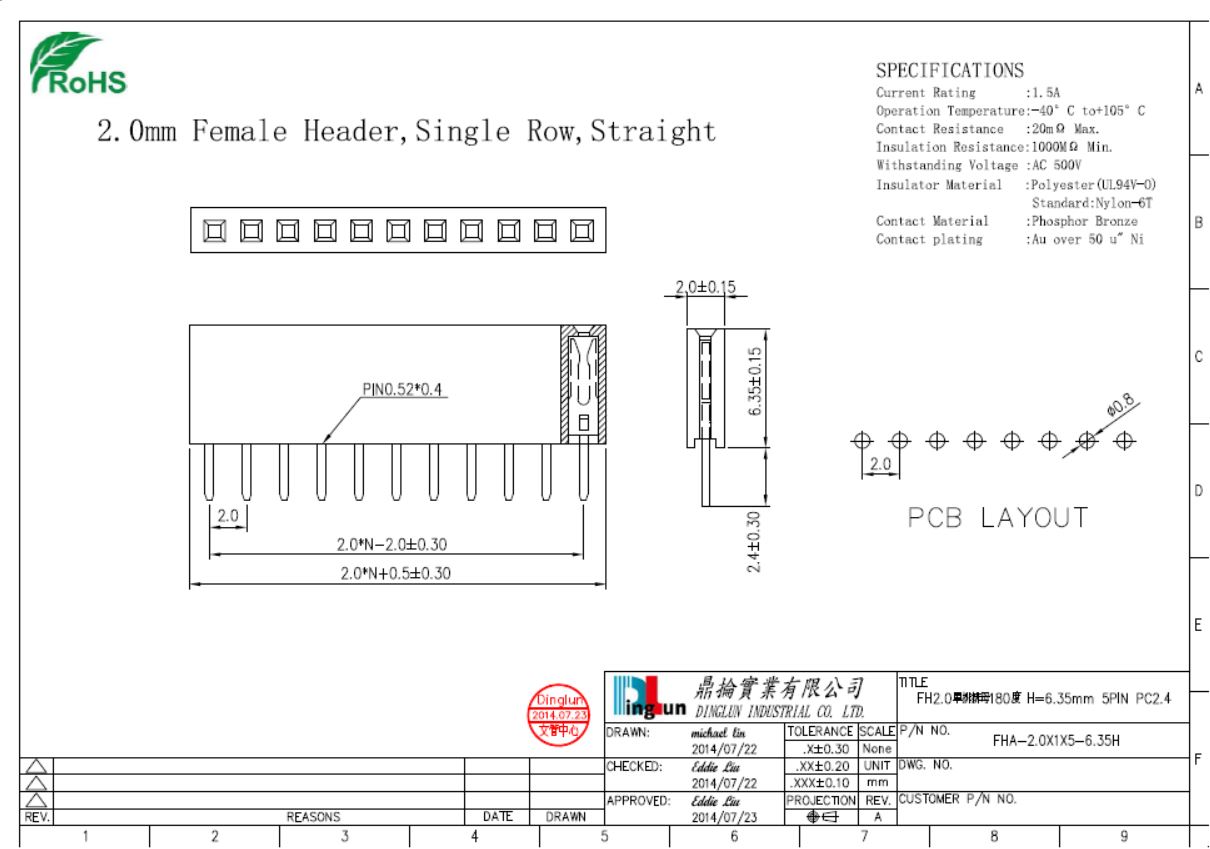

2.0mm Female Header Connector, Single Row, DIP
Detail

SPECIFICATIONS:
 Current Rating:1.5A
 Operation Temperature:-40°C to +105°C
 Contact Resistance:20MΩ Max.
 Insulation Resistance:1000MΩ Min.
 Withstanding Voltage:AC 500V
 Insulator Material:Polyester(UL94V-0)
                                  Standard:Nylon-6T
 Contact Material:Phosphor Bronze
Contact plating:Au over 50u" Ni
