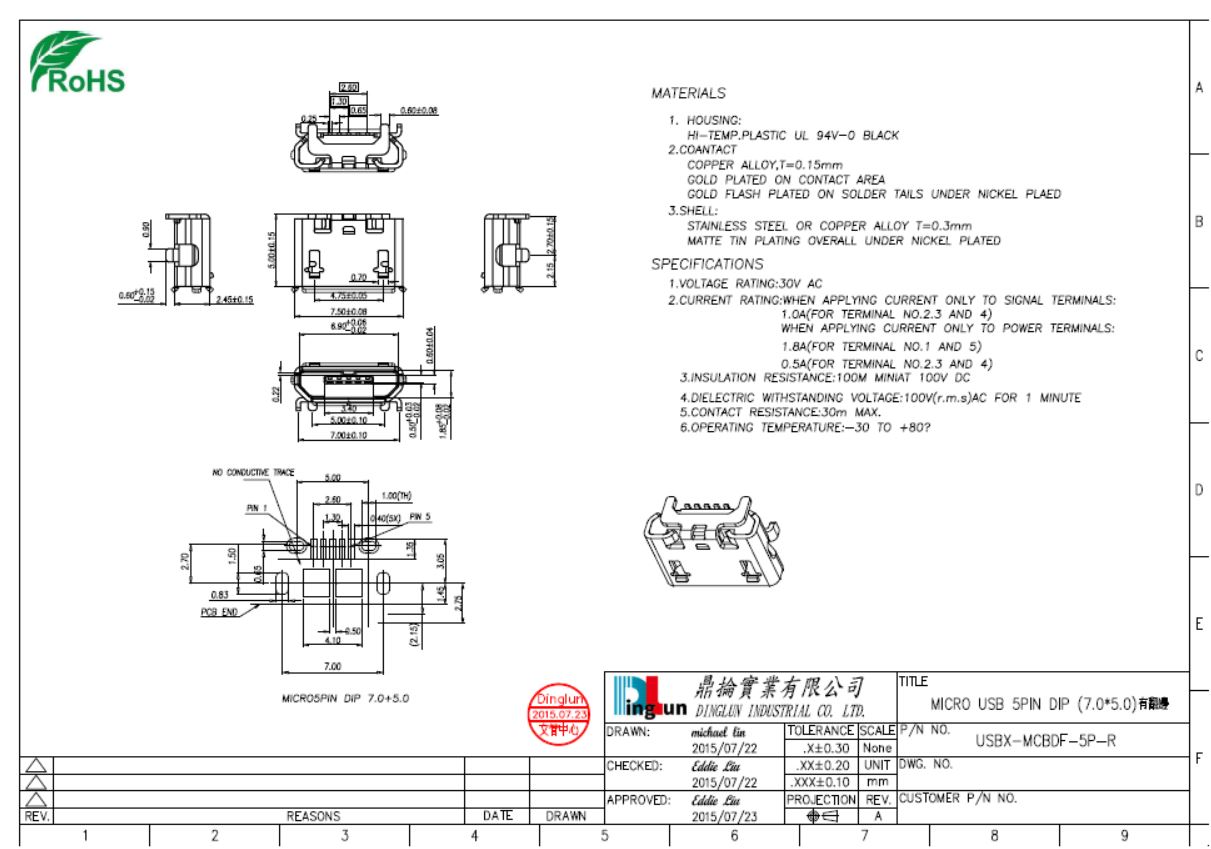

MATERIALS
1.HOUSING:
HI-TEMP.PLASTIC UL94V-0 BLACK
2.COANTACT
COPPER ALLOY,T=0.15mm
GOLD PLATED ON CONTACT AREA
GOLD FLASH PLATED ON SOLDER TAILS UNDER NICKEL PLAED
3.SHELL:
STAINLESS STEEL OR COPPER ALLOY T=0.3mm
MATTE TIN PLATING OVERALL UNDER NICKEL PLATED
SPECIFICATIONS
1.VOLTAGE RATING:30V AC
2.CURRENT RATING:WHEN APPLYING CURRENT ONLY TO SIGNAL TERMINALS:
1.0A(FOR TERMINAL NO.2.3 AND 4)
WHEN APPLYING CURRENT ONLY TO POWER TERMINALS:
1.8A(FOR TERMINAL NO.1 AND 5)
0.5A(FOR TERMINAL NO.2.3 AND 4)
3.INSULATION RESISTANCE:100M MINIAT 100V DC
4.DIELECTRIC WITHSTANDING VOLTAGE:100V(r.m.s) AC FOR 1 MINUTE
5.CONTACT RESISTANCE:30m MAX.
6.OPERATING TEMPERATURE:-30°C TO +80°C
