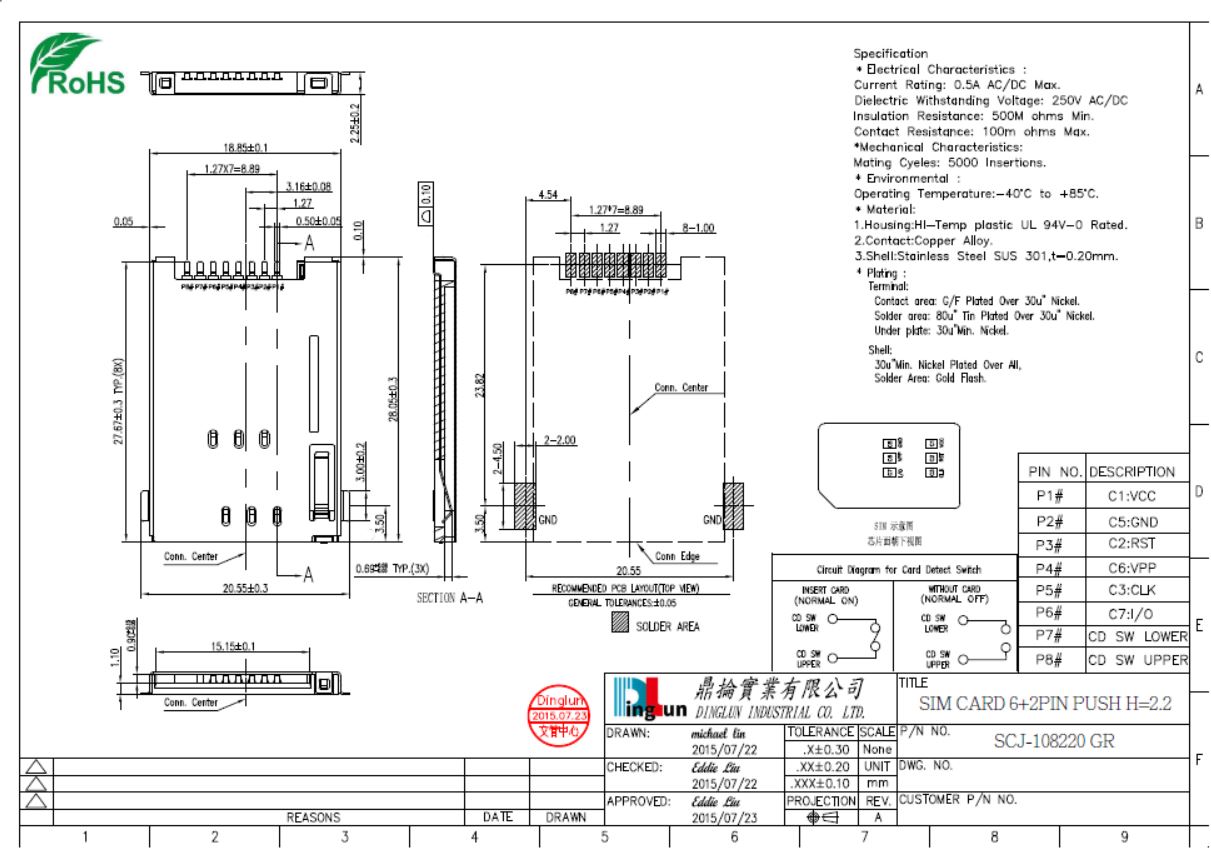

Specification:
1.Electrical Characteristics:
Current Rating:0.5A AC/DC Max.
Dielectric Withstanding Voltage:250V AC/DC
Insulation Resistance: 500M ohms Min.
Contact Resistance:100m ohms Max.
2.Mechanical Characcteristics:
Mating Cyeles:5000 Insertions.
3.Environmental:
Operating Temperature:-40°C to +85°C
4.Material:
1.Housing:HI-Temp plastic UL94V-0 Rated.
2.Contact:Copper Alloy.
3.Shell:Stainless Steel SUS301,t=0.20mm.
5.Plating:
Terminal:
Contact area:G/F Plated Over 30u" Nickel.
Solder area:80u" Tin Plated Over 30u" Nickel.
Under plate:30u" Min. Nickel.
Shell:
30u" Min. Nickel Plated Over All,
Solder Area:Gold Flash.
