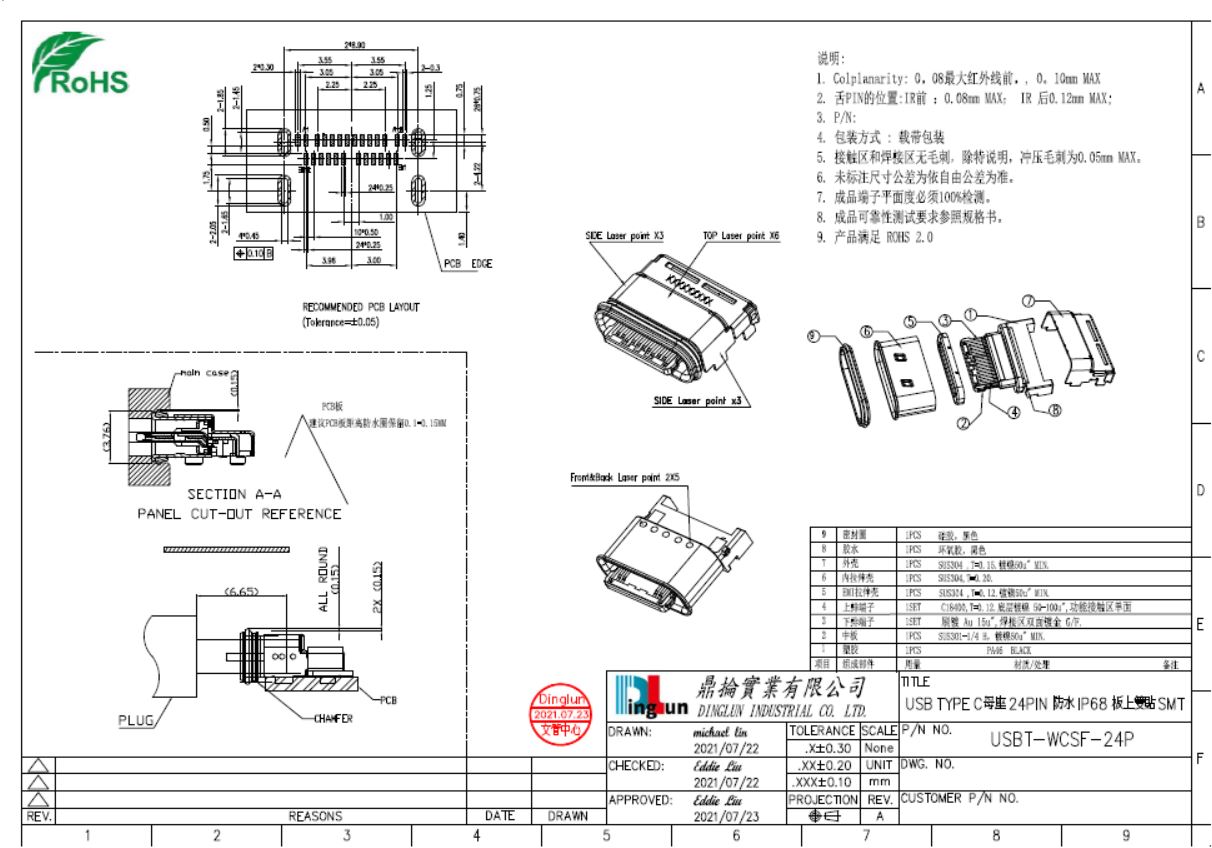

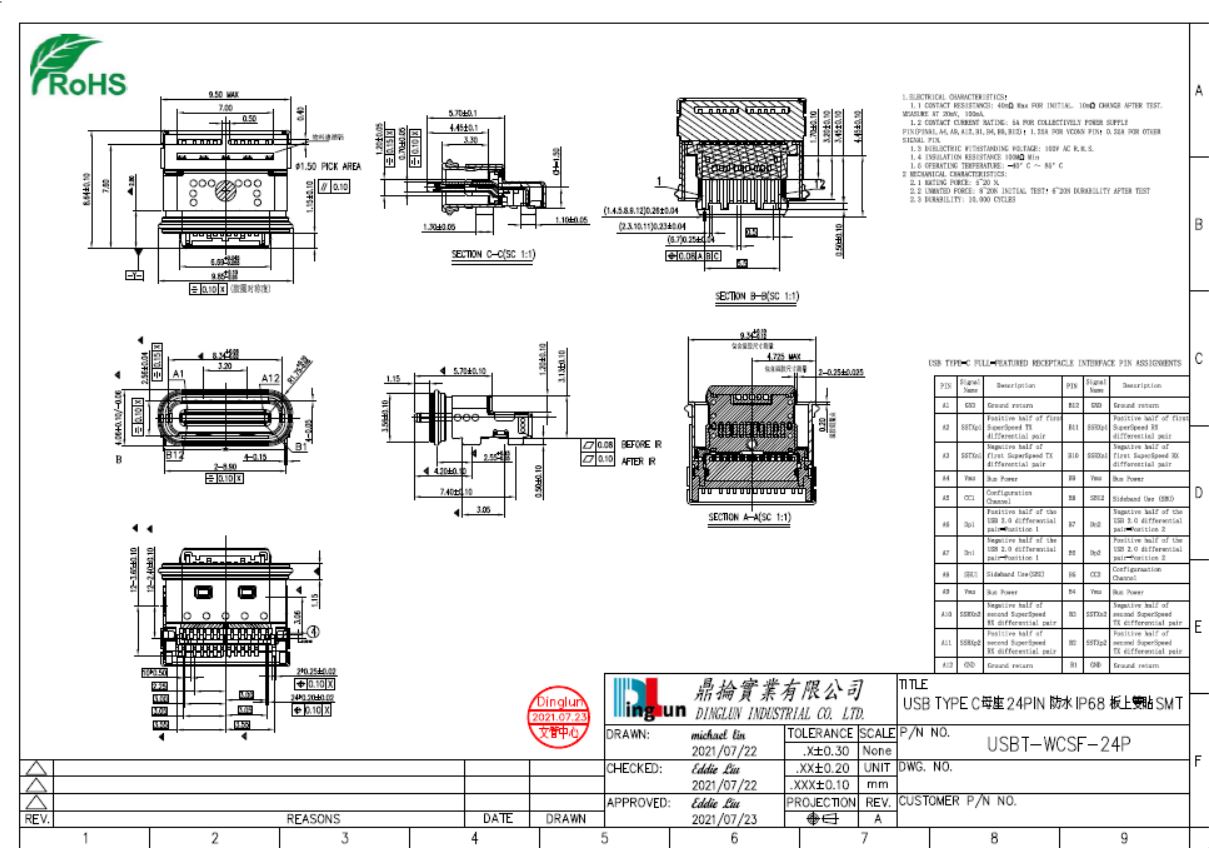

1.ELECTRICAL CHARACTERISTICS:
1-1.CONTACT RESISTANCE:40mΩ Max FOR INITIAL. 10mΩ CHANGE AFTER TEST.MEASURE AT 20mV, 100mA.
1-2.CONTACT CURRENT RATING:5A FOR COLLECTIVELY POWER SUPPLY PIN(PINA1,A4,A12,B1,B4,B9,B12);
1.25A FOR VCONN PIN;0.25A FOR OTHER SIGNAL PIN.
1-3.DIELECTRIC WITHSTANDING VOLTAGE:100V AC R.M.S.
1-4.INSULATION RESISTANCE:100MΩ Min
1-5.OPERATING TEMPERATURE:-40°C ~ 85°C
2.MECHANICAL CHARACTERISTICS:
2-1.MATING FORCE:5~20N.
2-2.UNMATED FORCE:8~20N INITIAL TEST;6~20N DURABILITY AFTER TEST
2-3.DURABILITY:10,000 CYCLES
