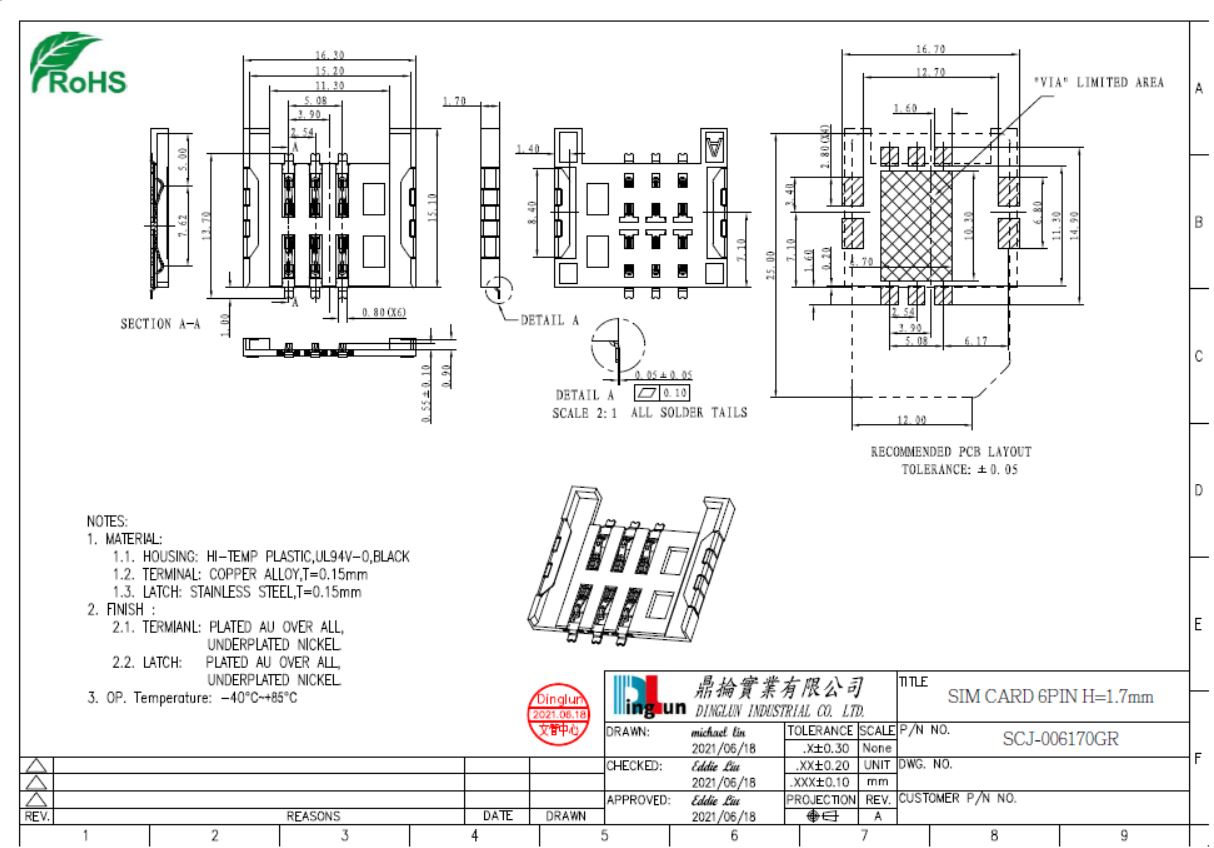

NOTES:
1.MATERIAL:
1-1.HOUSING:HI-TEMP PLASTIC,UL94V-0,BLACK
1-2.TERMINAL:COPPER ALLOY, T=0.15mm
1-3.LATCH:STAINLESS STEEL, T=0.15mm
2.FINISH:
2-1.TERMIANL:PLATED AU OVER ALL,UNDERPLATED NICKEL.
2-2.LATCH:PLATED AU OVER ALL,UNDERPLATED NICKEL.
3.OP. Temperature:-40°C ~ +85°C
