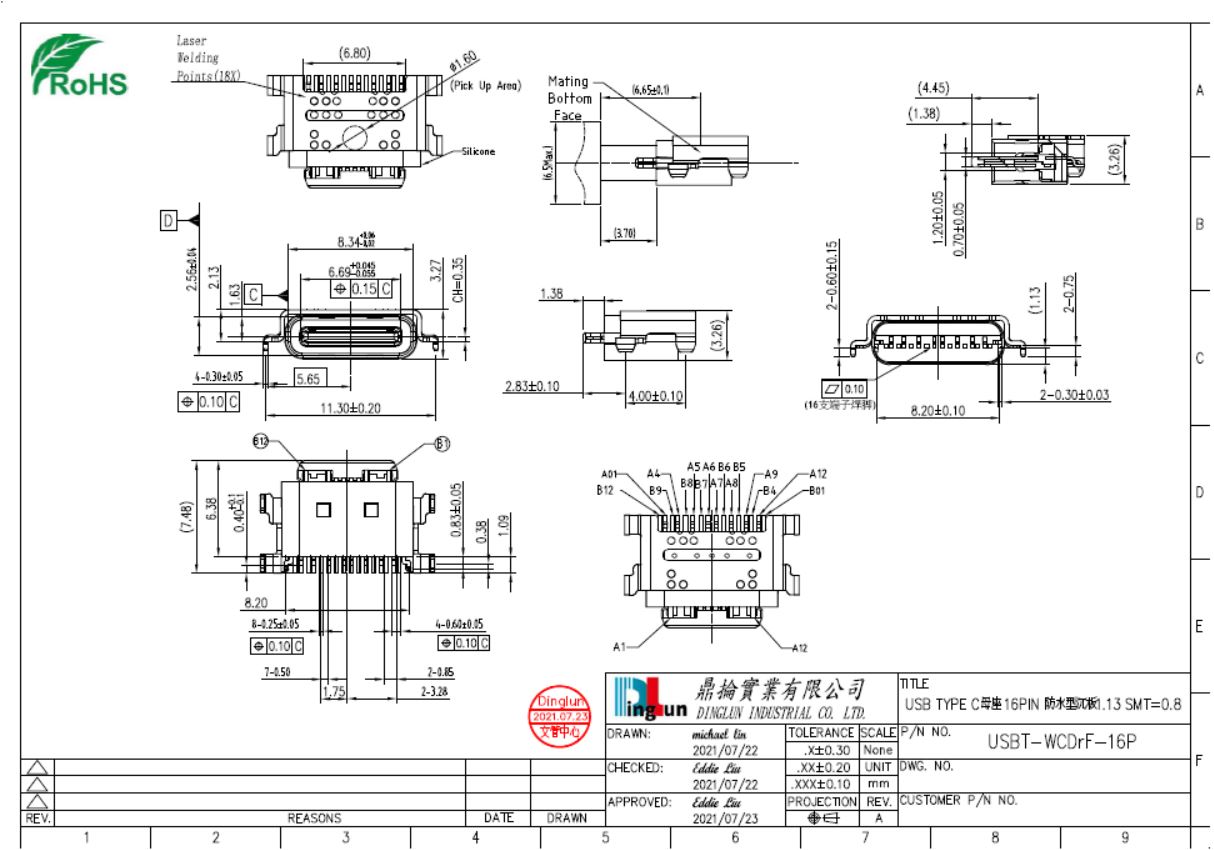

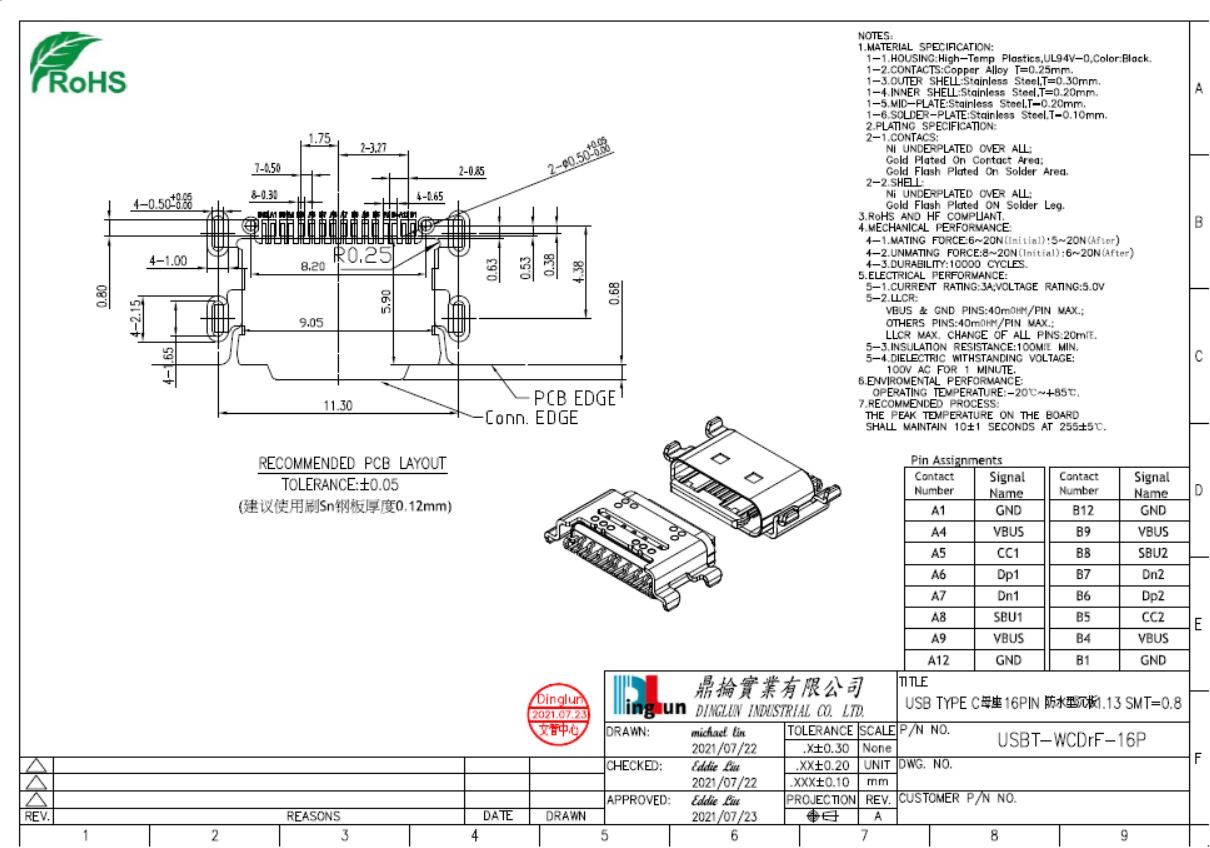

NOTES:
1.MATERIAL SPECIFICATION:
1-1.HOUSING:High-Temp Plastics,UL94V-0,Color:Black.
1-2.CONTACTS:Copper Alloy T=0.25mm.
1-3.OUTER SHELL:Stainless Steel, T=0.30mm.
1-4.INNER SHELL:Stainless Steel, T=0.20mm.
1-5.MID-PLATE:Stainless Steel, T=0.20mm.
1-6.SOLDER-PLATE:Stainless Steel, T=0.10mm.
2.PLATING SPECIFICATION:
2-1.CONTACS:Ni UNDERPLATED OVER ALL;Gold Plated On Contact Area;Gold Flash Plated On Solder Area.
2-2.SHELL:Ni UNDERPLATED OVER ALL;Gold Flash Plated On Solder Leg.
3.RoHS AND HF COMPLIANT.
4.MECHANICAL PERFORMANCE:
4-1.MATING FORCE:6~20N(Initial) ; 5~20N(After)
4-2.UNMATING FORCE:8~20N(Initial) ; 6~20N(After)
4-3.DURABILITY:10000 CYCLES.
5.ELECTRICAL PERFORMANCE:
5-1.CURRENT RATING:3A ; VOLTAGE RATING:5.0V
5-2.LLCR:VBUS & GND PINS:40m OHM/PIN MAX.;
OTHERS PINS:40m OHM/PIN MAX.;
LLCR MAX.CHANGE OF ALL PINS:20m¦'E.
5-3.INSULATION RESISTANCE:100 M¦'E MIN.
5-4.DIELECTRIC WITHSTANDING VOLTAGE:100V AC FOR 1 MINUTE.
6.ENVIROMENTAL PERFORMANCE:OPERATING TEMPERATURE:-20°C ~ +85°C.
7.RECOMMENDED PROCESS:THE PEAK TEMPERATURE ON THE BOARD SHALL MAINTAIN 10±1 SECONDS AT 255±5°C.
