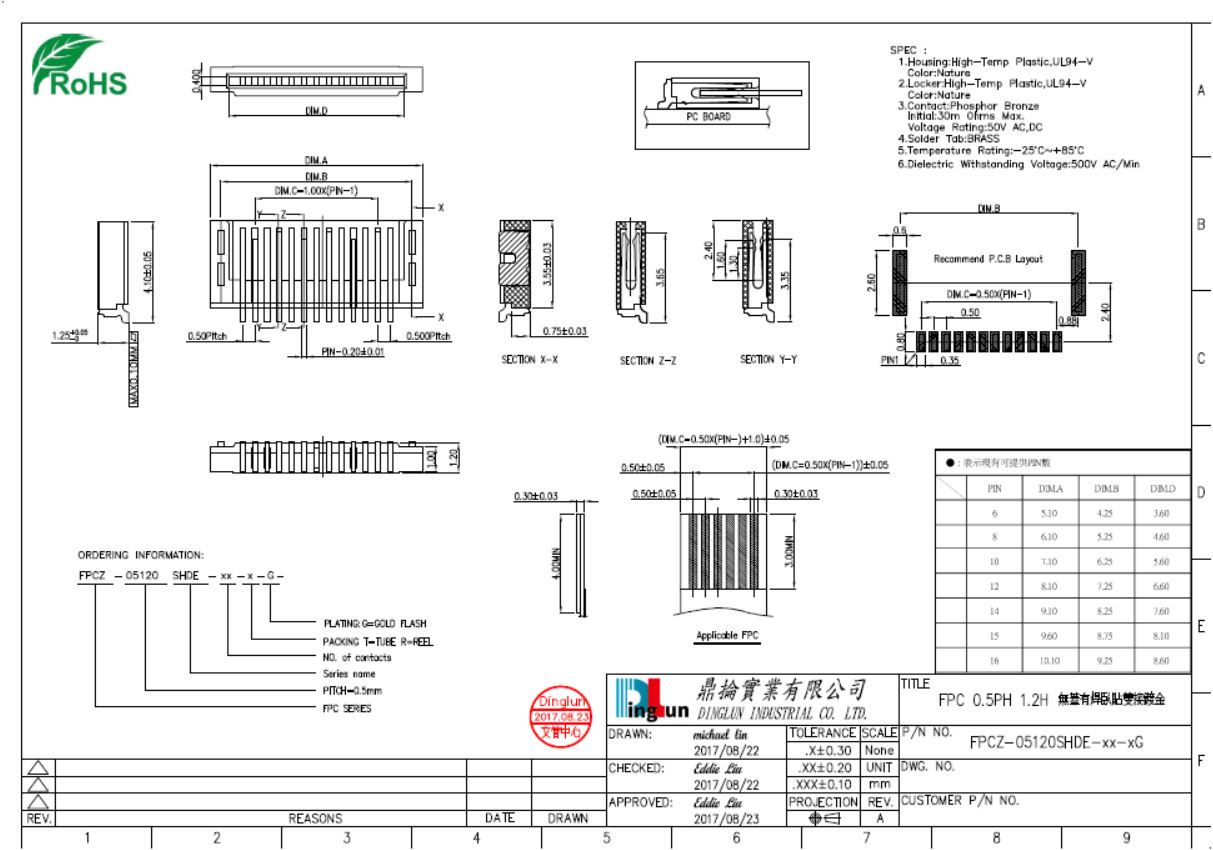

NON-ZIF0.5mm(0.020")

0.5PH H=1.2mm NON-ZIF SMT

Detail

 Specifications :

1.Housing:High-Temp Plastic,UL94-V

   Color:White or Black

2.Locker:High-Temp Plastic,UL94-V

   Color:White or Black

3.Contact:Phosphor Bronze

   Initial:30m 0hms Max.

   Voltage Rating:50V AC,DC

4.Solder Tab:BRASS

5.Temperature Rating:-25°C~+85°C

6.Dielectric Withstanding Voltage:500V AC/Min
