NOTE:
1.MATERIAL SPECIFICATION:
1-1.HOUSING:LCP E130i,UL94V-0.
1-2.CONTACTS:C7025
1-3.MID PLATE:SUS304
1-4.FRONT SHELL:SUS304
2.PLATING SPECIFICATION:
2-1.CONTACTS:
Ni 50u" MIN UNDER PLATED OVER ALL.
Au PLATED ON THE FUNCTIONAL AREA OF CONTACT.
(GOLD PLATING THICKNESS FOLLOW THE P/N)
PLATING SPECIFICATIONS OF THE SOLDER AREA FOLLOW THE P/N
2-2.FRONT SHELL:
Ni 30u" MIN. UNDER PLATED OVER ALL.
2-3.MID PLATE:
CLEAR ONLY
3.MECHANICAL PERFORMANCE:
3-1.INSERTION FORCE:0.5~2.0kgf.
3-2.REMOVAL FORCE:0.8kgf~2.0kgf.
3-3.DURABILITY:10000 CYCLES.
4.ELECTRICAL PERFORMANCE:
4-1.CURRENT RATING:3.0A
VOLTAGE RATING:5.0V
4-2.LLCR:
VBUS&GND PINS AND OTHER PINS:40mΩ/PIN MAX.
SHIELD:50mΩ/MAX.
4-3.INSULATION RESISTANCE:100MΩ MIN
4-4.DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1 MINUTE.
5.ENVIRONMENTAL PERFORMANCE:
OPERATING TEMPERATURE:-25°C ~ +85°C.
THE PEAK TEMPERATURE ON THE BOARD SHALL
BE MAINTAINED FOR 10 SECONDS AT 260°C.
6.WATER PROOFNESS:THISPRODUCTIS BASED ON IPEX7.

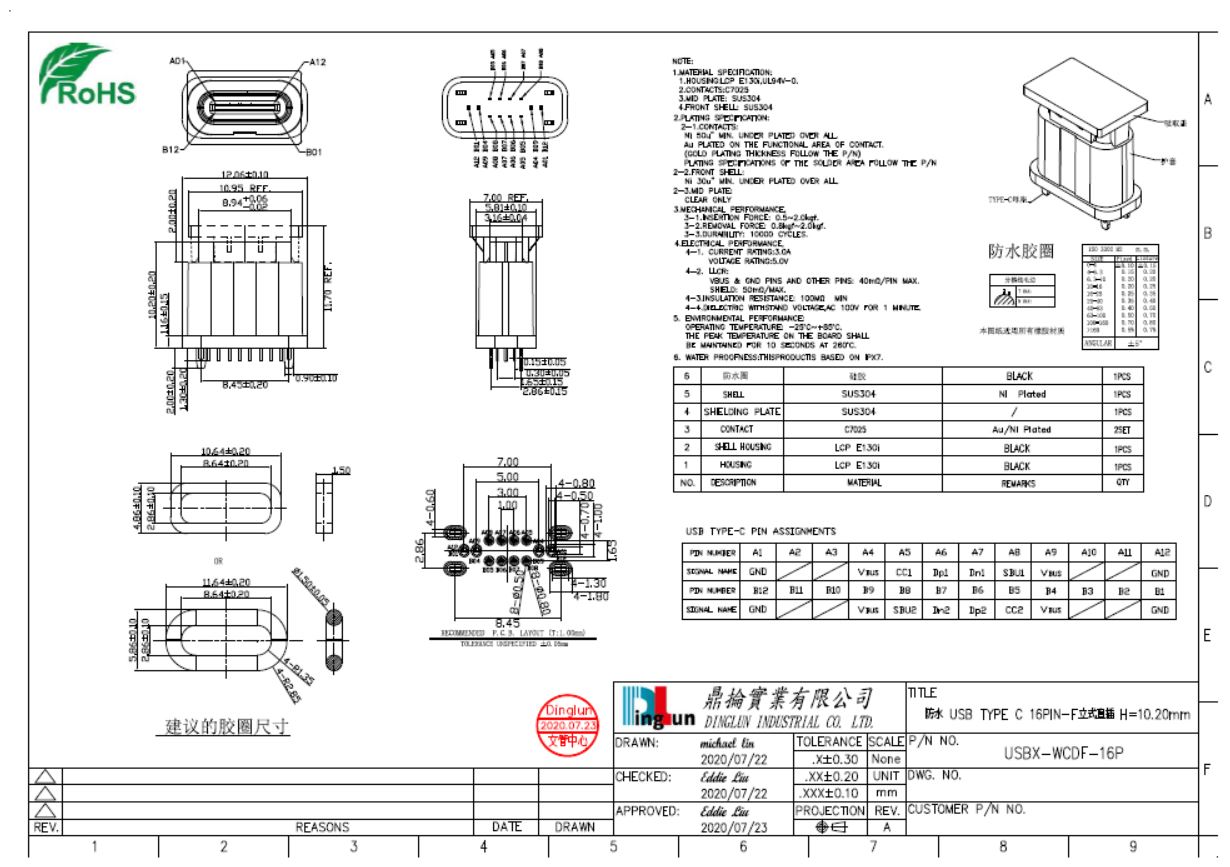

In-line waterproof TYPE-C female seat 16P vertical plug-in board H=10.20mm with rubber ring
Product specification: H=10.0mmPlastic material: LCP
Plug life: 10000 times
