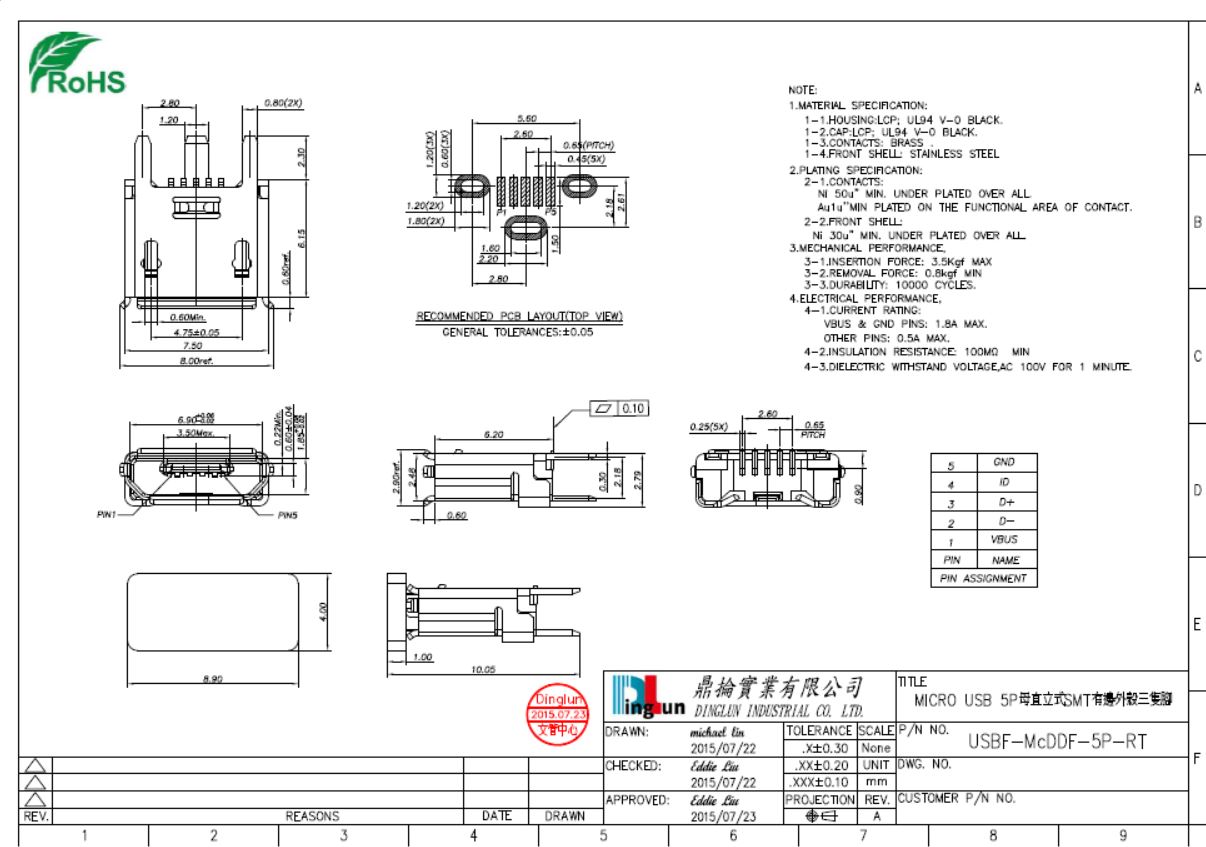

MICRO USB 2.0 female seat 5P vertical patch 180 degree three-pin board curling

NOTE:
 1.MATERIAL SPECIFICATION:
  1-1.HOUSING:LCP;UL94V-0 BLACK.
  1-2.CAP:LCP;UL94V-0 BLACK.
  1-3.CONTACTS:BRASS.
  1-4.FRONT SHELL:STAINLESS STELL
 2.PLATING SPECIFICATION:
  2-1.CONTACTS:
         Ni 50u" MIN.UNDER PLATED OVER ALL.
         Au 1u" MIN PLATED ON THE FUNCTIONAL AREA OF CONTACT.
  2-2.FRONT SHELL:
         Ni 30u" MIN. UNDER PLATED OVER ALL.
 3.MECHANICAL PERFORMANCE,
  3-1.INSERTION FORCE:3.5kgf MAX
  3-2.REMOVAL FORCE:0.8kgf MIN
  3-3.DURABILITY:10000 CYCLES.
 4.ELECTRICAL PERFORMANCE,
  4-1.CURRENT RATING:
         VBUS&GND PINS:1.8A MAX.
         OTHER PINS:0.5A MAX.
  4-2.INSULATION RESISTANCE:100MΩ MIN
  4-3.DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1MINUTE.

MICRO USB 2.0 female seat 5P vertical patch 180 degree three-pin board curling
