BOX HEADER CONNECTOR

Box Header(BH) Connector

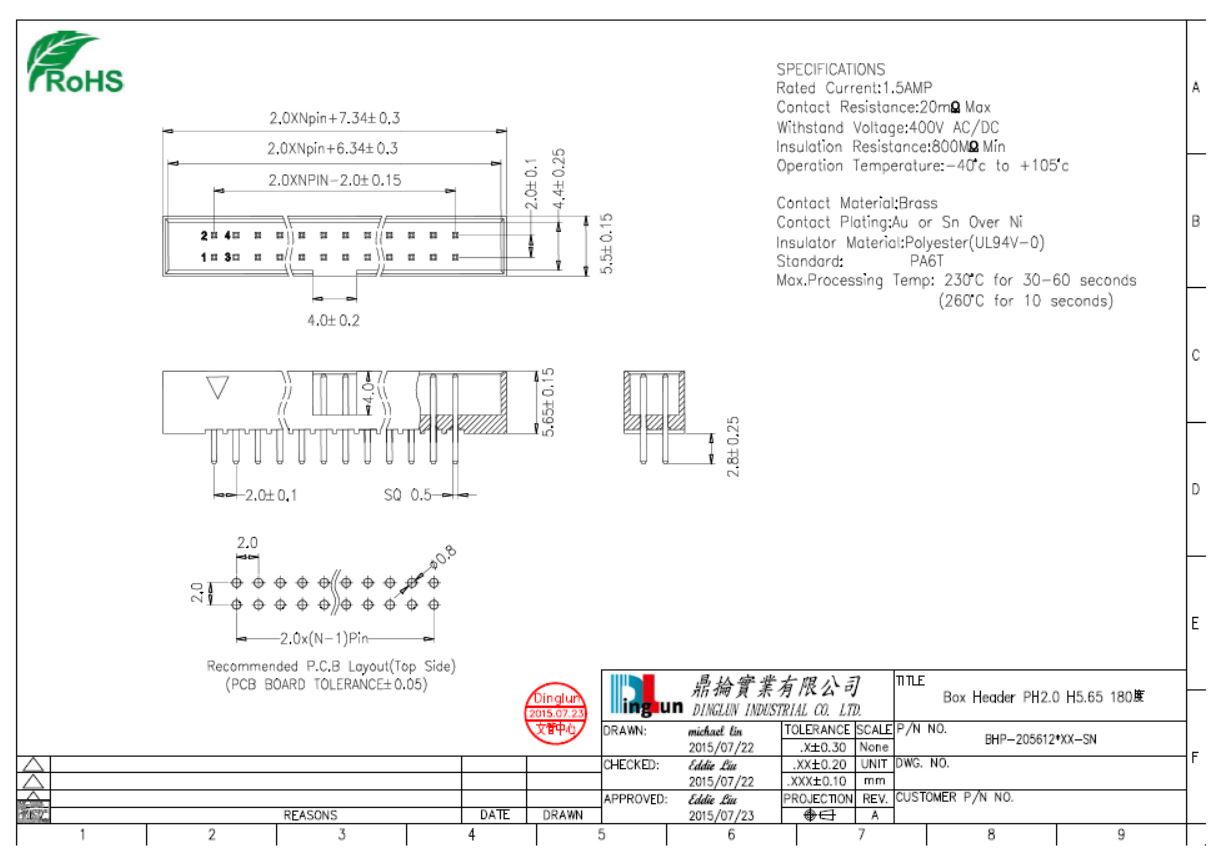

Pitch 2.0mm Box Header(BH) connector, Straight
Detail

SPECIFICATIONS:
  Rated Current:1.5AMP
  Contact Resistance:20mΩ Max
  Withstand Voltage:400V AC/DC
  Insulation Resistance:800MΩ Min
  Operation Temperature:-40ºC to +105ºC
  Contact Material:Brass
  Contact Plating:Au or Sn Over Ni
  InSulator Material:Polyester(UL94V-0)
  Standard: PA6T
  Max.Processing Temp:230ºC for 30-60 seconds(260ºC for 10 seconds)
