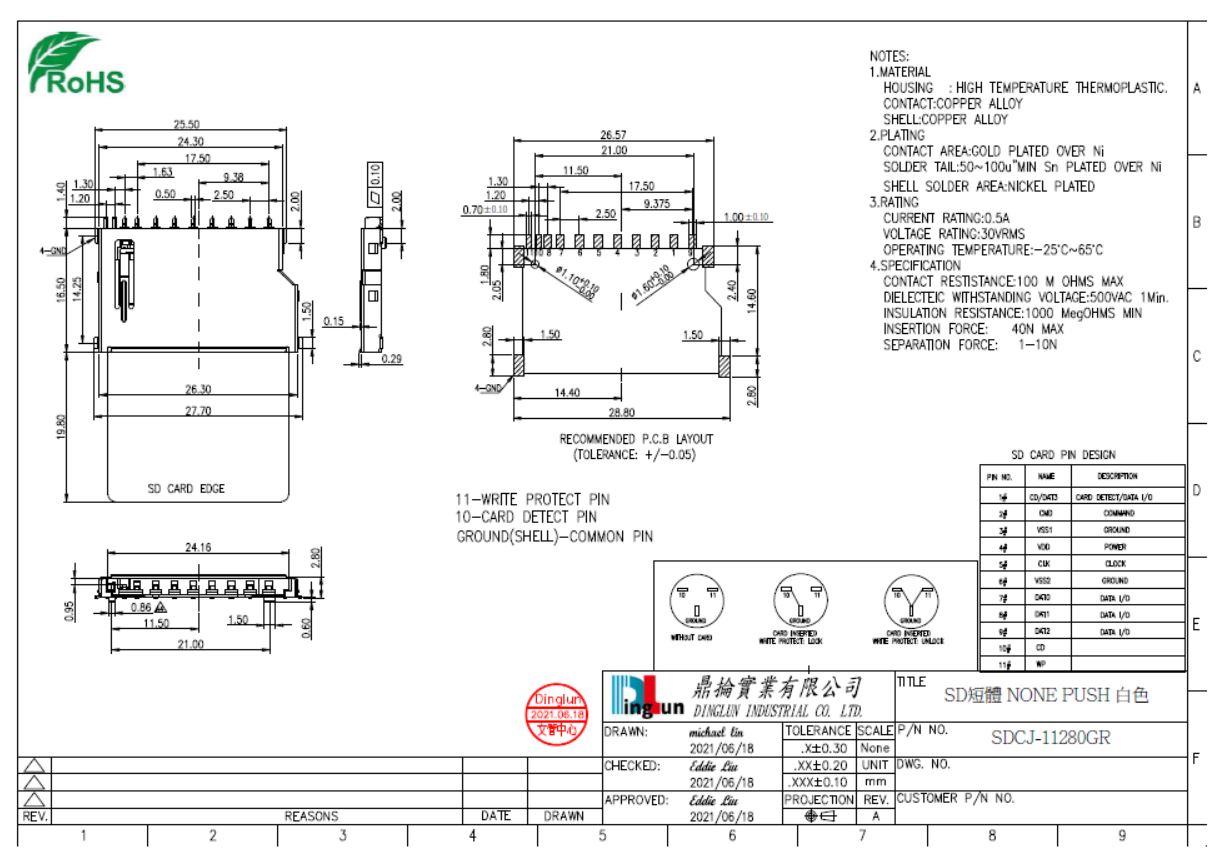

MATERIAL:
HOUSING:HIGH TEMPERATURE THERMOPLASTIC.
CONTACT:COPPER ALLOY
SHELL:COPPER ALLOY
PLATING:
CONTACT AREA:GOLD PLATED OVER Ni
SOLDER TAIL:50~100u"MIN Sn PLATED OVER Ni
SHELL SOLDER AREA:NICKEL PLATED
RATING:
CURRENT RATING:0.5A
VOLTAGE RATING:30VRMS
OPERATING TEMPERATURE:-25ºC~65°C
SPECIFICATION:
CONTACT RESTISTANCE:100M OHMS MAX
DIELECTEIC WITHSTANDING VOLTAGE:500VAG 1Min.
INSULATION RESISTANCE:1000 MegOHMS MIN
INSERTION FORCE:40N MAX
SEPARATION FORCE:1-10N
