SIM CARD CONNECTOR

SIM CARD Connector

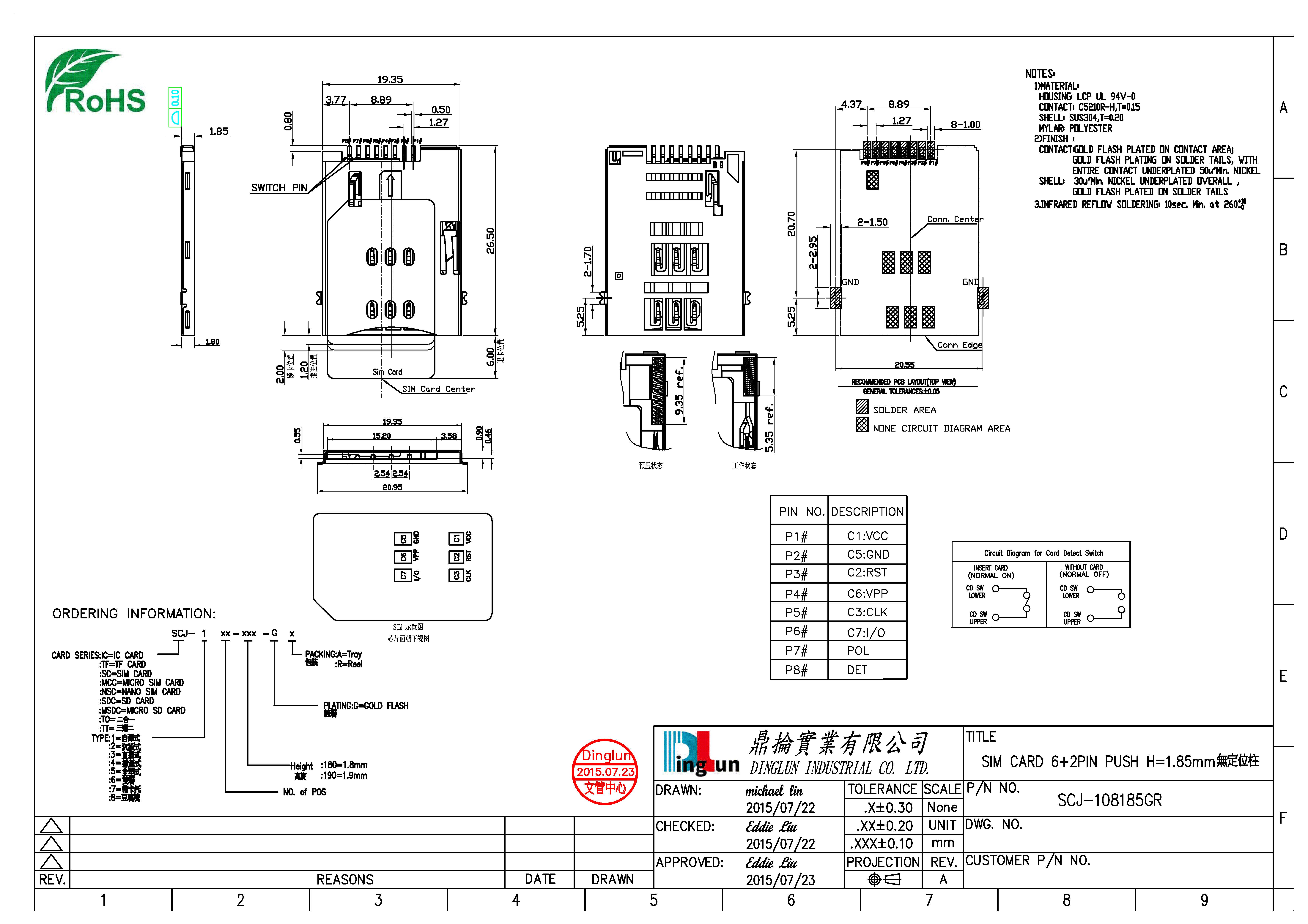

SIM CARD self-bouncing 6+2PIN H=1.85mm without positioning pin
Detail

NOTES:
1.MATERIAL:
  HOUSING:LCP UL 94V-0
  CONTACT:C5210R-H,T=0.15
  SHELL:SUS304,T=0.20
  MYLAR:POLYESTER
2.FINISH:
  CONTACT:GOLD FLASH PLATED ON CONTACT AREA;
                    GOLD FLASH PLATING ON SOLDER TAILS,WITH
                    ENTIRE CONTACT UNDERPLATED 50u"Min.NICKEL
  SHELL: 30u"Min. NICKEL UNDERPLATED OVERALL,
               GOLD FLASH PLATED ON SOLDER TAILS
3.INFRARED REFLOW SOLDERING:10sec. Min. at 260 ±10
