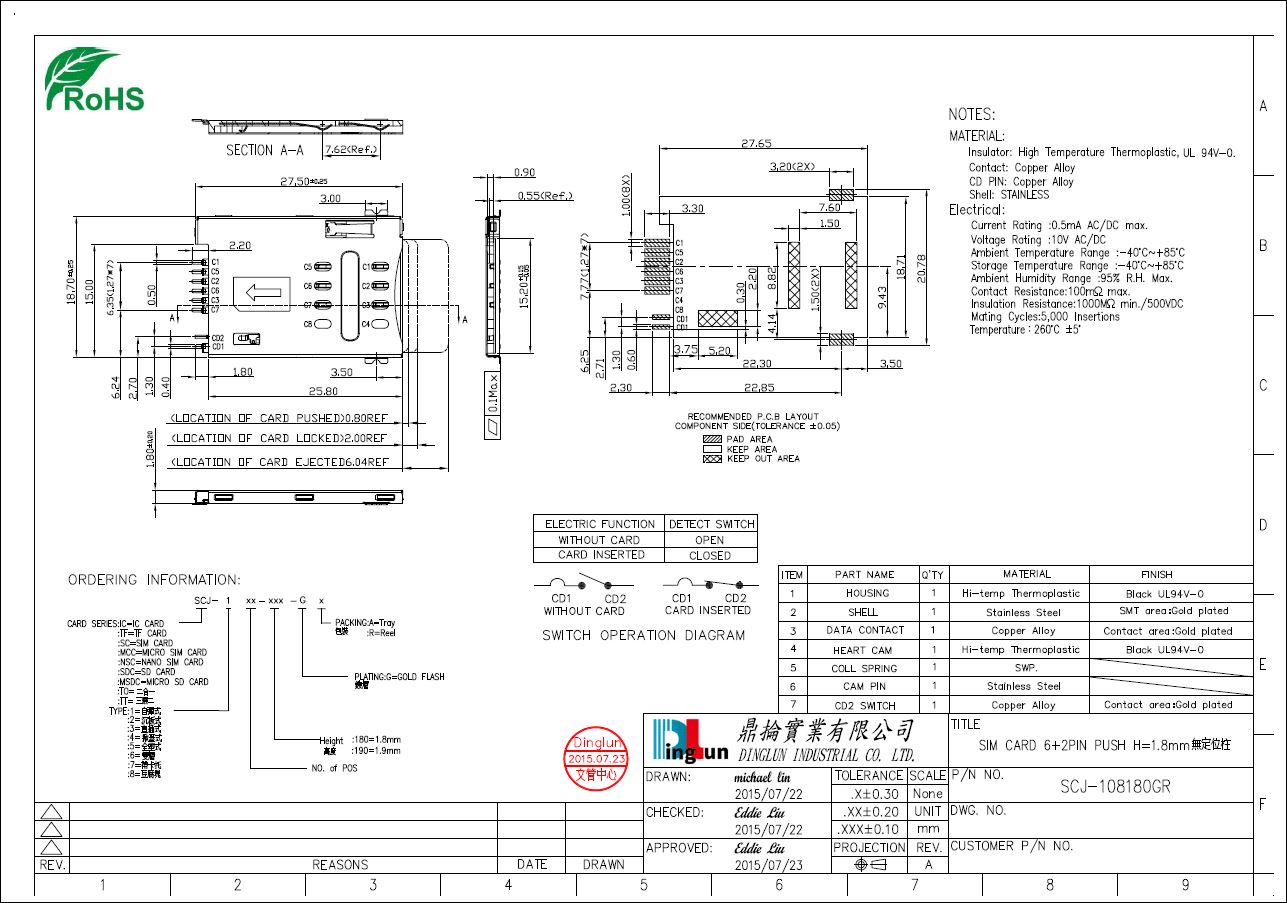

MATERIAL:
Insulator:High Temperature Thermoplastic,UL 94V-0.
Contact:Copper Alloy
CD PIN:Copper Alloy
Shell:STAINLESS
Electrical:
Current Rating:0.5mA AC/DC max.
Voltage Rating:10V AC/DC
Ambient Temperature Range:-40ºC~+85ºC
Storage Temperature Range:-40ºC~+85ºC
Ambient Humidity Range:95% R.H Max.
Contact Resistance:100mΩ max.
Insulation Resistance:1000mΩ min./500VDC
Mating Cycles:5000 lnsertions
Temperature:260ºC ±5º
