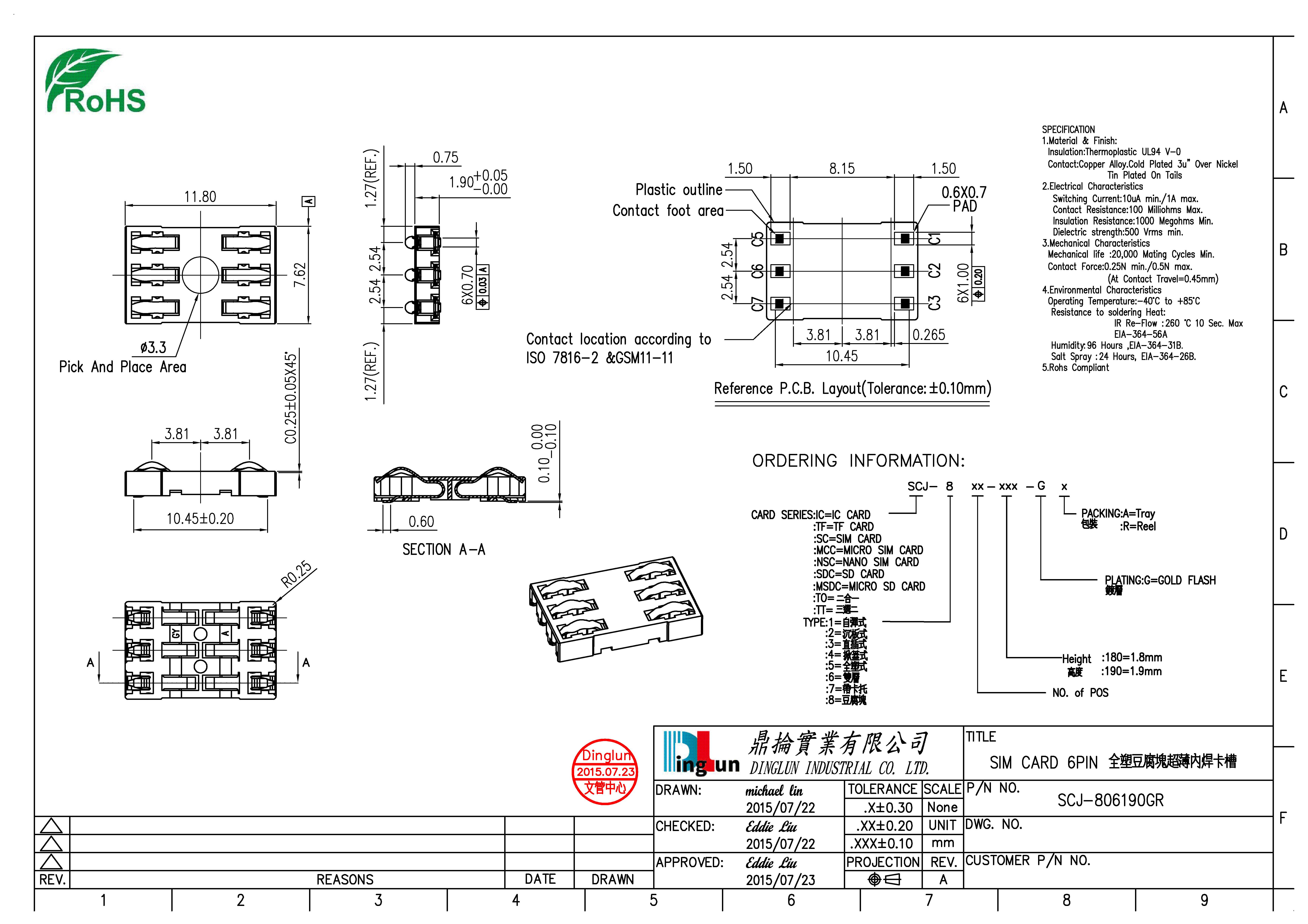

SPECIFICATION
1.Material & Finish:
Insulation:Thermoplastic UL94 V-0
Contact:Copper Alloy.Cold Plated 3u" Over Nickel Tin Plated On Tails
2.Electrical Characteristics
Switching Current:10uA min./1A max.
Contact Resistance:100 Milliohms Min.
Dielectric strength:500 Vrms min.
3.Mechanical Characteristics
Mechanical life:20000 Mating Cycles Min.
Contact Force:0.25N min./0.5N max.(At Contact Travel=0.45mm)
4.Environmental Characteristics
Operating Temperature:-40ºC to +85ºC
Resistance to soldering Heat:
IR Re-Flow:260ºC 10 Sec Max EIA-364-56A
Humidity:96 Hours,EIA-364-31B
Salt Spray:24 Hours,EIA-364-26B
5.Rohs Compliant
