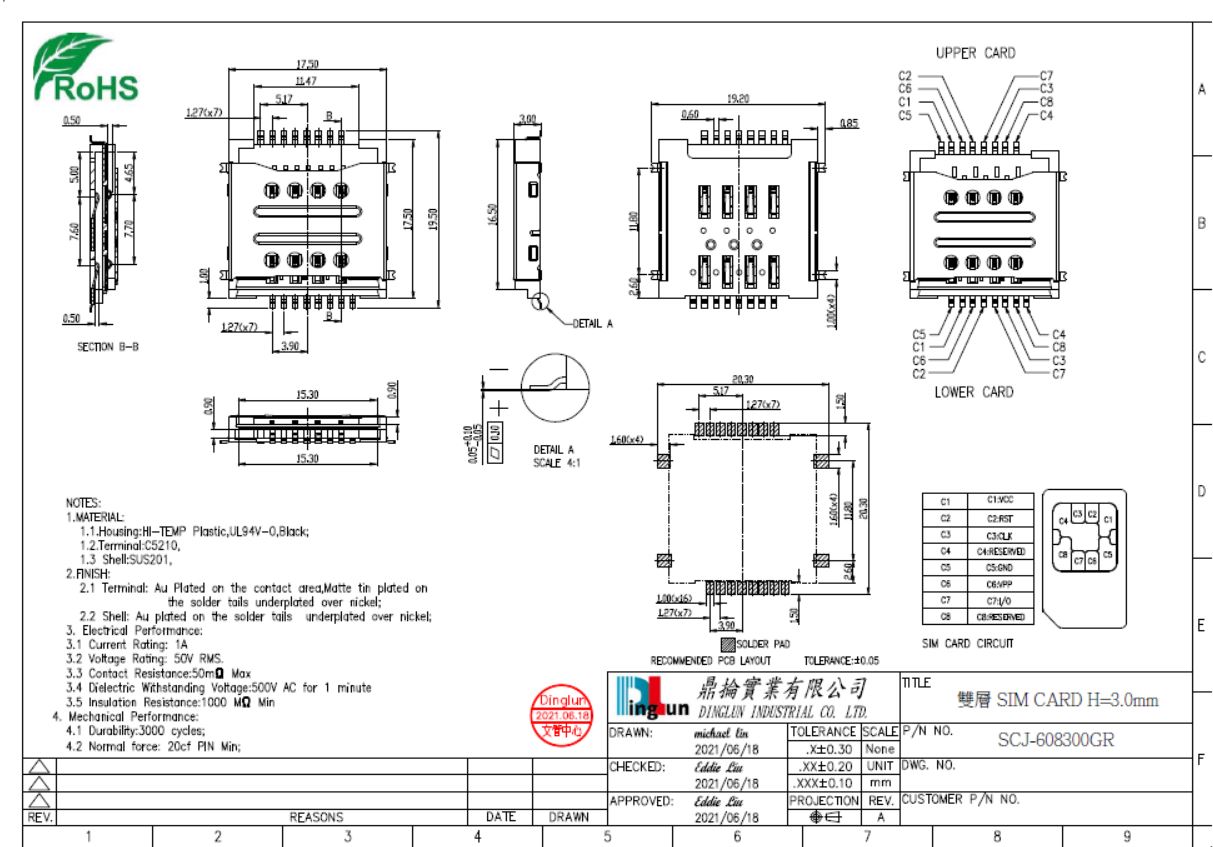

NOTES:
1.MATERIAL:
1-1.Housing:HI-TEMP Plastic, UL94V-0, Black;
1-2.Terminal:C5210,
1-3.Shell:SUS201,
2.FINISH:
2-1.Terminal:Au Plated on the contact area,Matte tin plated on the solder tails underplated over nickel;
2-2.Shell:Au plated on the solder tails underplated over nickel;
3.Electrical Performance:
3-1.Current Rating:1A
3-2.Voltage Rating:50V RMS.
3-3.Contact Resistance:50mΩ Max
3-4.Dielectric Withstanding Voltage:500V AC for 1 minute
3-5.Insulation Resistance:1000 MΩ Min
4.Mechanical Performance:
4-1.Durability:3000 cycles;
4-2.Normal force:20cf PIN Min
