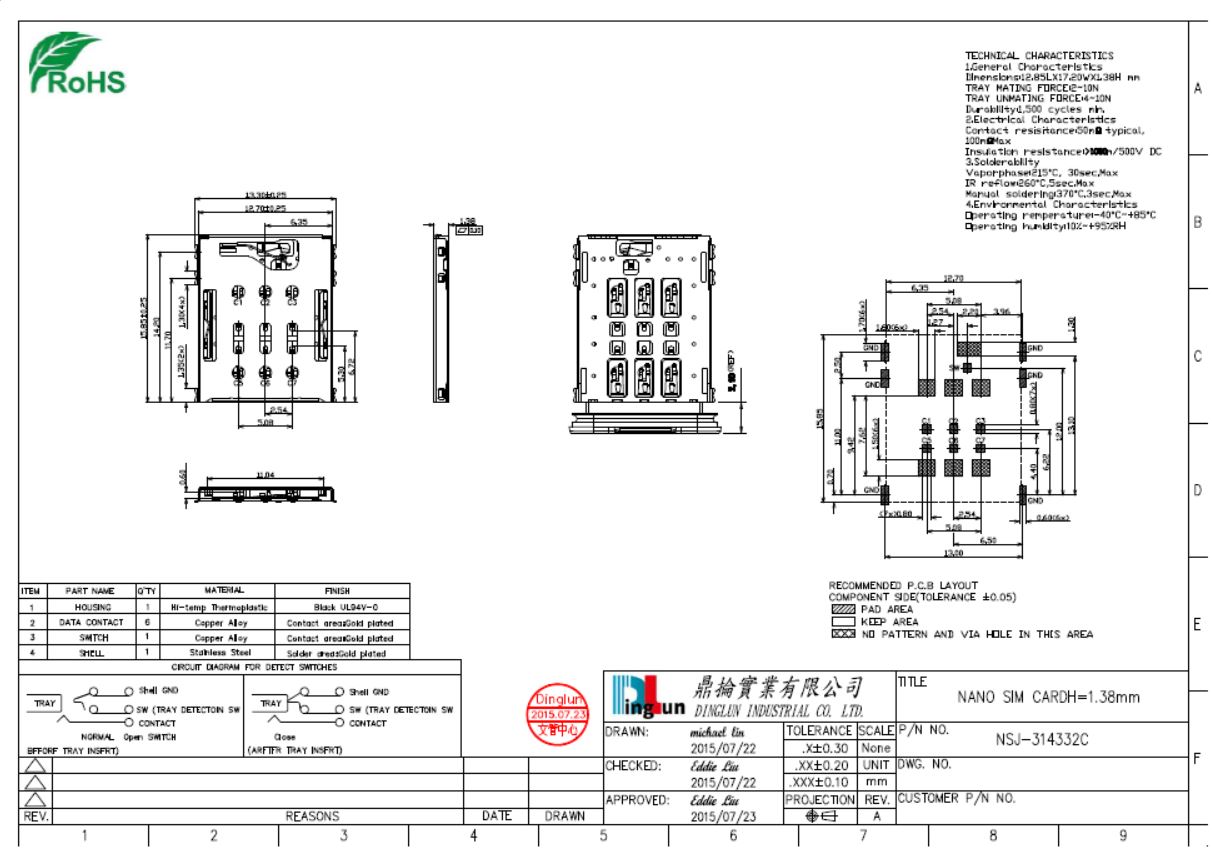

TECHNICAL CHARACTERISTICS
1.General Characteristics Dimensions:12.85Lx17.20Wx1.38H mm
TRAY MATING FORCE:2~10N
TRAY UNMATING FORCE:4~10N
Durability:1500 cycles min
2.Electrical Characteristics Contact resisitance:50mΩ typical,100mΩ Max.
Insulation resistance:>1000m/500V DC
3.Solderability
Vaporphase:215ºC, 30sec, Max
IR reflow:260ºC, 5sec, Max
Manual soldering:370ºC, 3sec, Max
4.Environmental Characteristics
Operating remperature:-40ºC ~ +85ºC
Operating humidity:10% ~ +95%RH
