Pluggable Terminal Blocks Connector

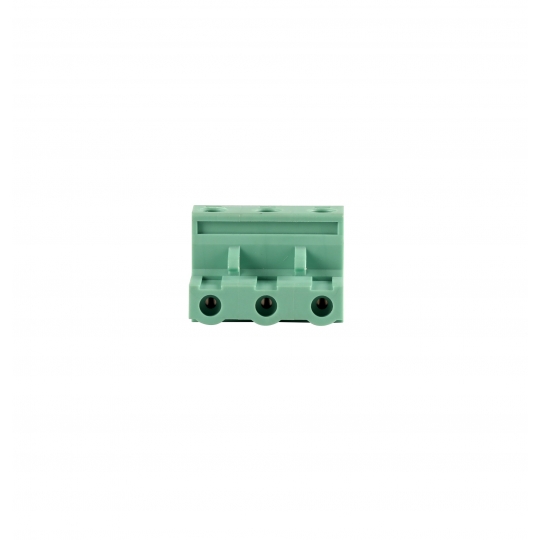

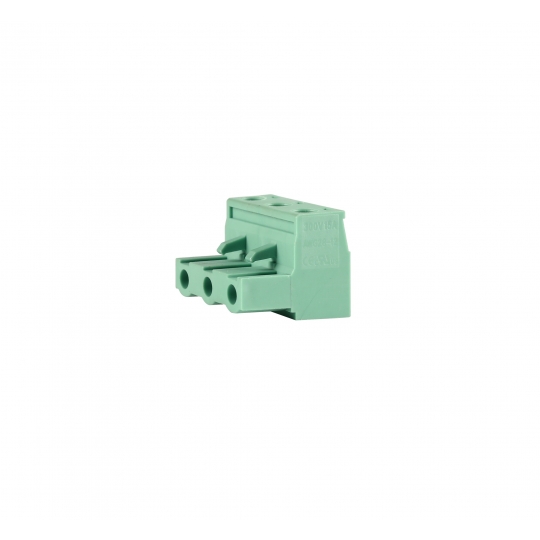

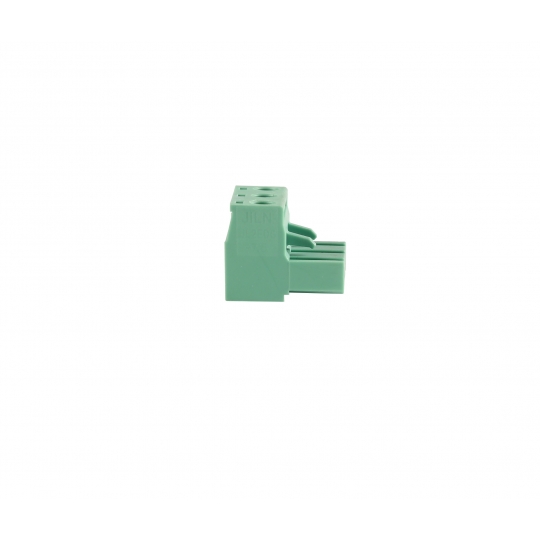

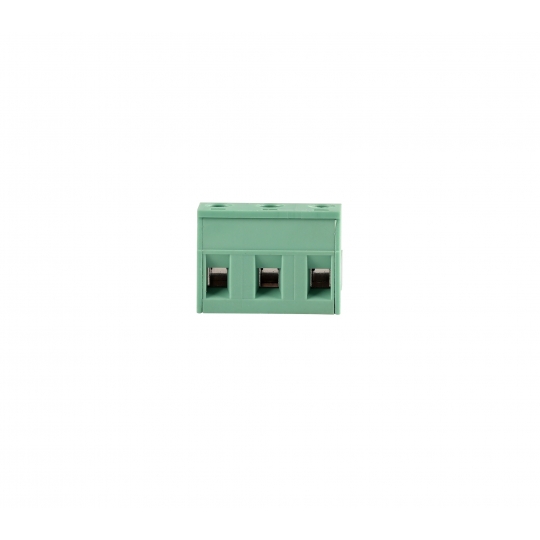

PH7.5mm/2P-12P Pluggable Terminal Blocks connector female
Detail
Rated:300V,15A
Dielectric strength:AC2500V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.5Nm(4.5Lb.in)
Wire Range:12~28AWG
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Phosphor Bronze,Tin plating
Clamp:Brass/Steel,Ni plating
Screw:M2.5,Steel,Zinc plating
