Pluggable Terminal Blocks Connector

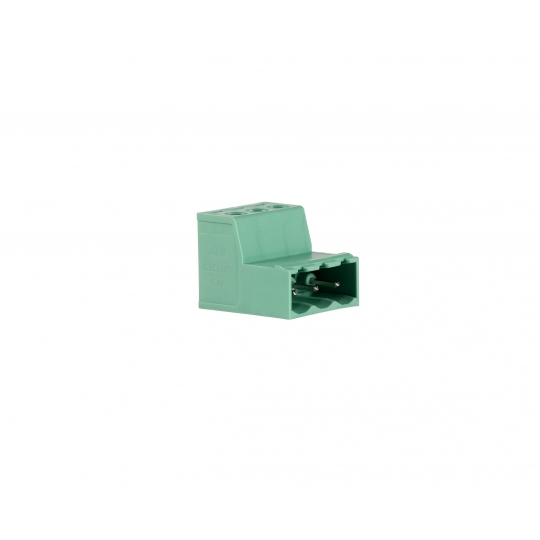

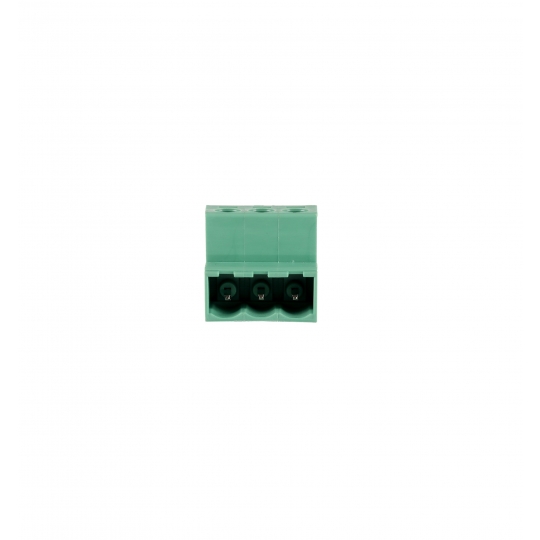

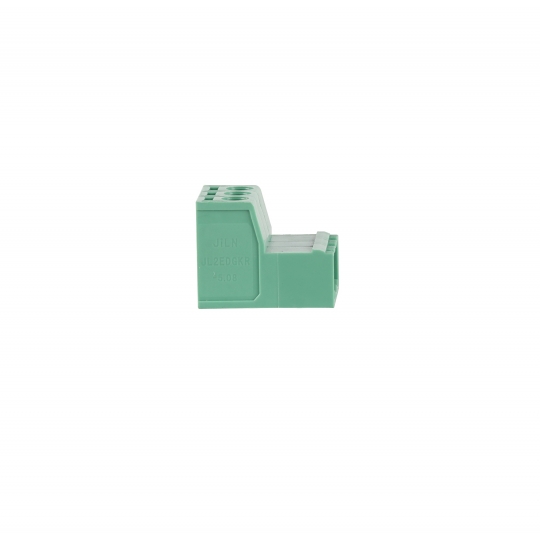

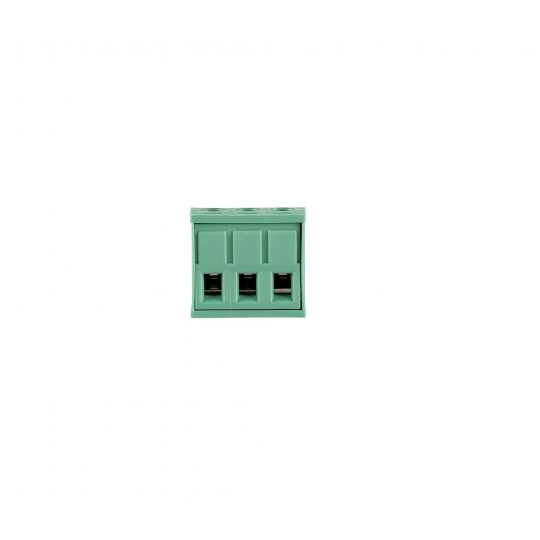

PH5.0mm/2P-24P Pluggable Terminal Blocks connector
Detail
Rated:300V,15A
Dielectric strength:AC2000V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.4Nm(3.5Lb.in)
Wire Range:12~28AWG
Strip length:7~8mm
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Phosphor Bronze,Tin plating
Screw:M2.5,Steel,Zinc plating
