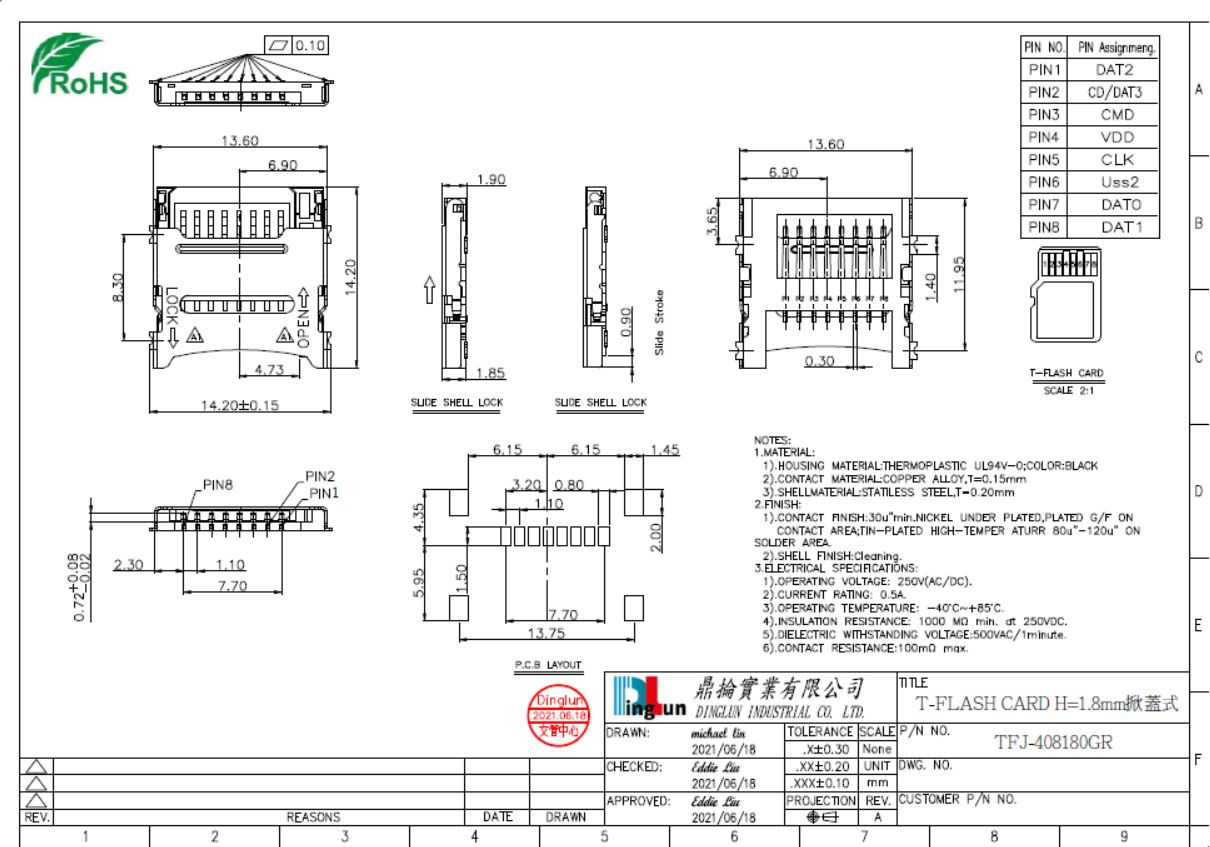

NOTES:
1.MATERIAL:
1-1.HOUSING MATERIAL:THERMOPLASTIC UL94V-0; COLOR:BLACK
1-2.CONTACT MATERIAL:COPPER ALLOY,T=0.15mm
1-3.SHELL MATERIAL:STATILESS STEEL, T=0.20mm
2.FINISH:
2-1.CONTACT FINISH:30u" min.NICKEL UNDER PLATED,PLATED G/F ON CONTACT AREA;
TIN-PLATED HIGH-TEMPER ATURR 80u"-120u" ON SOLDER AREA.
2-2.SHELL FINISH:Cleaning.
3.ELECTRICAL SPECIFICATIONS:
3-1.OPERATING VOLTAGE:250V (AC/DC).
3-2.CURRENT RATING:0.5A.
3-3.OPERATING TEMPERATURE:-40°C ~ +85°C
3-4.INSULATION RESISTANCE:1000 MΩ min. at 250V DC.
3-5.DIELECTRIC WITHSTANDING VOLTAGE:500V AC/1 minute.
3-6.CONTACT RESISTANCE:100mΩ max.
