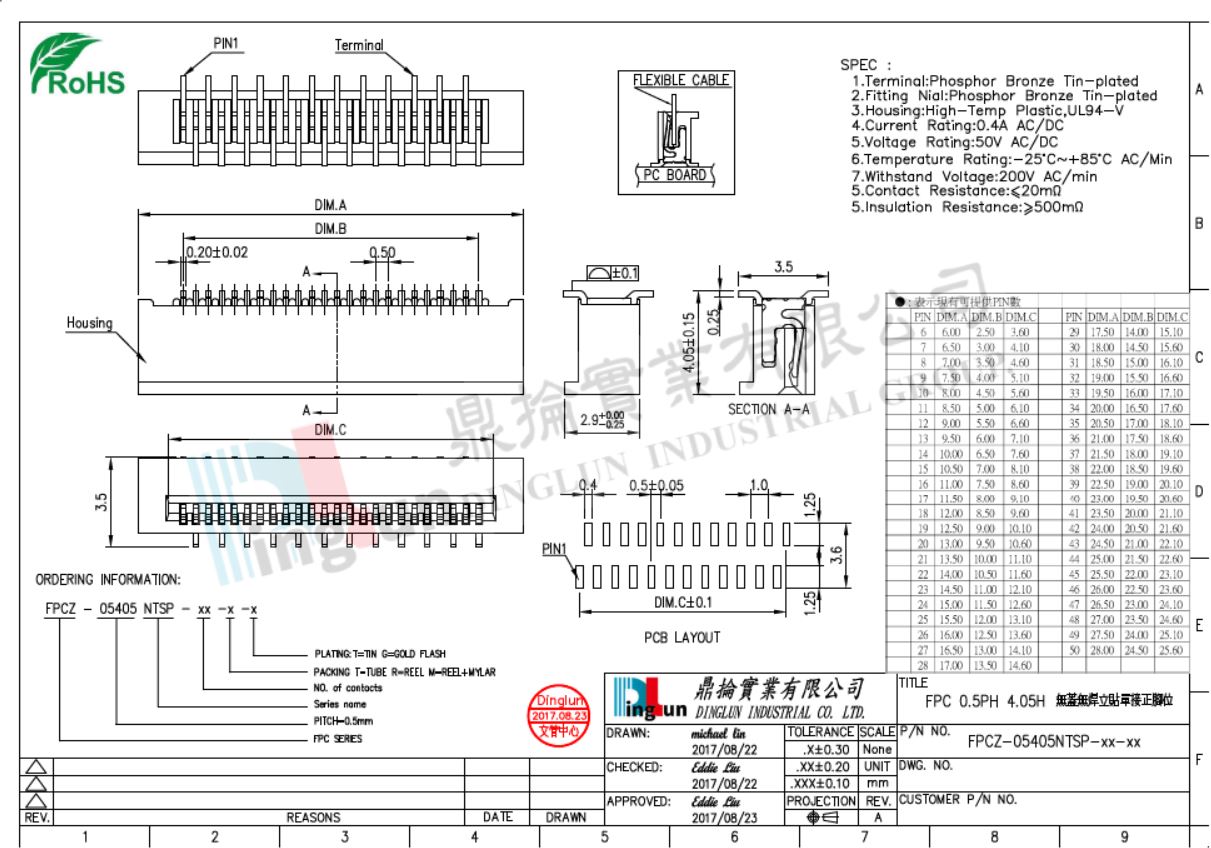

NON-ZIF0.5mm(0.020")

0.5PH H=4.05mm NON-ZIF SMT

Detail
Specifications :
1.Housing:High-Temp Plastic,UL94-V
   Color:White or Black
2.Locker:High-Temp Plastic,UL94-V
   Color:White or Black
3.Contact:Phosphor Bronze
   Initial:30m 0hms Max.
   Voltage Rating:50V AC,DC
4.Solder Tab:BRASS
5.Temperature Rating:-25°C~+85°C
6.Dielectric Withstanding Voltage:500V AC/Min
