Piano0.8mm(0.032")

0.8PH H=2.0mm Piano SMT

Detail

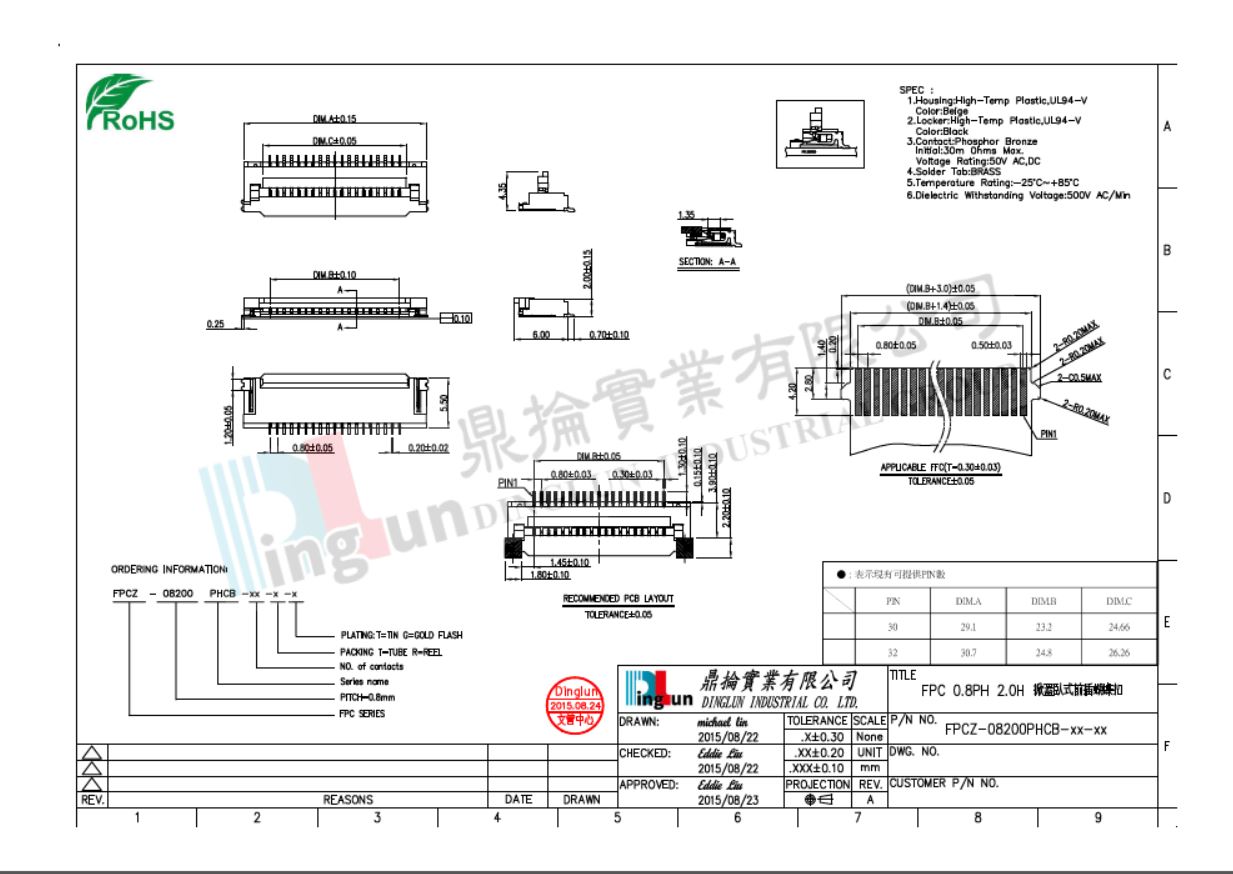

Specifications :
1.Housing:High-Temp Plastic,UL94-V
   Color:White or Black
2.Locker:High-Temp Plastic,UL94-V
   Color:White or Black
3.Contact:Phosphor Bronze
Initial:30m 0hms Max.
Voltage Rating:50V AC,DC
4.Solder Tab:BRASS
5.Temperature Rating:-25°C~+85°C
6.Dielectric Withstanding Voltage:500V AC/Min
