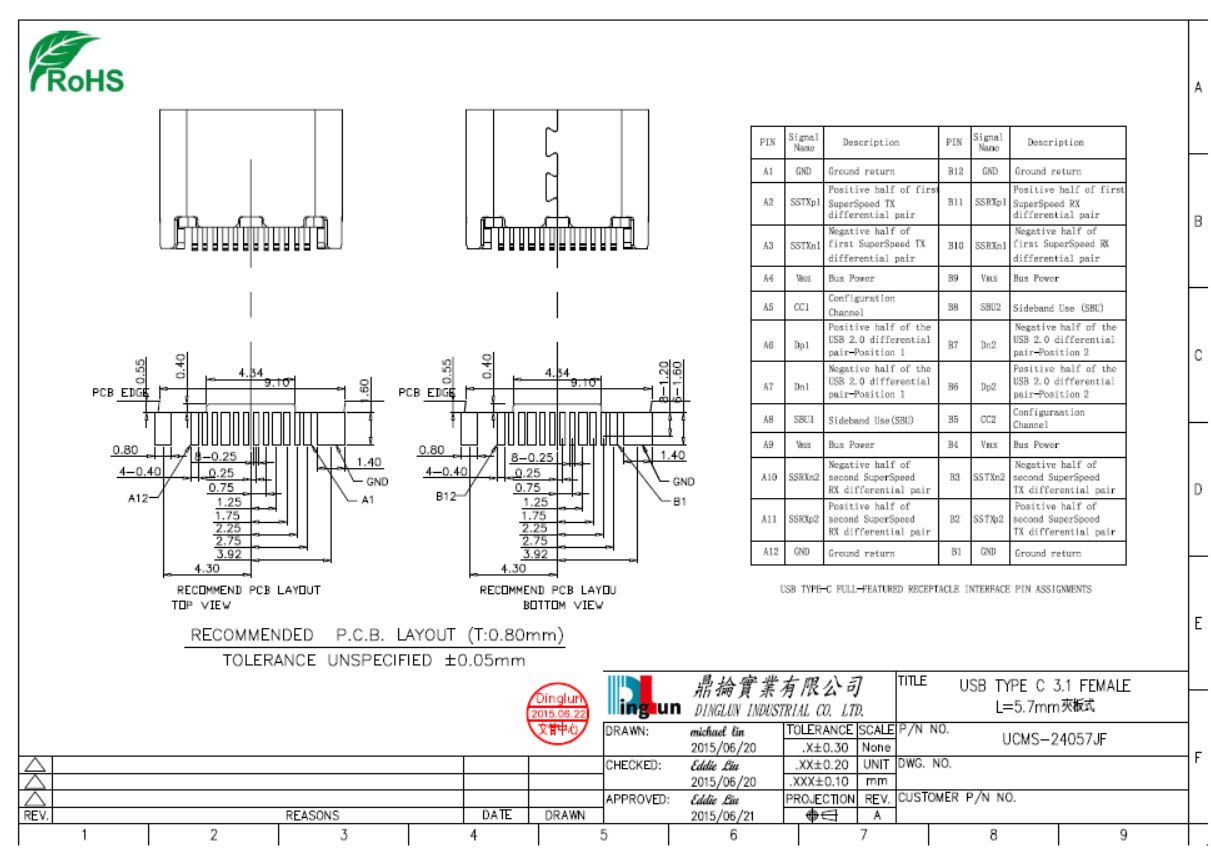

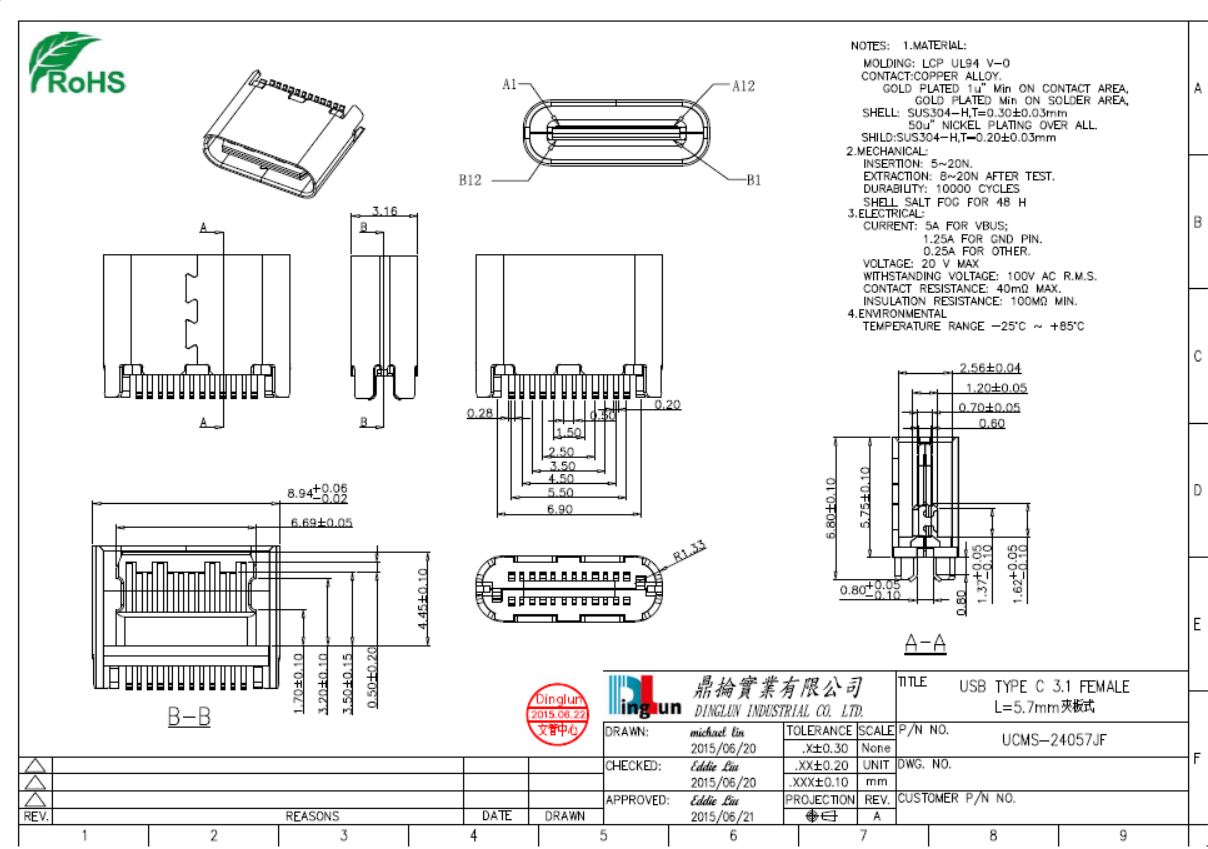

USB 3.1 TYPE C female seat 24P splint 0.8mm short body L=5.7mm harpoon foot welding plate

NOTES:
 1.MATERIAL:
  MOLDING:LCP UL94V-0
  CONTACT:COPPER ALLOY.
                    GOLD PLATED 1u" Min ON CONTACT AREA,
                    GOLD PLATED Min ON SOLDER AREA,
  SHELL:SUS304-T,T=0.30±0.03mm
              50u" NICKEL PLATING OVER ALL.
  SHILD:SUS304-H,T=0.20±0.03mm
 2.MECHANICAL:
   INSERTION:5~20N
   EXTRACTION:8~20N AFTER TEST.
   DURABILITY:10000 CYCLES
   SHELL SALT FOG FOR 48H
 3.ELECTRICAL:
   CURRENT:5A FOR VBUS;
                     1.25A FOR GND PIN.
                     0.25A FOR OTHER.
   VOLTAGE:20V MAX
   WITHSTANDING VOLTAGE:100V AC R.M.S.
   CONTACT RESISTANCE:40mΩ MAX.
   INSULATION RESISTANCE:100MΩ MIN.
 4.ENVIRONMENTAL
  TEMPERATURE RANCE -25°C ~ +85°C
