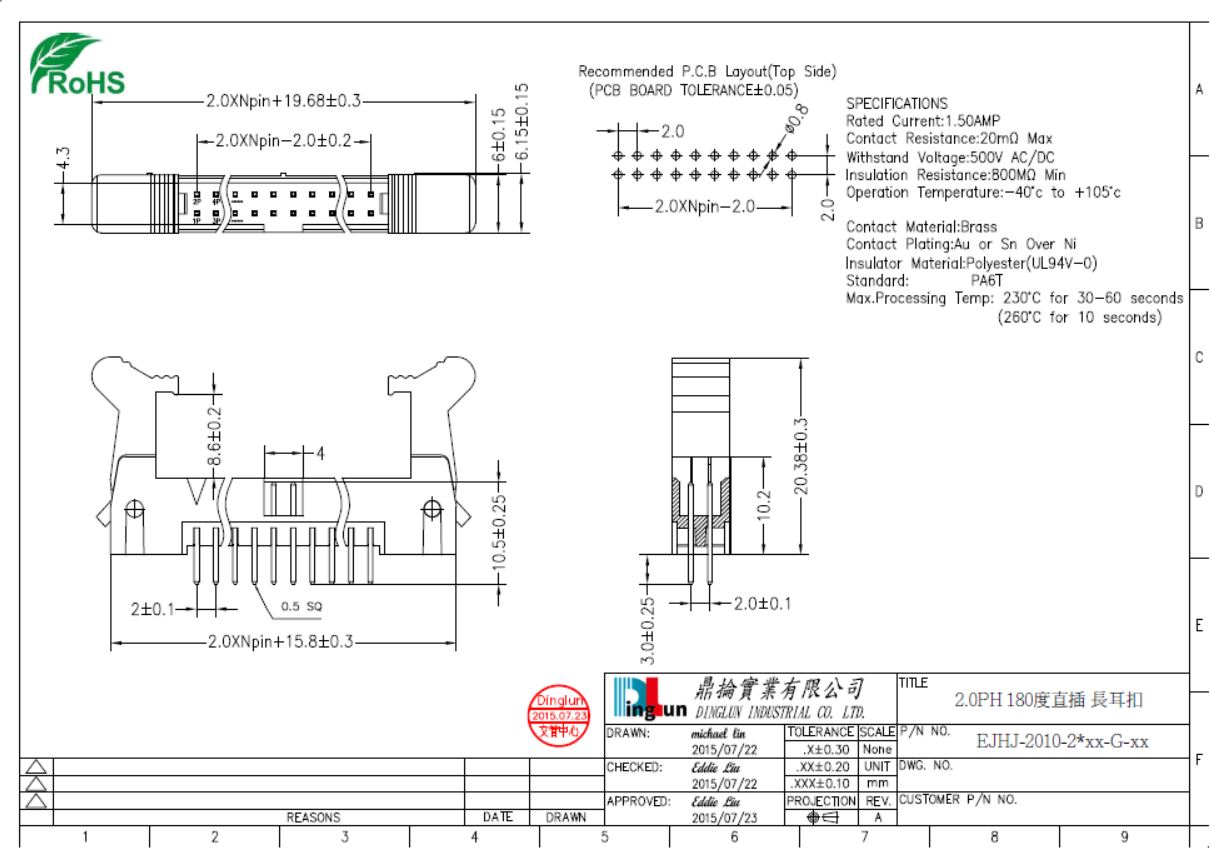

SPECIFICATIONS:
Rated Current:1.50AMP
Contact Resistance:20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:800MΩ Min
Operation Temperature:-40ºC to +105ºC
Contact Material:Brass
Contact Plating:Au or Sn Over Ni
Insulator Material:Polyester(UL94V-0)
Standard:PA6T
Max.Processing Temp:230ºC for 30-60 seconds(260ºC for 10 seconds)
