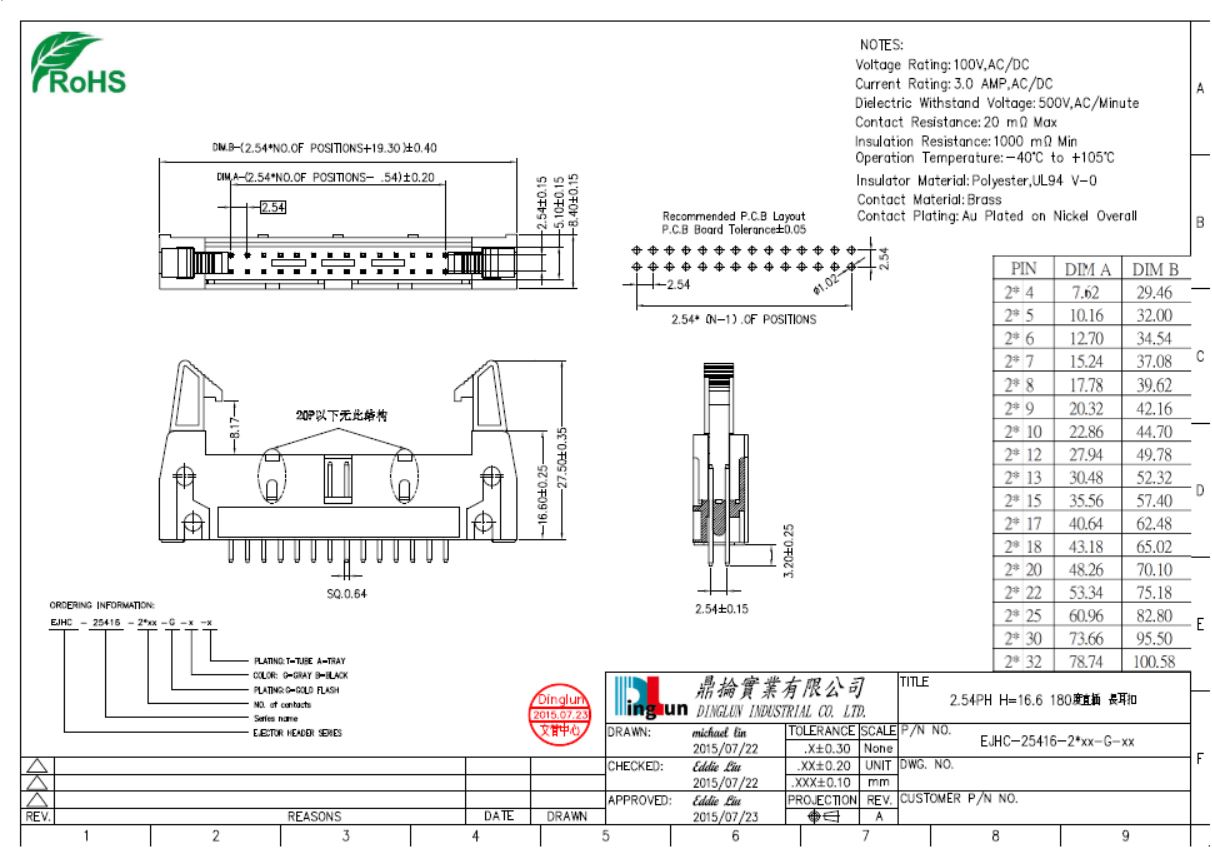

NOTES:
Voltage Rating:100V,AC/DC
Current Rating:3.0AMP,AC/DC
Dielectric Withstand Voltage:500V,AC/Minute
Contact Resistance:200mΩ Max
Insulation Resistance:1000mΩ Min
Operation Temperature:-40ºC to +105ºC
Insulator Material:Polyester,UL94V-0
Contact Material:Brass
Contact Plating:Au Plated on Nickel Overall
