NOTES:
1.MATERIAL:
INSULATOR:HIGH TEMPERATURE THERMO PLASTIC
FLAMMABILITY RARING:UL94V-0 COLOR:BLACK
CONTACT:COPPER ALLOYS
COVER:STAINLESS STEEL
2.CONTACT AREA PLATING:GOLD 15U" OVER NI
3.SOLDER TAIL COPLANARITY MUST BE WITHIN 0.1 MAX.

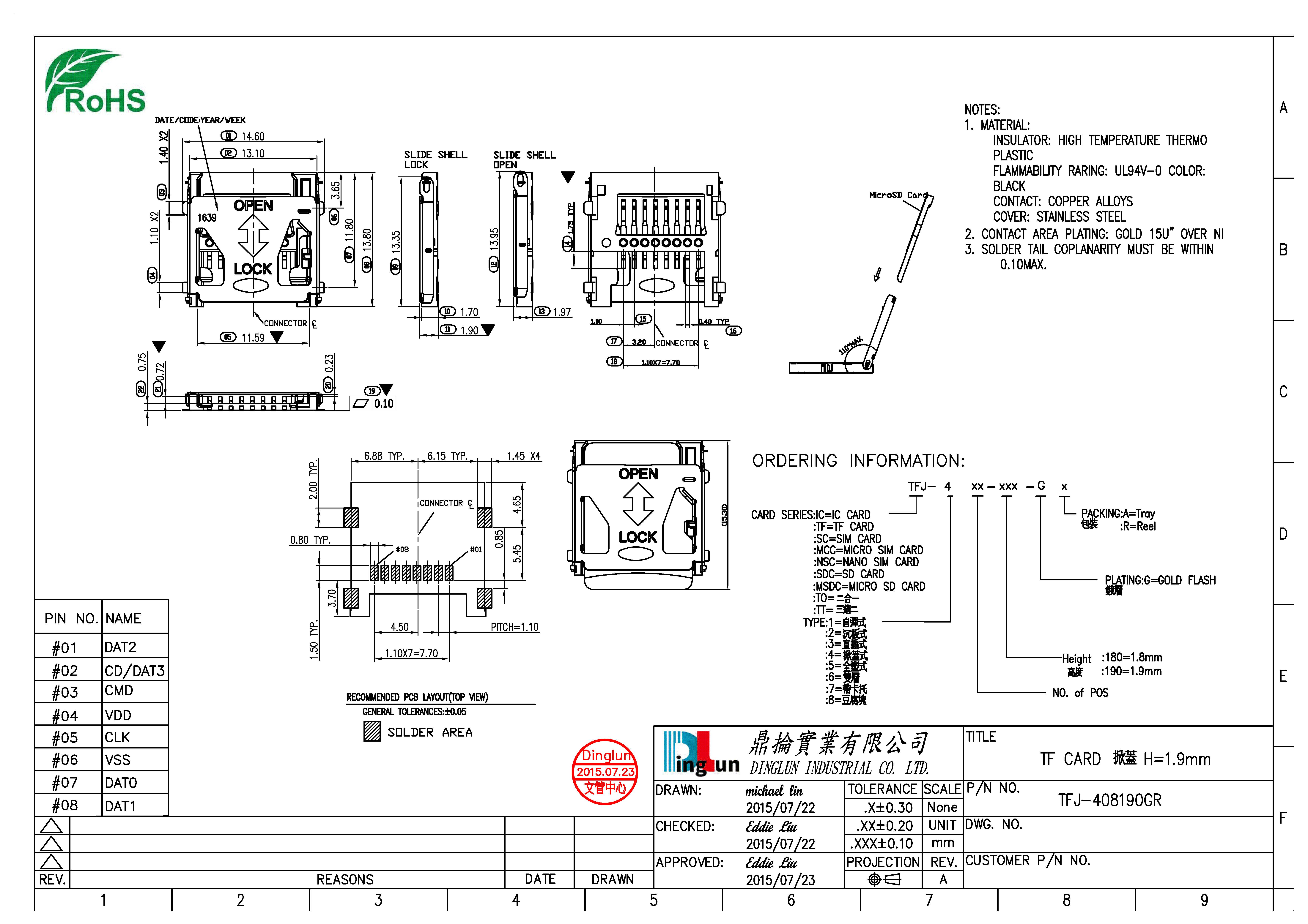

T-FLASH CARD CONNECTOR
T-FLASH CARD Connector
T-FLASH CARD H=1.9mm
Detail
NOTES:
1.MATERIAL:
INSULATOR:HIGH TEMPERATURE THERMO PLASTIC
FLAMMABILITY RARING:UL94V-0 COLOR:BLACK
CONTACT:COPPER ALLOYS
COVER:STAINLESS STEEL
2.CONTACT AREA PLATING:GOLD 15U" OVER NI
3.SOLDER TAIL COPLANARITY MUST BE WITHIN 0.1 MAX.
