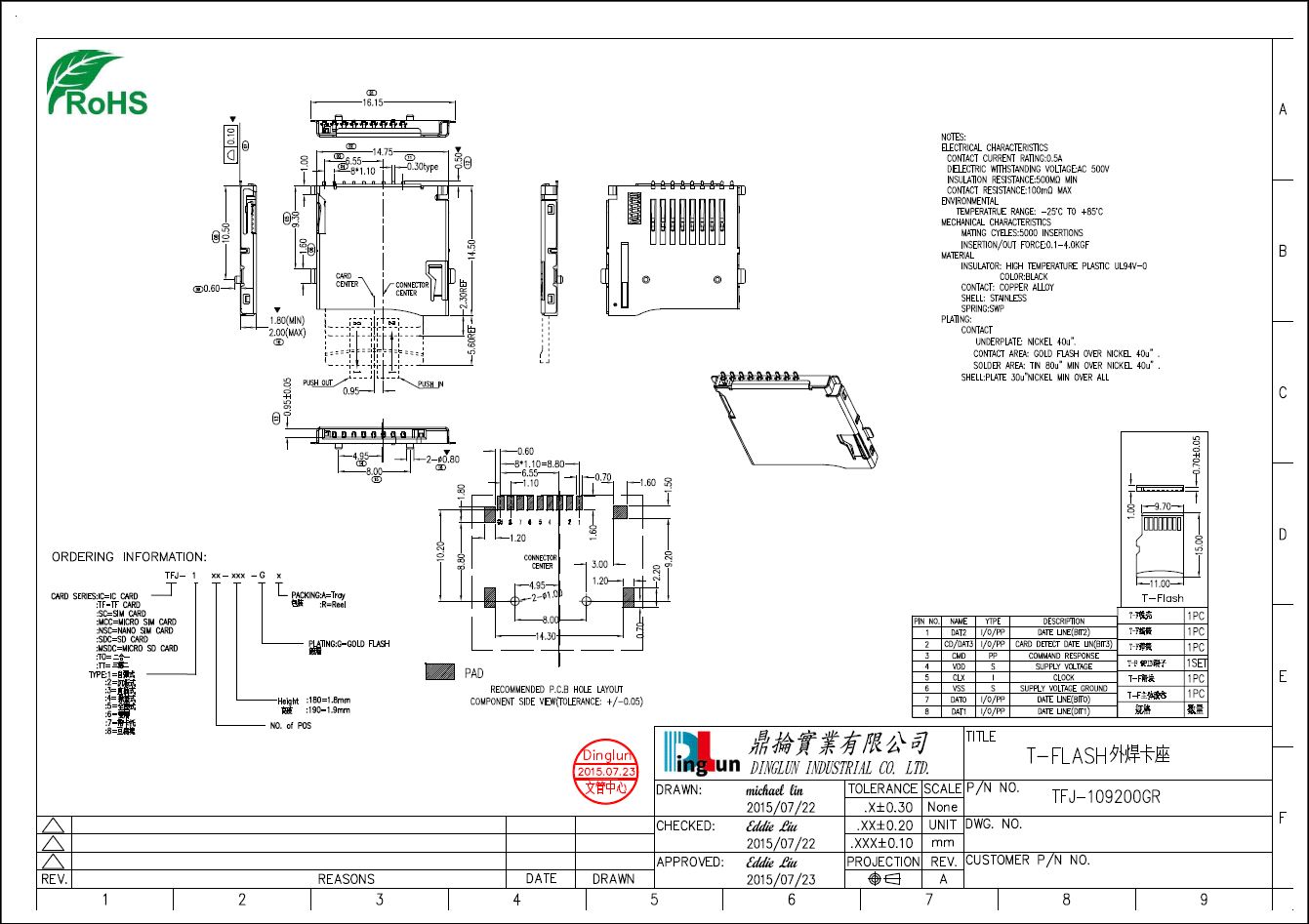

NOTES:
ELECTRICAL CHARACTERISTICS
CONTACT CURRENT RATING:0.5A
DIELECTRIC WITHSTANDING VOLTAGE:AC 500V
INSULATION RESISTANCE:500MΩ MIN
CONTACT RESISTANCE:100MΩ MAX
ENVIRONMENTAL
TEMPERATRUE RANGE:-25ºC TO +85ºC
MECHANICAL CHARACTERISTICS
MATING CYELLES:5000 INSERTIONS
INSERTION/OUT FORCE:0.1-4.0 KGF
MATERIAL
INSULATOR:HIGH TEMPERATURE PLASTIC UL94V-0 ,COLOR:BLACK
CONTACT:COPPER ALLOY
SHELL:STAINLESS
SPRING:SWP
PLATING:
CONTACT
UNDERPLATE:NICKEL 40u".
CONTACT AREA:GOLD FLASH OVER NICKEL 40u".
SOLDER AREA:TIN 80u" MIN OVER NICKEL 40u".
SKELL:PLATE 30u"NICKEL MIN OVER ALL
