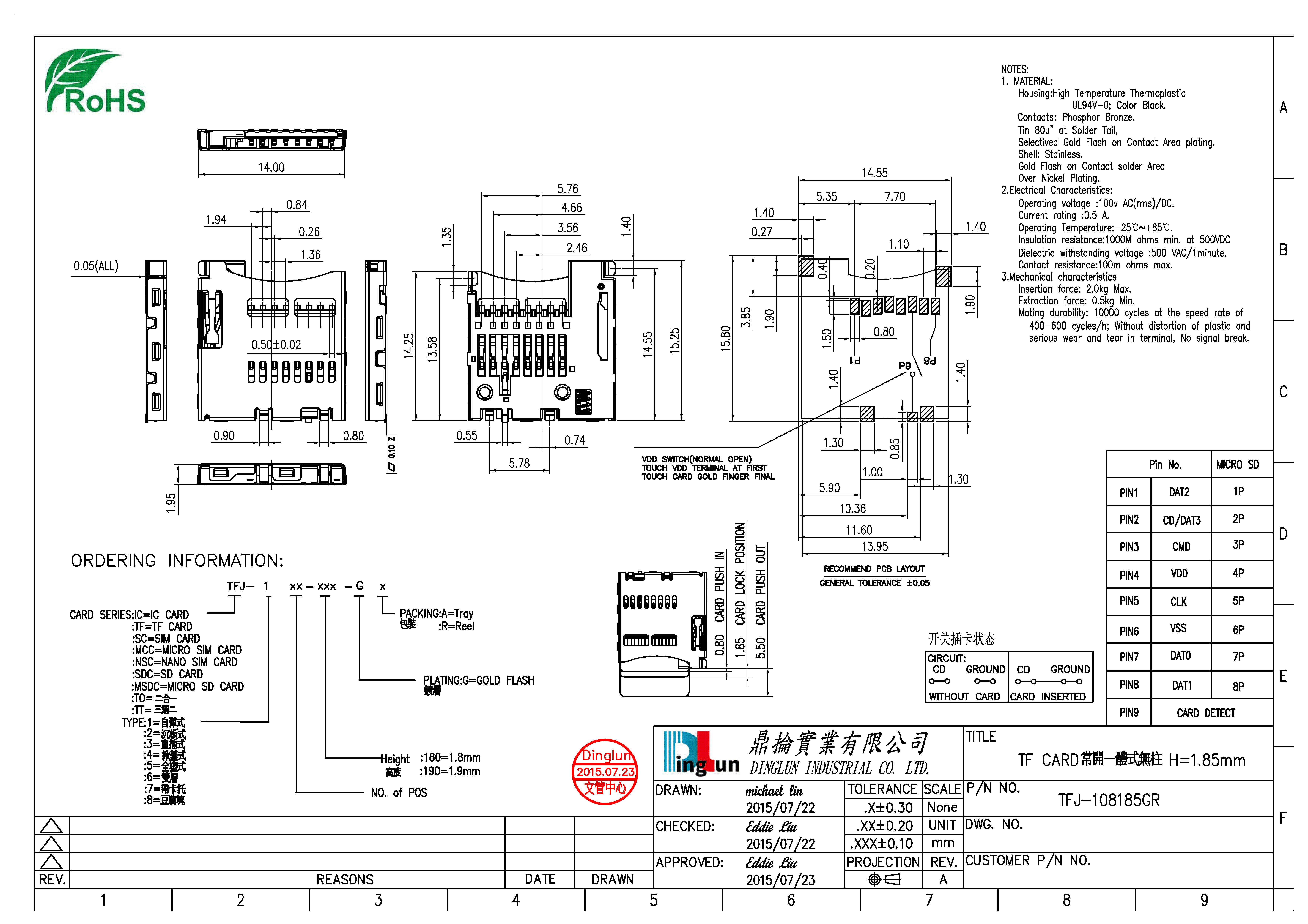

NOTES:
1.MATERIAL:
Housing:High Temperature Thermoplastic UL94V-0; Color:Black.
Contacts:Phosphor Bronze.
Tin 80u" at Solder Tail,
Selectived Gold Flash on Contact Area plating.
Shell:Stainless.
Gold Flash on Contact solder Area Over Nickel Plating.
2.Electrical Characteriatics:
Operating voltage:100V AC(rms)/DC.
Current rating:0.5A.
Operating Temperature:-25ºC ~ +85ºC.
Insulation resistance:1000M ohms min. at 500 VDC
Dielectric withstanding voltage:500 VAC/1minute.
Contact resistance:100m ohms max.
3.Mechanical characteristics
Insertion force:2.0kg Max.
Extraction force:0.5kg Min.
Mating durability:10000 cycles at the speed rate of 400-600 cycles/h;
Without distortion of plastic and serious wear and tear in terminal,NO signal break.
