Stop Maintenance Nightmares! How Professional Wire Marking Secures Your Electrical Systems

In the fields of electrical engineering, automated control, and control panel assembly, the dense "neural networks" of wiring can become a technician’s ultimate nightmare if not properly labeled. This is where Wire Marking and PVC Marker Sleeves (Ferrules) prove their worth. They are not mere decorations; they are the essential "ID cards" of an electrical system. This article explores the critical role of customized wire markers and how they elevate overall engineering quality.

1. Why Are Wire Markers the "Soul" of Electrical Engineering?

In a complex electromechanical circuit, every conductor carries a specific signal or power function. Unlabeled wiring is like a labyrinth without signs.

 1. Drastically Reducing MTTR (Mean Time to Repair)

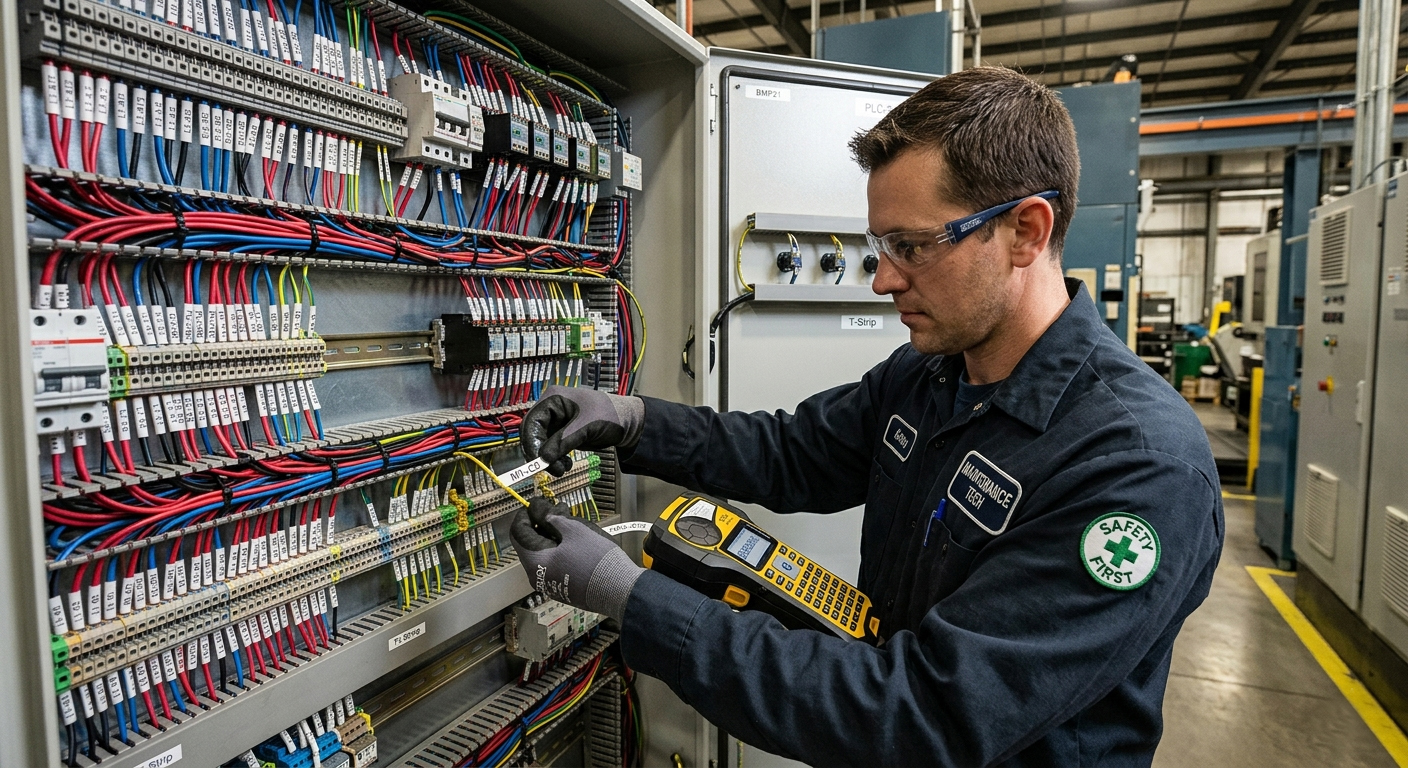

When equipment fails and downtime occurs, maintenance personnel must locate the target circuit instantly.

(1)Without Marking: Requires tedious point-to-point continuity testing with a multimeter, which is time-consuming and prone to risk.

(2)With Professional Marking: Technicians simply cross-reference the Circuit Diagram, allowing them to locate the circuit in seconds, improving maintenance efficiency by over 80%.

2. Minimizing Human Error and Short-Circuit Risks

During the assembly of large distribution cabinets or automated machinery, technicians face highly repetitive wiring tasks. Customized PVC markers ensure that each terminal connects to the correct contactor or relay, effectively preventing short circuits caused by miswiring.

3. Electrical Insulation and Physical Protection

Beyond identification, high-quality PVC sleeves provide an additional layer of protection:

(1)Electrical Insulation: Increases the dielectric strength at terminal junctions.

(2)Mechanical Protection: The toughness of PVC prevents conductors from peeling or fraying due to industrial vibrations or friction.

2. Key Technical Specs of High-Quality Wire Markers

Not all marker sleeves are built to withstand harsh industrial environments. When choosing customized services, focus on these technical indicators:

3. The Advantages of Customization: Professionalism and Standardization

For engineering contractors, OEMs, or maintenance providers, a unified and professional wire marking system is an extension of corporate brand identity.

1.Establishing Enterprise-Level SOPs
Mass printing via customized lists replaces handwritten tags, significantly reducing human error. Uniform fonts and orientations demonstrate a high level of engineering discipline.
2.Enhancing Client Trust
When a client opens a control panel to find neatly arranged and clearly labeled markers, it immediately conveys a sense of rigorous engineering and long-term maintainability.

Technical Q&A: Common Misconceptions in Wire Marking

Q1: Is there an official color-coding standard for wire markers?

A: General industrial applications typically use black print on white sleeves or black print on yellow sleeves for high contrast. Specialized sectors like medical or nuclear may use colors to denote voltage levels (e.g., red for AC, blue for DC control).

Q2: How can I prevent print fading over long-term use?

A: The secret lies in the quality of the Ribbon. High-quality thermal transfer ribbons contain a higher resin ratio, which creates a permanent molecular bond with the PVC surface, making it far more scratch-resistant than inkjet or low-end toner alternatives.

Q3: Why do some PVC sleeves become brittle after two years?

A: This is due to the use of low-grade PVC lacking UV stabilizers or proper plasticizers. Professional-grade markers ensure durability throughout the equipment's 10-15 year lifecycle.

A wire marker may be a tiny component, but it carries the entire logic of an industrial facility. Engineering projects that neglect labeling are often setting the stage for future catastrophic failures.
