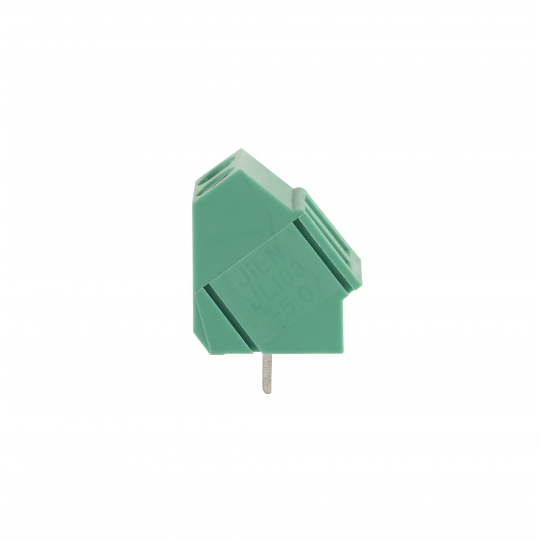

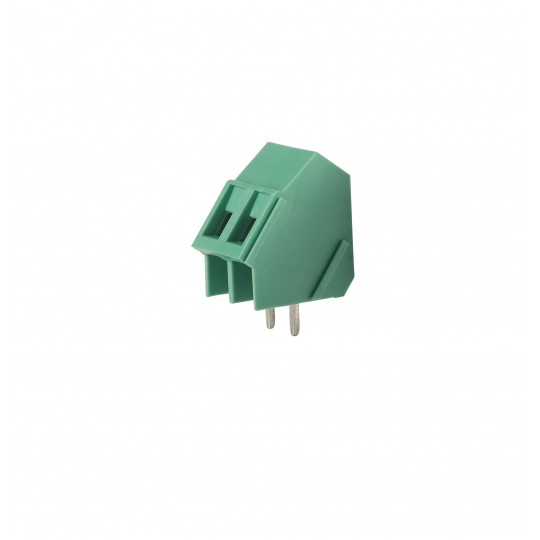

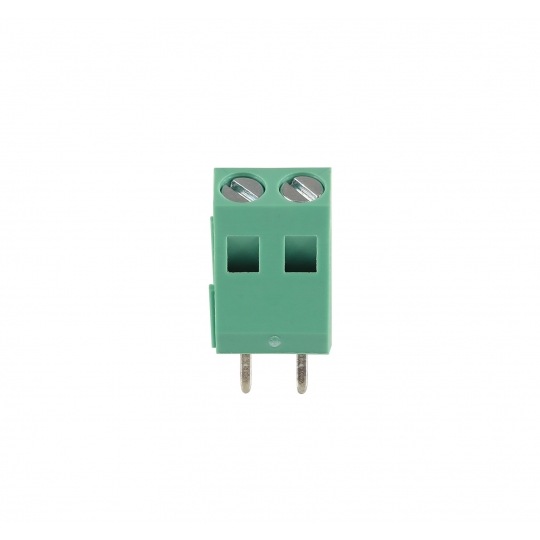

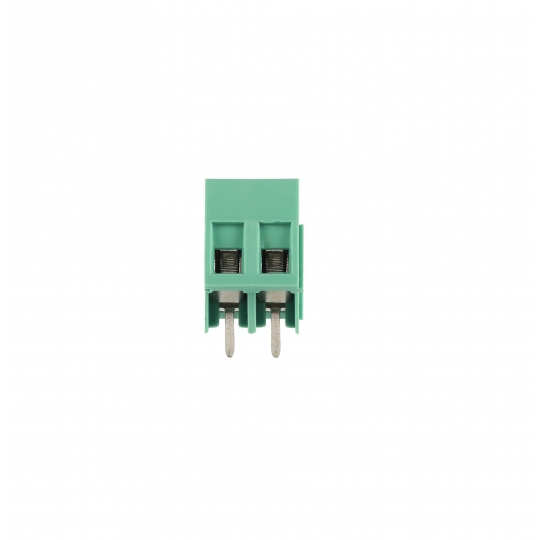

PCB Universal Screw Terminal Blocks Connector
PH5.0mm/2P-24P PCB Universal Screw Terminal Blocks connector
Detail
Rated:300V,10A
Dielectric strength:AC1500V/1 Minute
Insulation Resistance:500MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.4Nm(3.5Lb.in)
Wire Range:24~12AWG
Strip length:6~7mm
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Brass,Tin plating
Clamp:Brass/Steel,Ni plating
Screw:M2.5,Steel,Zinc plating
