PCB Universal Screw Terminal Blocks Connector

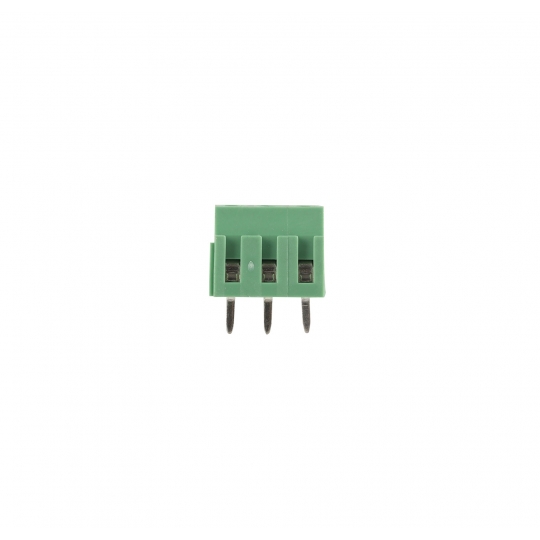

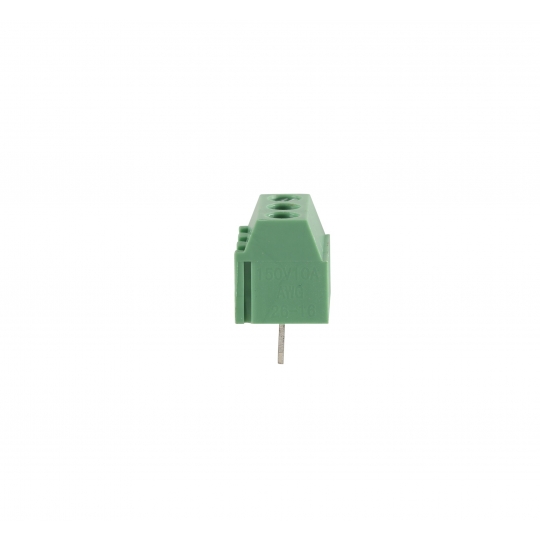

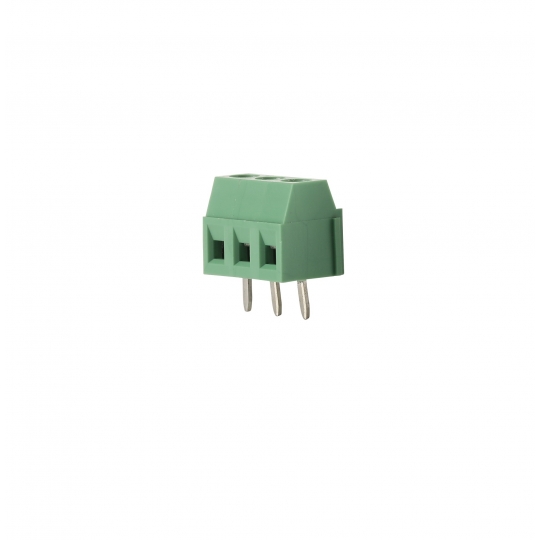

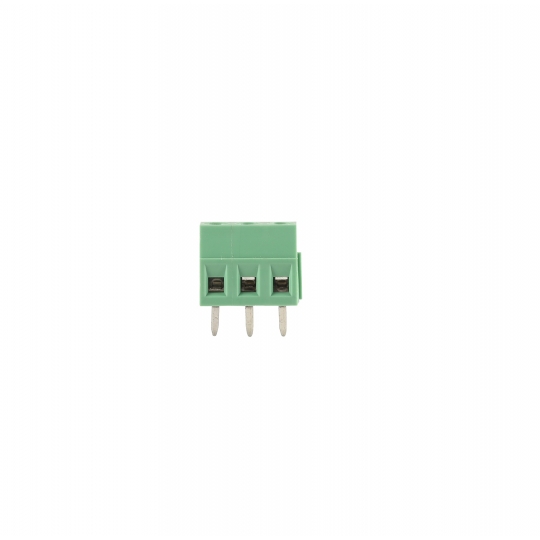

PH3.81mm/2P-12P PCB Universal Screw Terminal Blocks connector
Detail
Rated:150V,10A
Dielectric strength:AC1500V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.2Nm(1.7Lb.in)
Wire Range:26~16AWG
Strip length:5~6mm
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Brass,Tin plating
Wire protector:Brass,Ni plating
Screw:M2.0,Steel,Zinc plating
