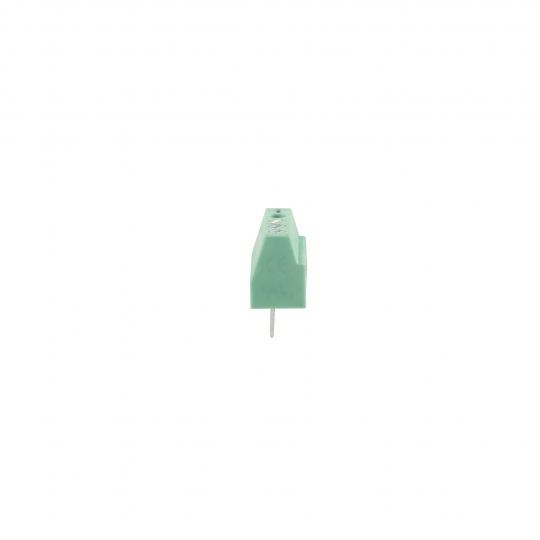

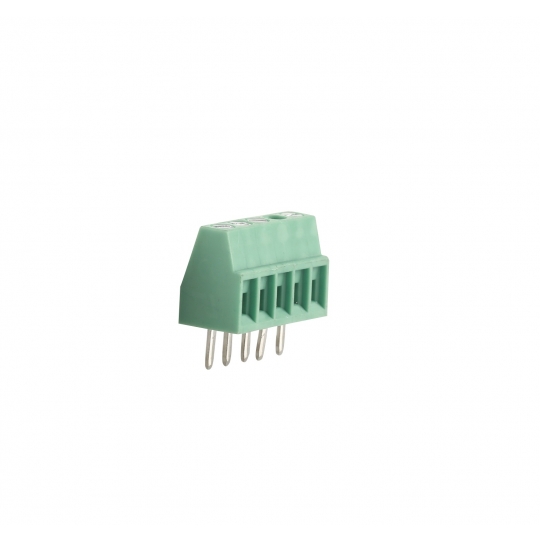

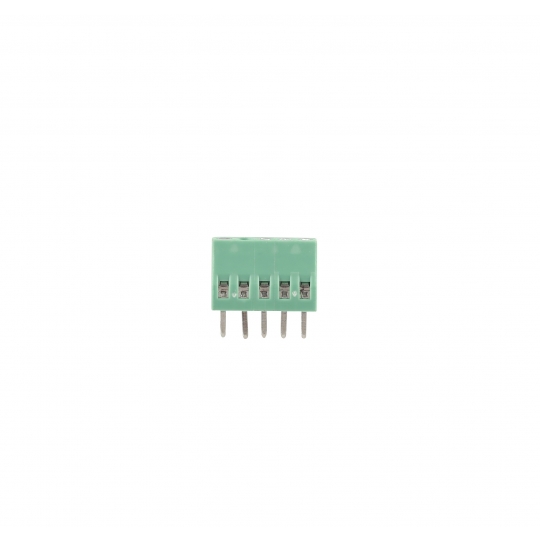

PCB Universal Screw Terminal Blocks Connector
PH2.54mm/2P-12P PCB Universal Screw Terminal Blocks connector
Detail
Rated:150V,6A
Dielectric strength:AC1500V/1 Minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Screw Torque:0.10Nm(0.89Lb.in)
Wire Range:26~18AWG
Strip length:3.7~4.7mm
Temp.range:-40°C~+105°C
MAX Soldering:+250°C,5s
Housing Material:PA66(UL94 V-0)
Contact:Brass,Tin plating
Clamp:Brass/Steel,Ni plating
Screw:M1.6,Steel,Zinc plating
