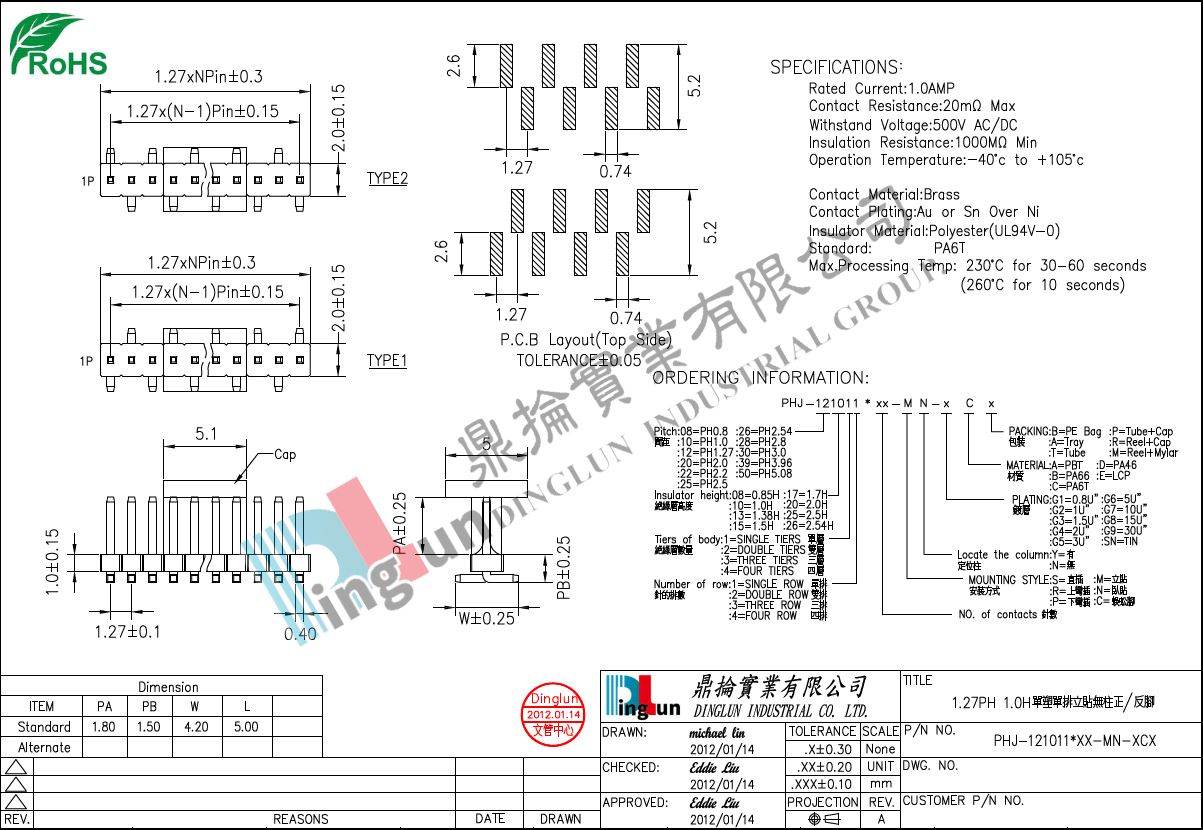

SPECIFICATIONS:
Rated Current:1.0AMP
Contact Resistance:20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature:-40ºC to +105ºC
Contact Material:Brass
Contact Plating:Au or Sn Over Ni
Insulator Material:Polyester(UL94V-0)
Standard: PA6T
Max.Processing Temp:230ºC for 30-60 seconds(260ºC for 10 seconds)
Pin Header are generally widely used in the connection of PCB boards, with the reputation of universal connector. Generally, they are paired with connectors such as busbar and wire end. With the competition in the pin connector market, some manufacturers now start with electroplating (imitation gold) and materials (green clad steel, alloy, etc.) to reduce costs, but also reduce the service characteristics and service life of products.
