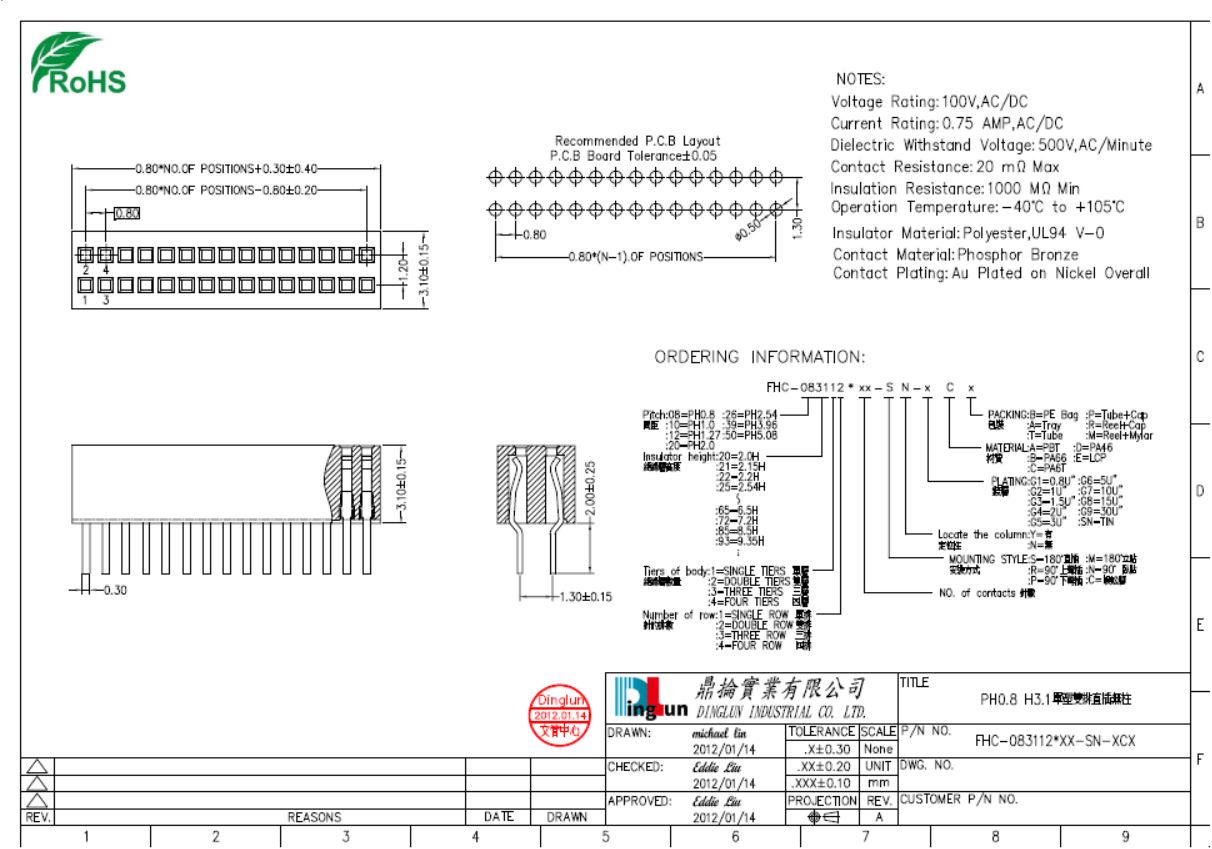

NOTES:
Voltage Rating:100V,AC/DC
Current Rating:0.75 AMP,AC/DC
Dielectric Withstand Voltage:500V,AC/Minute
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Operation Temperature:-40°C to +105°C
Insulator Material:Polyester,UL94V-0
Contact Material:Phosphor Bronze
Contact Plating:Au Plated on Nickel Overall
