USB 3.0 CONNECTOR

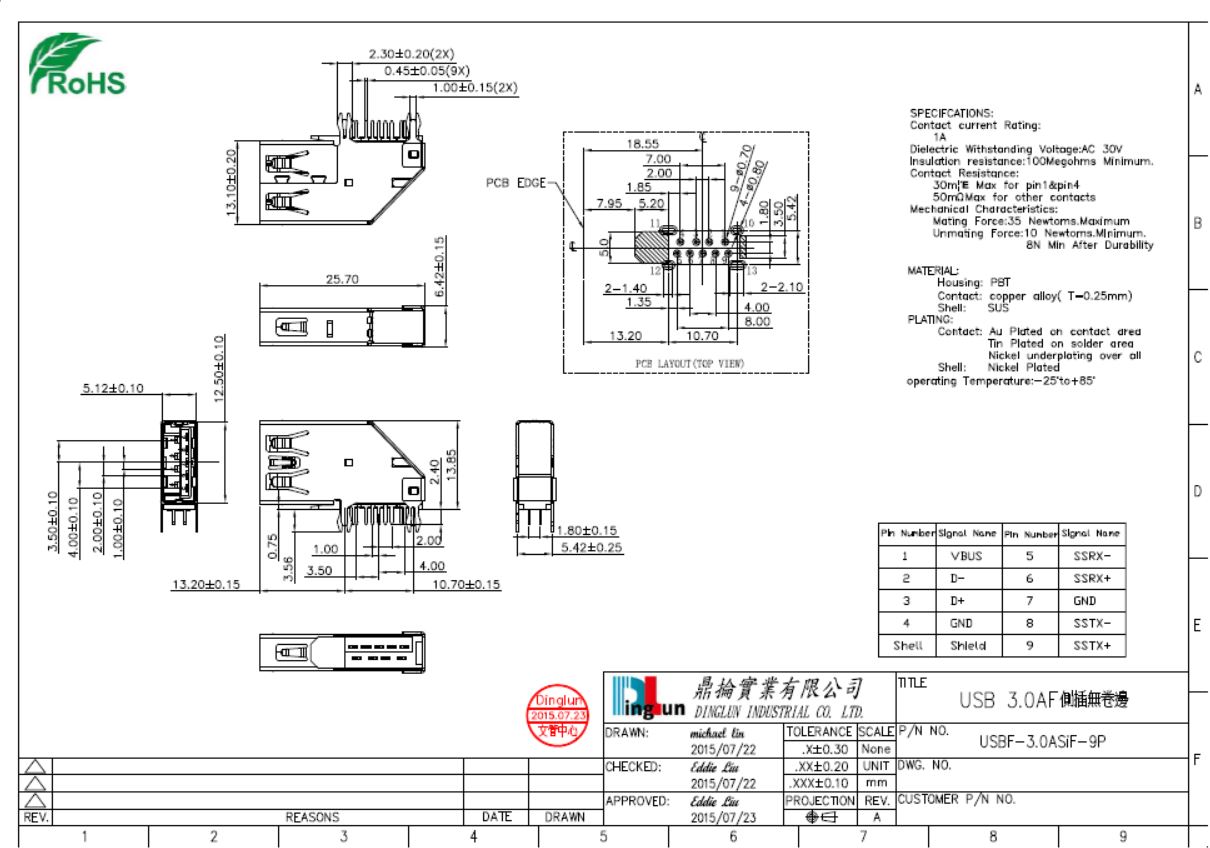

USB 3.0 female socket 9P side plug without curling edge

USB 3.0 female socket 9P side plug without curling edge
Detail

SPECIFCATIONS:
 Contact current Rating:1A
 Dielectric Withstanding Voltage:AC 30V
 Insulation resistance:100Megohms Minimum.
 Contact Resistance:30m¦'E Max for pin 1 & pin 4
                                    50mΩ Max for other contacts
 Mechanical Characteriatics:
   Mating Force:35 Newtoms.Maximum
   Unmating Force:10 Newtoms.Mlnimum.
                                 8N Min After Durability
MATERIAL:
 Housing:PBT
 Contact:copper alloy(T=0.25mm)
 Shell:SUS
 PLATING:
  Contact:Au Plated on contact area
                 Tin Plated on solder area
                 Nickel underplating over all
  Shell:Nickel Plated
 operating Temperature:-25° to +85°
