USB 2.0 CONNECTOR

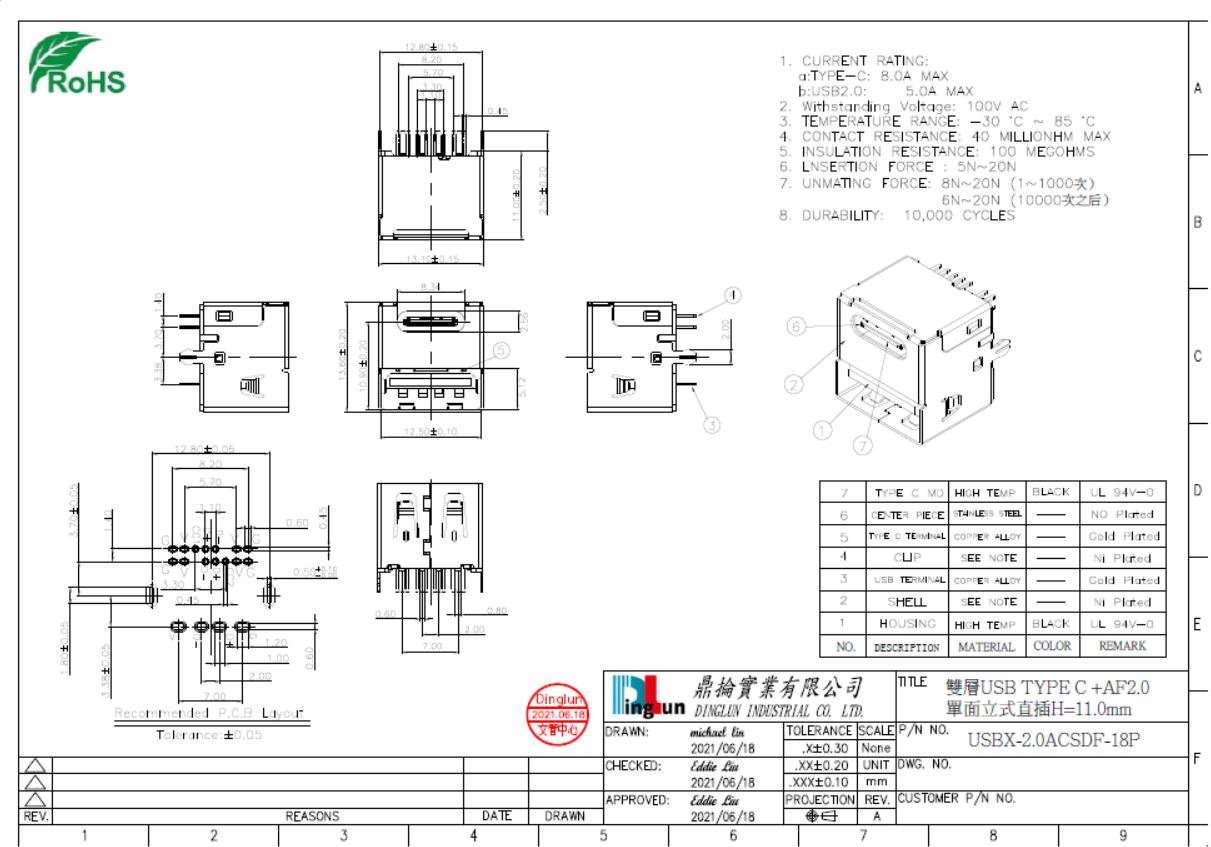

Double-layer USB TYPE C+AF2.0 single-sided vertical plug H=11.0mm

Double-layer USB TYPE C+AF2.0 single-sided vertical plug H=11.0mm
Detail

CURRENT RATING:
 a:TYPE C:8.0A MAX
 b:USB2.0:5.0A MAX
Withatanding Voltage:100V AC
TEMPERATURE RANGE:-30°C ~ 85°C
CONTACT RESISTANCE:40 MILLONHM MAX
INSULATION RESISTANCE:100 MEGOHMS
LNSERTION FORCE:5N ~ 20N
UNMATING FORCE:8N ~ 20N(1~1000times)
                                  6N ~ 20N(After 10000 times)
DURABILITY:10,000 CYCLES
