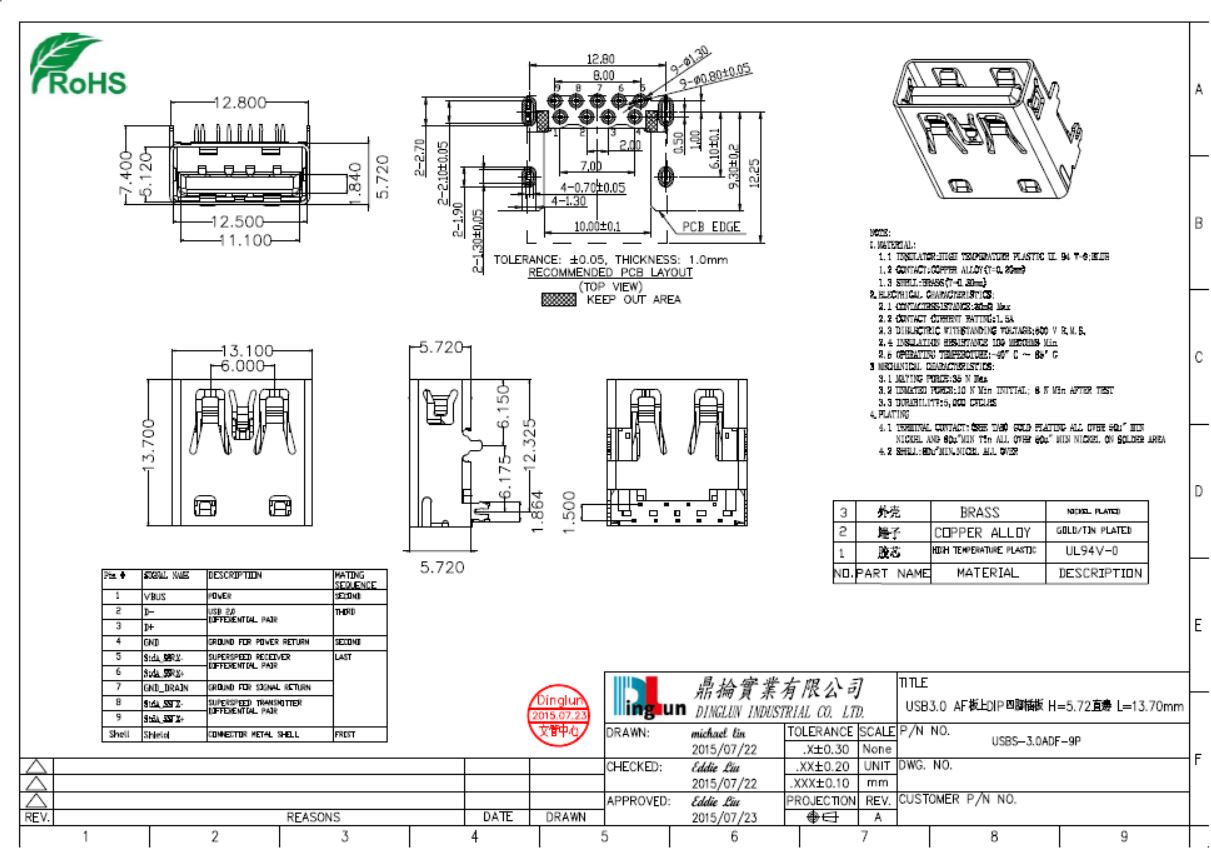

NOTE:
1.MATERIAL:
1-1.INSULATOR:HIGH TEMPERATURE PLASTIC UL 94V-0;BLUE
1-2.CONTACT:COPPER ALLOY(T=0.20mm)
1-3.SHELL:BRASS(T=0.30mm)
2.ELECTRICAL CHARACTERISTICS:
2-1.CONTACTRESISTANCE:30mΩ Max
2-2.CONTACT CURRENT RATING:1.5A
2-3.DIELECTRIC WITHSTANDING VOLTAGE:500V R.M.S.
2-4.INSULATION RESISTANCE 100 MEGOHMS Min
2-5.OPERATING TEMPEROTURE:-40°C ~ 85°C
3.MECHANICAL CHARACTERISTICS:
3-1.MATING FORCE:35N Max
3-2.UNMATED FORCE:10N Min INITIAL;8N Min AFTER TEST
3-3.DURABILITY:5000 CYCLES
4.PLATING:
4-1.TERMINAL CONTACT:(SEE TAB) GOLD PLATING ALL OVER 50u" MIN
NICKEL AND 80u" MIN Tin ALL OVER 50u" MIN NICKEL ON SOLDER AREA
4-2.SHELL:80u" MIN. NICEL ALL OVER
