USB TYPE C MALE CONNECTOR

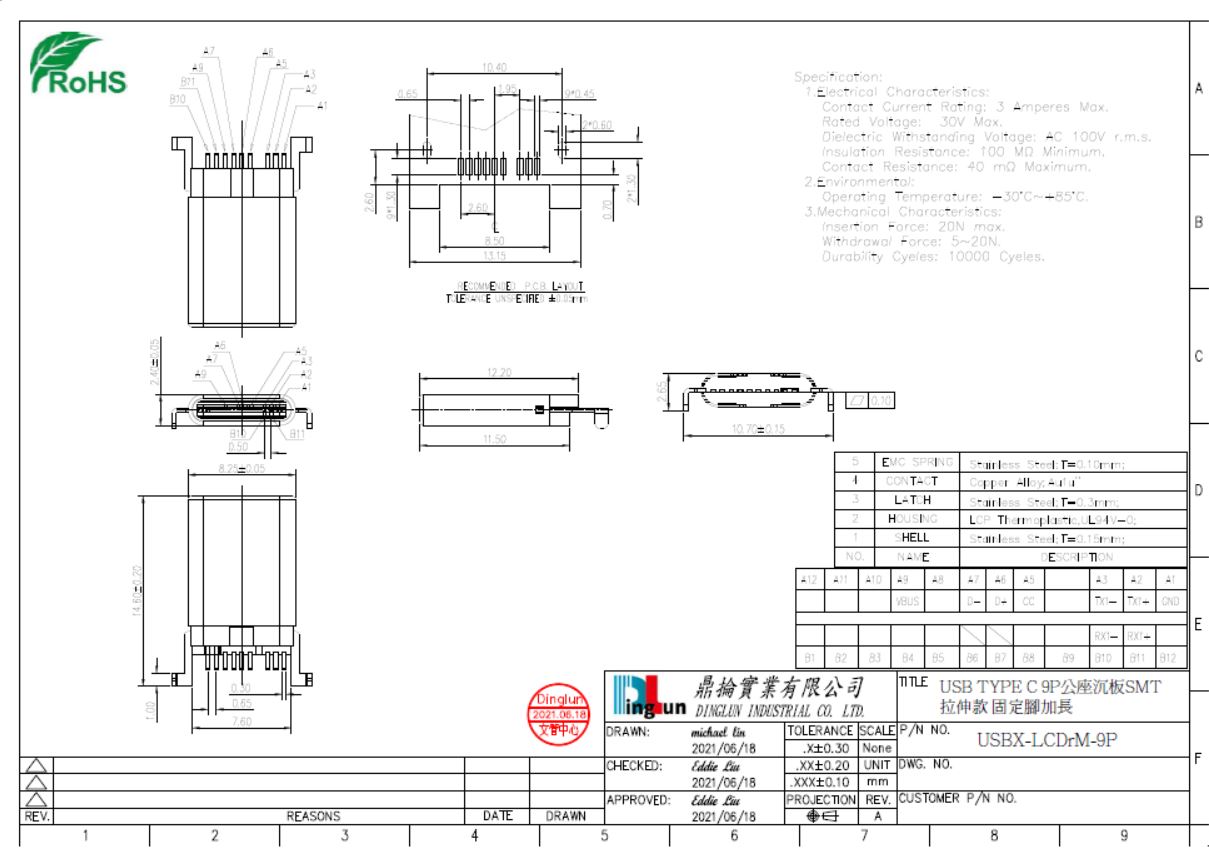

USB 3.1 TYPE C male connector 9PIN sinking version SMT stretch version with extended fixed feet

USB 3.1 TYPE C male connector 9PIN sinking version SMT stretch version with extended f...
Detail


Specification:
 1.Electrical Characteristics:
   Contact Current Rating:3 Amperes Max.
   Rated Voltage:30V Max.
   Dielectric Withstanding Voltage:AC 100V r.m.s.
   Insulation Resistance:100 MΩ Minimum.
   Contact Resistance:40 mΩ Maximum.
 2.Environmental:
   Operating Temperature:-30°C ~ +85°C.
 3.Mechanical Characteristics:
   Insertion Force:20N max.
   Withdrawal Force:5~20N.
   Durability Cyeles:10000 Cyeles.
