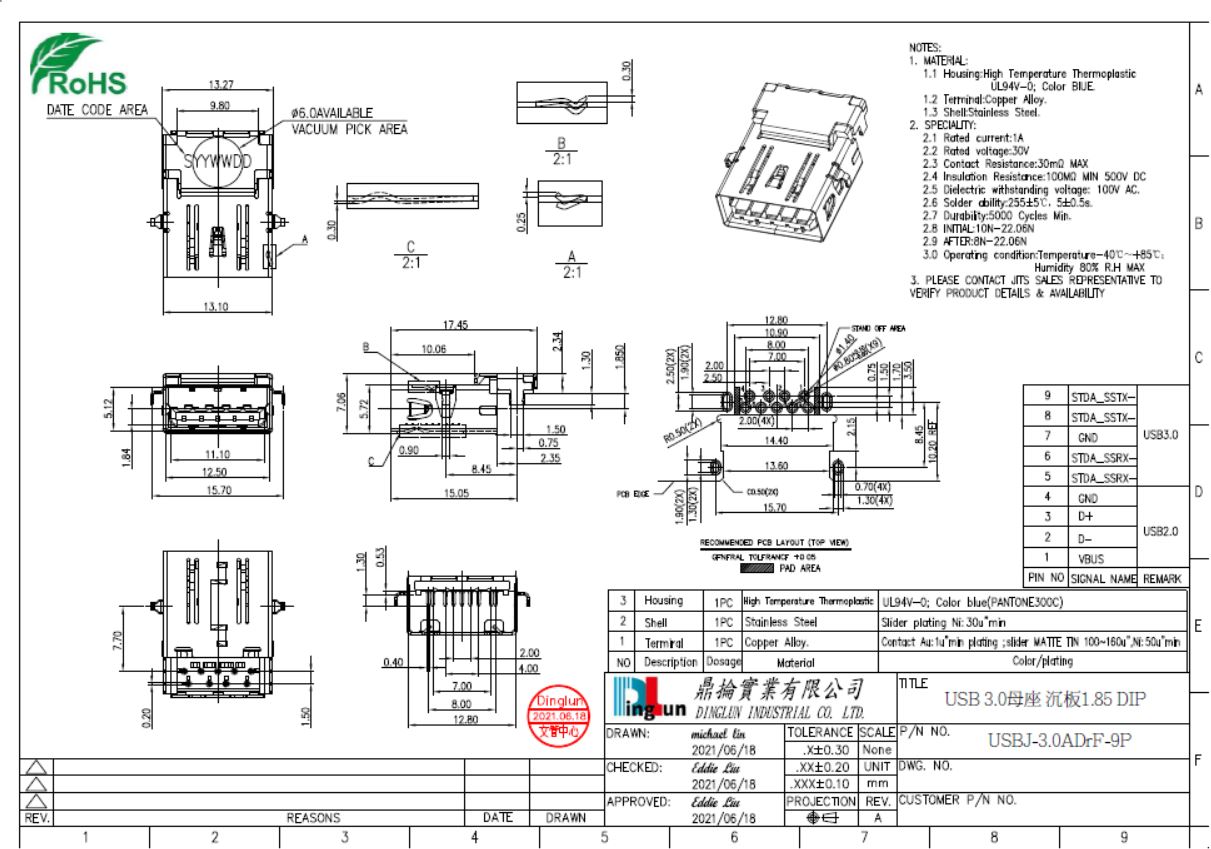

NOTES:
1.MATERIAL:
1-1.Housing:High Temperature Thermoplastic UL94V-0; Color BLUE.
1-2.Terminal:Copper Alloy.
1-3.Shell:Stainless Steel.
2.SPECIALITY:
2-1.Rated current:1A
2-2.Rated voltage:30V
2-3.Contact Resistance:30mΩ MAX
2-4.Insulation Resistance:100MΩ MIN 500V DC
2-5.Dielectric withstanding voltage:100V AC.
2-6.Solder ability:255±5°C, 5±0.5s.
2-7.Durability:5000 Cycles Min.
2-8.INITIAL:10N~22.06N
2-9.AFTER:8N~22.06N
2-10.Operating condition:Temperature -40°C ~+85°C;Humidity 80% R.H MAX
3.PLEASE CONTACT JITS SALES REPRESENTATIVE TO VERIFY PRODUCT DETAILS & AVAILABILITY
