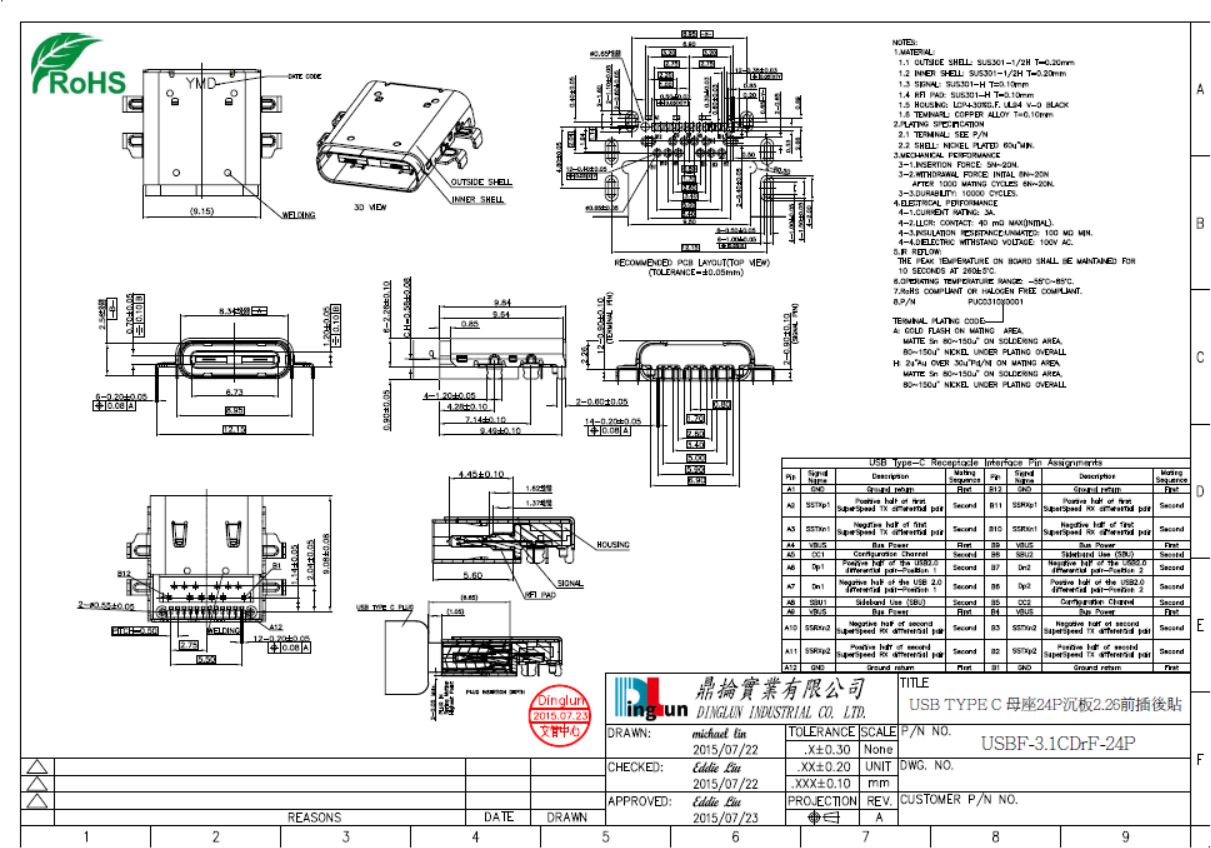

NOTES:
1.MATERIAL:
1-1.OUTSIDE SHELL:SUS301-1/2H T=0.20mm
1-2.INNER SHELL:SUS301-1/2H T=0.20mm
1-3.SIGNAL:SUS301-H T=0.10mm
1-4.RFI PAD:SUS301-H T=0.10mm
1-5.HOUSING:LCP+30% G.F. UL94V-0 BLACK
1-6.TEMINARL:COPPER ALLOY T=0.10mm
2.PLATING SPECIFICATION:
2-1.TERMINAL:SEE P/N
2-2.SHELL:NICKEL PLATED 60u" MIN.
3.MECHANICAL PERFORMANCE:
3-1.INSERTION FORCE:5N~20N.
3-2.WITHDRAWAL FORCE:INITAL 8N~20N
AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY:10000 CYCLES.
4.ELECTRICAL PERFORMANCE:
4-1.CURRENT RATING:3A.
4-2.LLCR:CONTACT:40 mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED:100 MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE:100V AC.
5.IR REFLOW:
THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE:-55°C ~ 85°C.
7.ROHS COMPLIANT OR HALOGEN FREE COMPLIANT.
