USB TYPE C FEMALE CONNECTOR

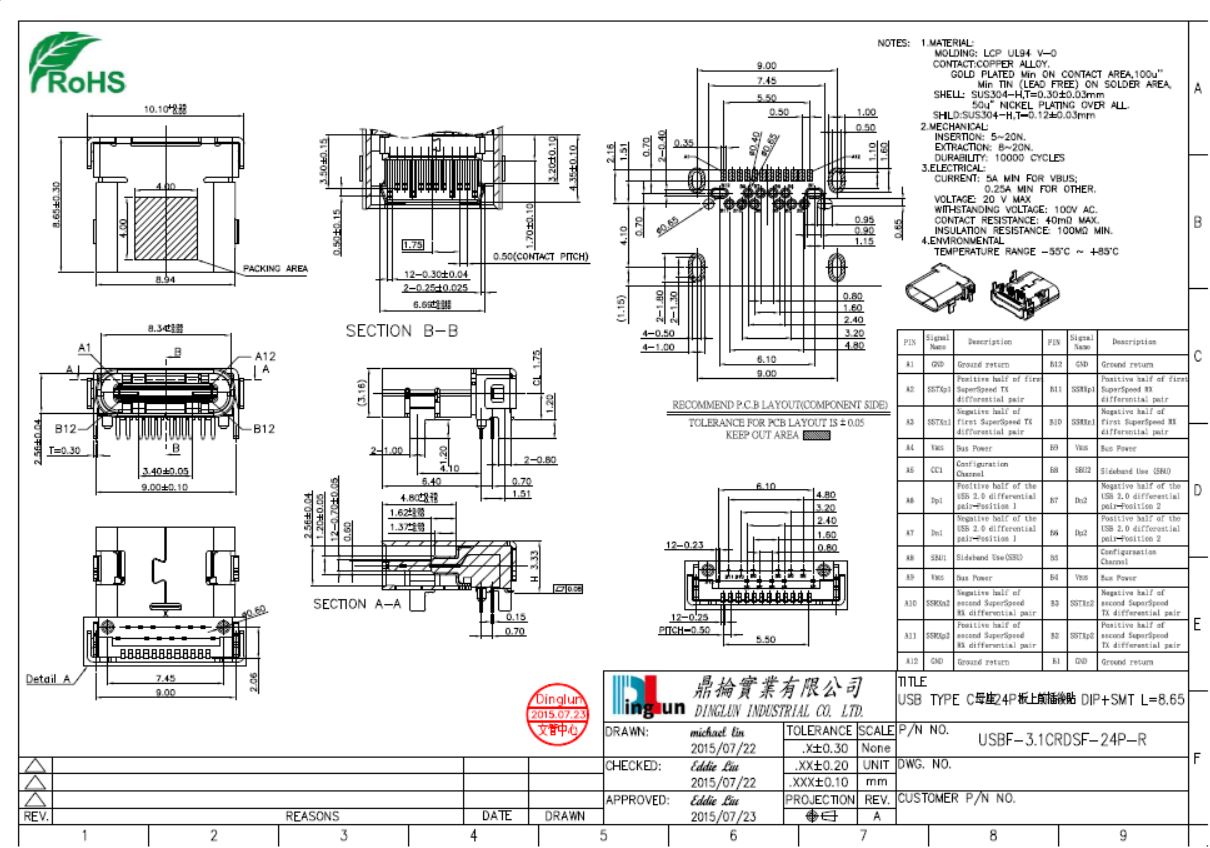

USB 3.1 TYPE C female socket 24P on board, front plug and rear post DIP+SMT L=8.65mm

USB 3.1 TYPE C female socket 24P on board, front plug and rear post DIP+SMT L=8.65mm
Detail


NOTES:
 1.MATERIAL:
   MOLDING:LCP UL94V-0
   CONTACT:COPPER ALLOY.
                      GOLD PLATED Min ON CONTACT AREA, 100u" Min TIN(LEAD FREE) ON SOLDER AREA,
   SHELL:SUS304-H,T=0.30±0.03mm 50u" NICKEL PLATING OVER ALL.
   SHILD:SUS304-H,T=0.12±0.03mm
 2.MECHANICAL:
   INSERTION:5~20N.
   EXTRACTION:8~20N
   DURABILITY:10000 CYCLES
 3.ELECTRICAL:
   CURRENT:5A MIN FOR VBUS;0.25A MIN FOR OTHER.
   VOLTAGE:20V MAX
   WITHSTANDING VOLTAGE:100V AC.
   CONTACT RESISTANCE:40mΩ MAX.
   INSULATION RESISTANCE:100MΩ MIN.
 4.ENVIRONMENTAL:
   TEMPERATURE RANGE -55°C ~ +85°C
