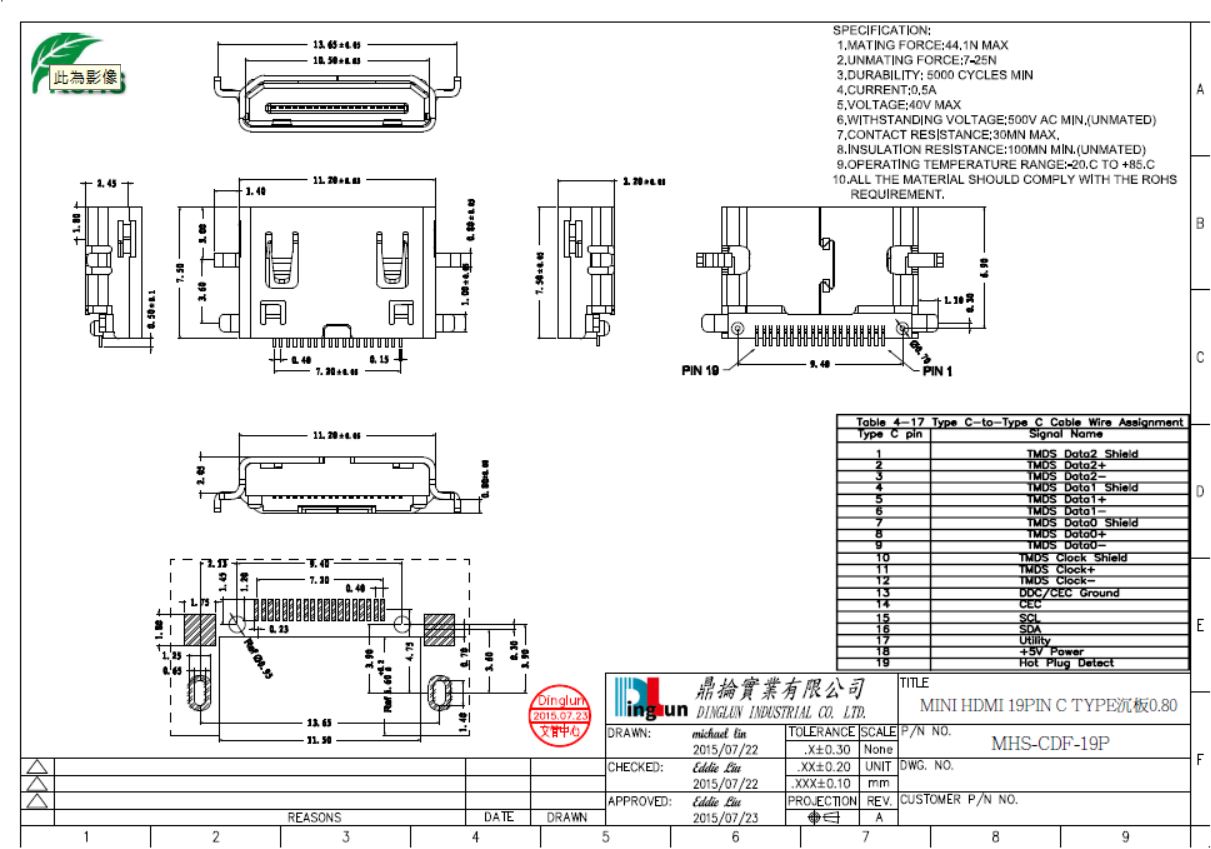

SPECIFICATION:
1.MATING FORCE:44.1N MAX
2.UNMATING FORCE:7~25N
3.DURABILITY:5000 CYCLES MIN
4.CURRENT:0.5A
5.VOLTAGE:40V MAX
6.WITHSTANDING VOLTAGE:500V AC MIN.(UNMATED)
7.CONTACT RESISTANCE:30MN MAX.
8.INSULATION RESISTANCE:100MN MIN.(UNMATED)
9.OPERATING TEMPERATURE RANGE:-20°C TO +85°C
10.ALL THE MATERIAL SHOULD COMPLY WITH THE ROHS REQUIREMENT.
