USB TYPE C MALE CONNECTOR

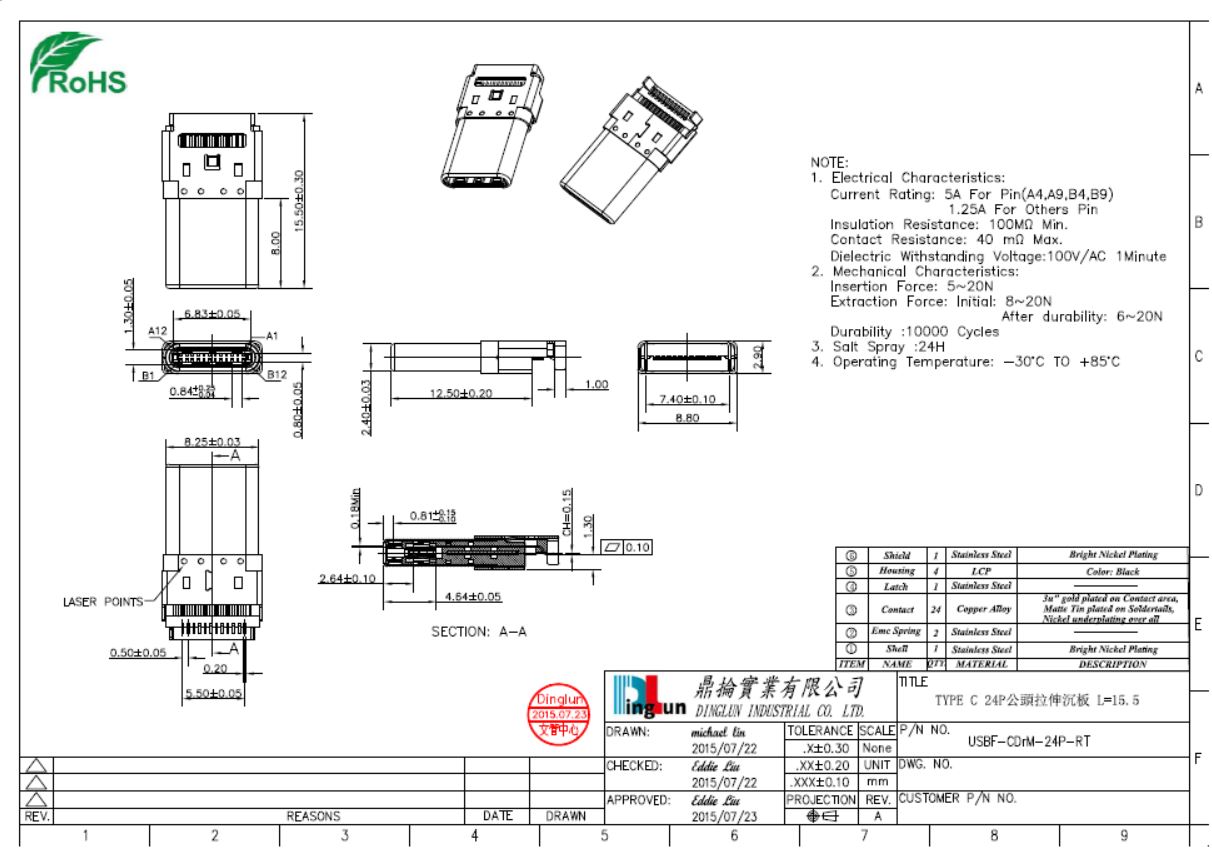

USB 3.1 TYPE C Male 24P Double Row SMD Sink L=15.5mm

USB 3.1 Stretch TYPE C Male 24P Double Row Sink L=15.5mm
Detail

NOTE:
1.Electrical Characteristics:
   Current Rating:5A For Pin(A4,A9,B4,B9)
                              1.25A For Others Pin
   Insulation Resistance:100MΩ Min.
   Contact Resistance:40mΩ Max.
   Dielectric Withstanding Voltage:100V/AC 1Minute
2.Mechanical Characteristics:
   Insertion Force:5~20N
   Extraction Force: Initial: 8~20N
                                  After durability:6~20N
   Durability:10000 Cycles
3.Salt Spray:24H
4.Operating Temperature:-30ºC TO +85ºC

USB 3.1 Stretch TYPE C Male 24P Double Row Sink L=15.5mm
Product packaging: roll
Product specification: L=15.5mm
Shell material: SUS304
Plastic material: LCP
Plug life: 10000 times
